| Prod Model: |
BL-DIY1619/1631 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
420mm |
| Max. Longitudinal Travel: |
400/700mm |
| Center Distance: |
500/800mm |
| Spindle Motor Power: |
0.55kw |
| Spindle Bore: |
28mm |
| Max. Cross Travel: |
120mm |
| Spindle Speed Steps: |
6 Setps |
| Spindle Speed Range: |
150~1250rpm |
| Metric Thread Range: |
0.75-6mm |
| Inch Thread Range: |
4-120tpi |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
Chuck |
Product Description

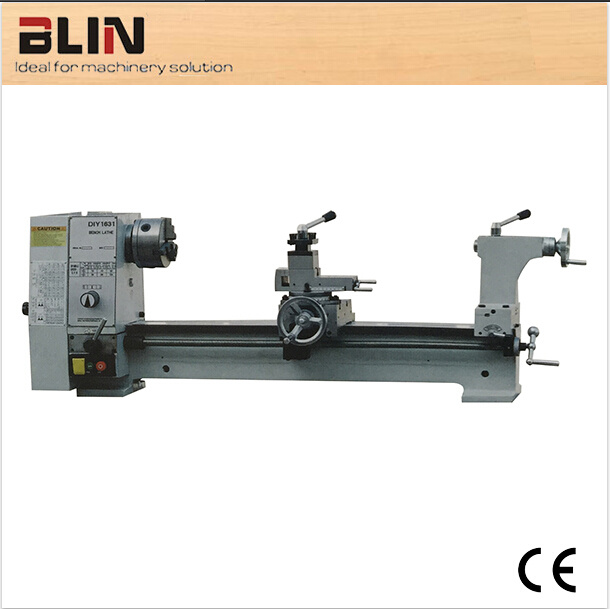

Precision Instrument Lathe(BL-DIY1619/1631)
Specification:
| Item | Unit | BL-DIY1619/1631 |
| Max. swing dia. Over bed | mm | Φ420 |
| Center distance | mm | 500/800 |
| Max. longitudinal travel | mm | 400/700 |
| Max. cross travel | mm | 120 |
| Spindle taper | / | MT4# |
| Spindle bore | mm | Φ28 |
| Spindle speed steps | / | 6 |
| Spindle speed range | rpm | 150~1250 |
| Metric thread range | mm | 0.75~6 |
| Inch thread range | TPI | 4~120 |
| Longitudinal auto-feeding | mm/r | 0.05~0.35 |
| Cross auto-feeding | mm/r | / |
| Motor power | kw | 0.55 |
| N.W./G.W | kg | 175/210,190/230 |
Standard Accessories:
Change gears
Tool post wrench
Allen wrench
3-jaw chuck and wrench
Optional Accessories:
Machine stand
Follow Rest
Steady rest
4-jaw chuck
Lathe tools
Face plate
Back plate
Leadscrew guard
Tool post guard
Chuck guard

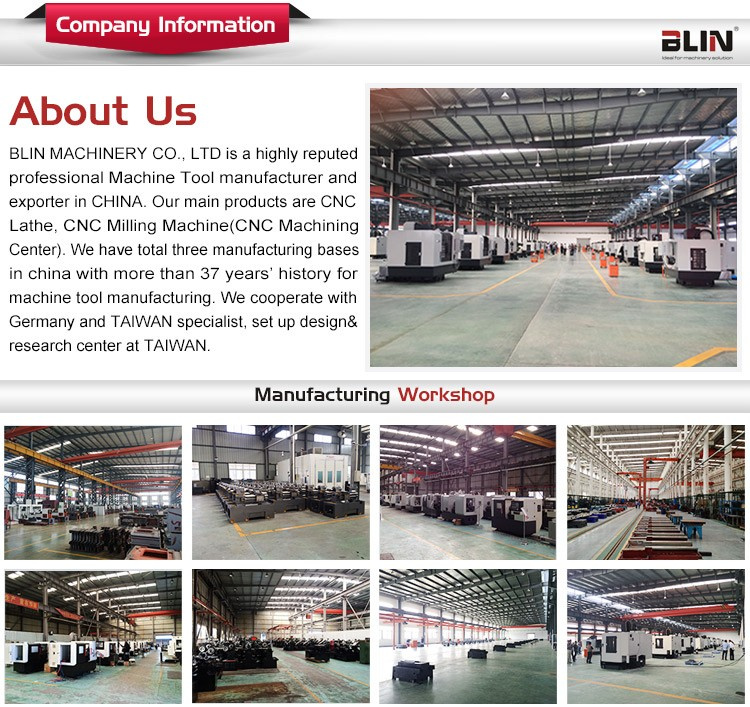

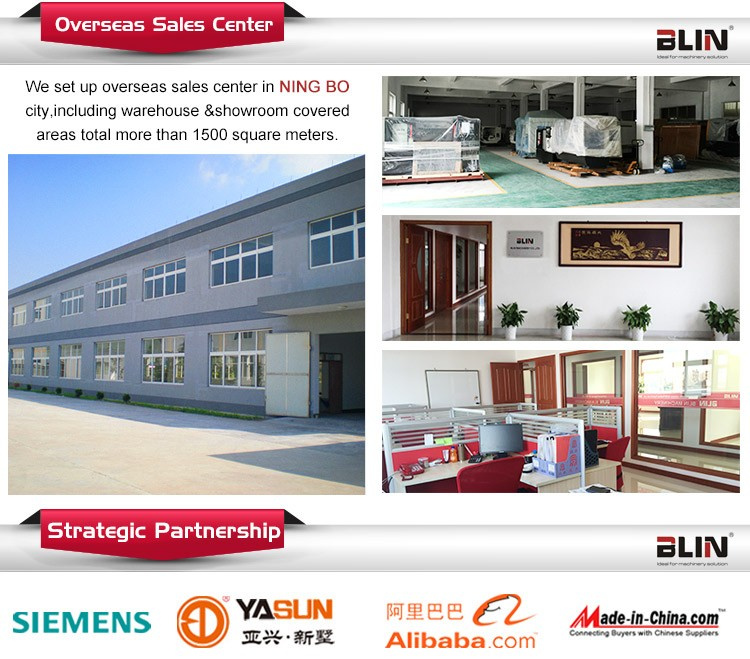

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.
Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
We look forward to hearing from you at any time!
