| Prod Model: |
Mdl-150c, Mdl-150d |
| Product Name: |
Crawler Anchor Drilling Rig Machine |
| Model: |
Mdl-150c,Mdl-150d |
| Drilling Diameter: |
150-250mm |
| Drilling Depth: |
130-170m |
| Rotator Output Torque: |
7500n.M |
| Rotator Travel: |
3400mm |
| Rotor Lift Force: |
70kn |
| Rotor Pressure: |
36kn |
| Input Power: |
Diesel 96kw,Electric 55+18.5kw |
| Weight: |
6500,6000kg |
Product Description

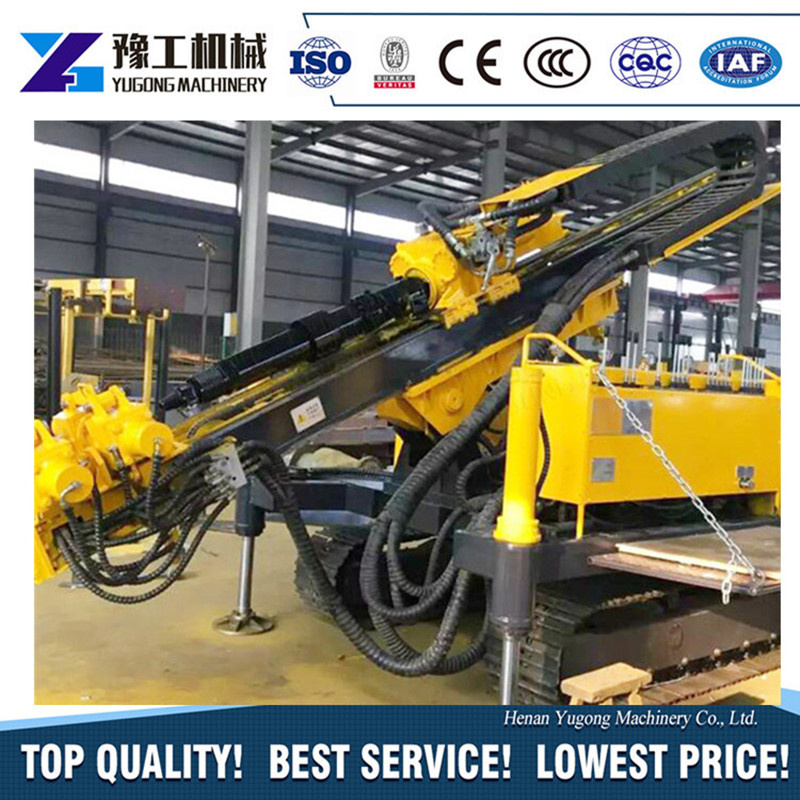

Crawler Anchor Drilling Rig Machine for Sale
Applications
Mainly applicable to the pit support in the city and control of building displacement, geological disaster management and other construction.Parameters | Model | MDL-150C | MDL-150D |
| Main Parameters |
| Drilling Diameter (mm) | Φ150-250 |
| Drilling Depth (m) | 130-170 |
| Final hole diameter (mm) | 75 |
| Drill pipe diameter / casing diameter (mm) | Φ73,Φ89,Φ102,Φ114 |
| Drilling angle | 0-90° |
| Rotator output speed (r/min) | 10/20/30/35/40/60/65/70/85/130/170 |
| Rotator output torque (N.m) | 7500 |
| Rotator travel (mm) | 3400 |
| Rotor lift force (KN) | 70 |
| Rotator lift speed (m/min) | 0-5 adjustable /7/23/30 |
| Rotor pressure (KN) | 36 |
| Rotator pressure rate 0-10 adjustable (m/min) | 0-10 adjustable /14/46/59 |
| Walking parameters |
| Walking mode | Crawler walking |
| Climbing angle | 25° |
| Crawler Grounding Pressure (Kpa) | 36 |
| Walking speed (km/h) | 20 |
| Input power |
| Input power | Diesel 96Kw | Electric 55+18.5kw |
| Dimensions (mm) | 5400x2100x2000 | 5400x2100x2000 |
| Weight (kg) | 6500 | 6000 |

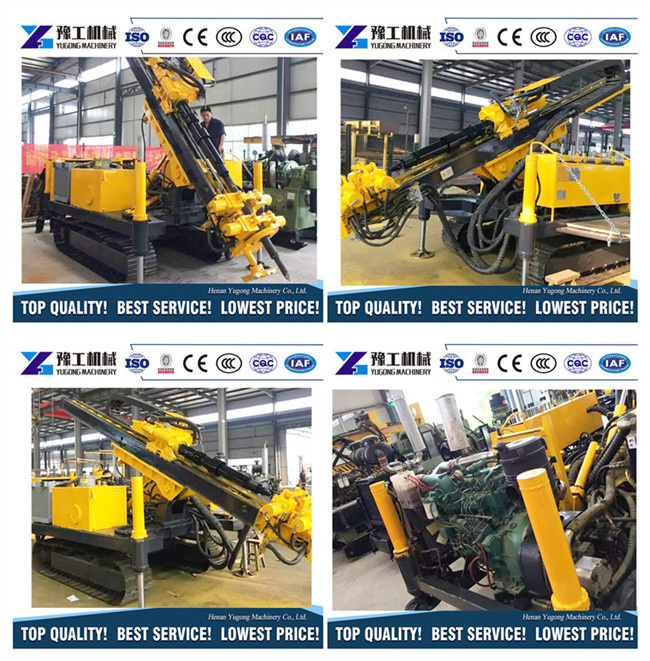

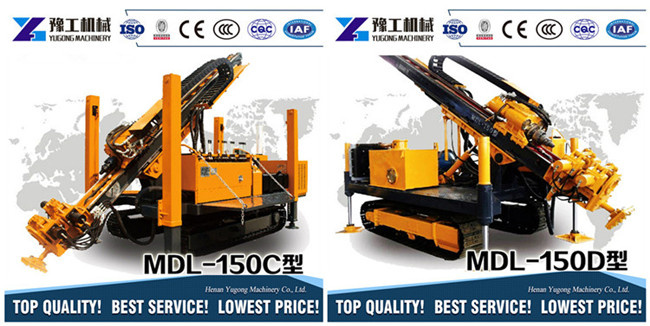

Product Display
Main features 1. Full hydraulic power head.
2. Widely used in Tunnel construction, water conservancy, railway and road side slope.
3. For anchoring hole, anchor rod.
4. Convenient adjust mechanism for upward and downward. The hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles.
5. Power components:3-phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig.
6. Centralized control bench: The control bench far from drilling rig can protect the safety of operator. The centralized control metal stick makes the controlling of drilling rig easy and convenience.
7. Compact hydraulic station:Radiator can reduce the hydraulic oil temperature effectively to keep hydraulic oil temperature under suitable working status. The electric control box can protect the electric motor to operate safely.Packing and Shipping
