North America,South America,Eastern Europe,Oceania,Mid East,Western Europe
Classification:
Hand Drill
Applications:
Building and Industrial
Customized:
Non-Customized
Condition:
New
Drill Brand:
Hisen
Application:
Reinforced Concrete
Length Of Barrel:
400mm, 450mm, 500mm
Welded:
Laser Welded
Thread:
Unc 1 1/4"-7
Quality Grade:
Professional Plus
Type:
Core Drill
Product Description
Real Factory == √ Strictly Quality Control == √ Good Price == √ High quality

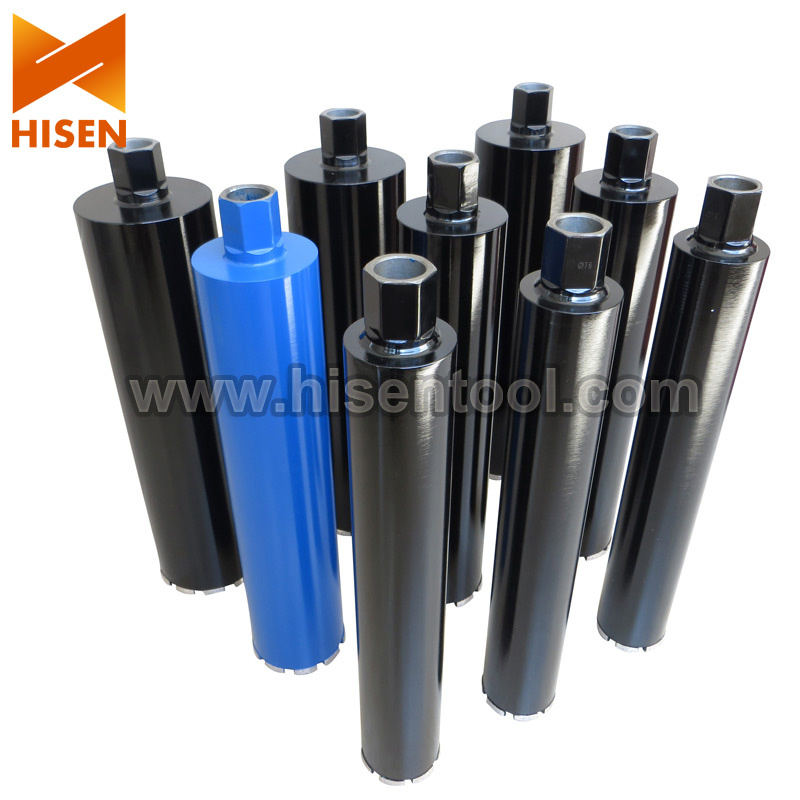

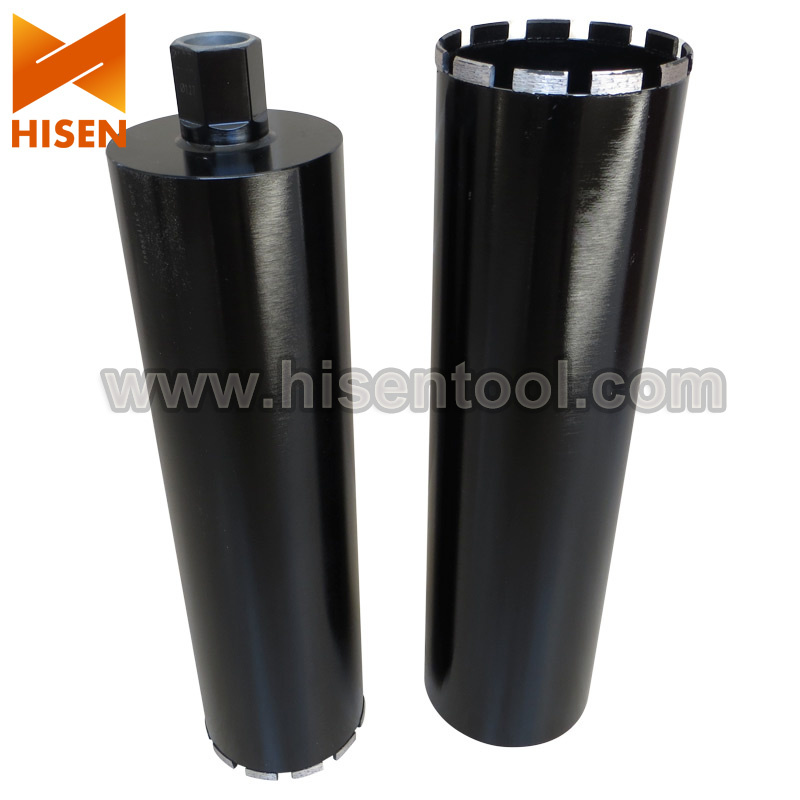

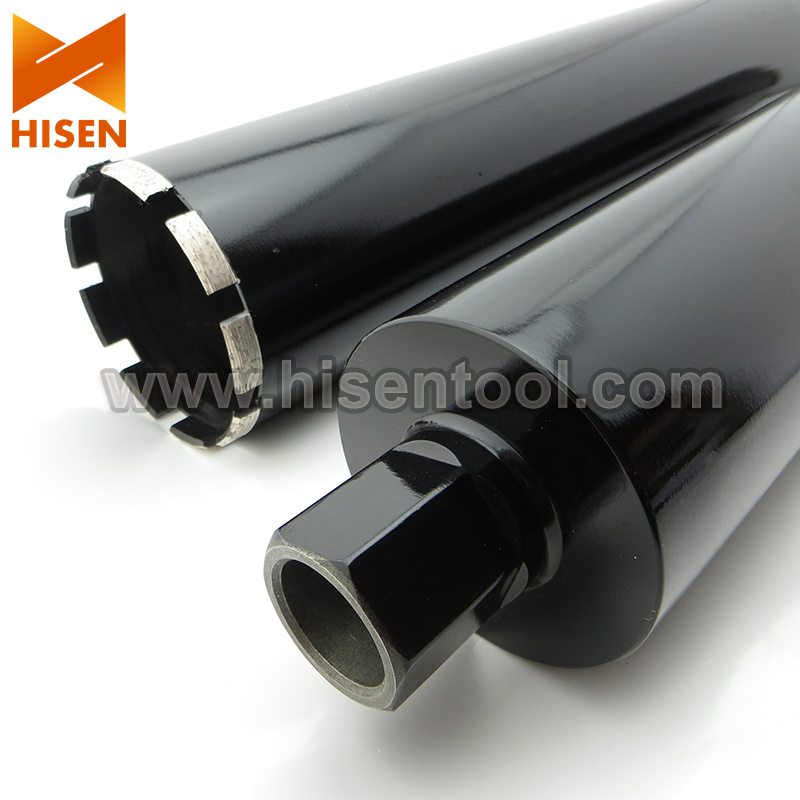

Our company specialized in producing laser welded diamond core drill bits, which are mainly used for wet cutting reinforced concrete, concrete, masonry walls. Laser welding not only gives the bit the ability to cut through reinforced concrete, but it also prevents segment loss. Crown segments are used on bits less than 2" diameter. Bits 2" diameter and above are segmented and laser welded.
Features: Fast cutting, long life Thread: 1 1/4-7 UNC female thread Welded: Leaser welding Type: Wet Drilling Segment type: flat segments, roof segments, turbo segments Other length and thread can be produced as required.
Item No.
Diameter mm
Segment Diamension Width*height mm
Valid Length mm
CBC16
16
2.5 *10
400/450
CBC18
18
2.5 *10
400/450
CBC20
20
2.5 *10
400/450
CBC22
22
2.5 *10
400/450
CBC24
24
2.5 *10
400/450
CBC25
25
2.5 *10
400/450
CBC26
26
2.5 *10
400/450
CBC28
28
2.5 *10
400/450
CBC30
30
2.5 *10
400/450
CBC32
32
3.0 *10
400/450
CBC35
35
3.0 *10
400/450
CBC38
38
3.0 *10
400/450
CBC40
40
3.0 *10
400/450
CBC42
42
3.0 *10
400/450
CBC45
45
3.0 *10
400/450
CBC51
51
3.5 *10
400/450
CBC56
56
3.5 *10
400/450
CBC63
63
3.5 *10
400/450
CBC66
66
3.5 *10
400/450
CBC71
71
3.5 *10
400/450
CBC76
76
3.5 *10
400/450
CBC83
83
3.5 *10
400/450
CBC89
89
3.5 *10
400/450
CBC102
102
3.5 *10
400/450
CBC108
108
3.5 *10
400/450
CBC112
112
3.5 *10
400/450
CBC120
120
3.5 *10
400/450
CBC122
122
3.5 *10
400/450
CBC127
127
3.5 *10
400/450
CBC132
132
3.5 *10
400/450
CBC140
140
4.0 *10
400/450
CBC152
152
4.0 *10
400/450
CBC162
162
4.0 *10
400/450
CBC178
178
4.0 *10
400/450
CBC182
182
4.0 *10
400/450
CBC200
200
4.0 *10
400/450
CBC228
228
4.5 *10
400/450
CBC254
254
4.5 *10
400/450
CBC300
300
5.0 *10
400/450
CBC356
356
5.0 *10
400/450
CBC400
400
5.0 *10
400/450
CBC500
500
5.5 *10
400/450
Founded in 1991, HISEN DIAMOND TOOL Co., Ltd is located in Quanzhou City, Fujian province, endowed with a convenient transportation. We are a famous privately operated enterprise specialized in researching and manufacturing diamond tools for stone industry & construction industry. We have established a strict quality control system. Quality control goes thoroughly from the purchase of raw material, receiving inspection, to production and store.
Over 20 years' development, we have set a long-term business relationship with major distributors in Europe, America, Canada, Mexico, Russia, UAE, Iran, Lebanon, Columbia, India Egypt, Malysia etc. Our main products are as follows.
1. Diamond wire saw for Reinforced concrete, diamond wire for stone
2. Diamond blades 300 mm - 1600 mm
3. Diamond Polishing Pads
4. Abrasive brush & antique brush, abrasive filament (New & hot products )
5. Frankfurt abrasive, fickert abrasive
6. Diamond core drill bits
7. Diamond cup wheel, Floor tools
At any time, we are working for meeting our customers' satisfaction, offering all customers the most efficient and best service. Welcome you to join HISEN worldwide business patterns and establish long-term friendly relationship.
