| Prod Model: |
SUDS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Diamond |
| Color: |
Yellow, Grey, Silver |
| Bond: |
Soft Bond to Hard Bond |
| Support: |
OEM |
| Application: |
Stone, Construction Materials |
| Usage: |
Cutting&Drilling&Grinding |
Product Description
Produce description:

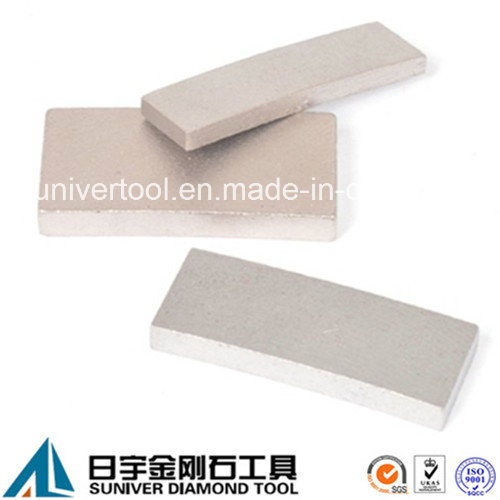

ITEM NAME: Diamond segments for re-tipUsage: Sawing&Drilling&Grinding.
Diamond segment dimension: As request.
Brand: SUNIVER
Application: Stone and construction material.
Machine: Bridge saw, stone saw, multi-saw, wall saw, floor saw, core drill.
Material:Diamond, alloy powder
Support: OEM
Use for: Wet
Export Area:Global
Welding Method:High-Frequency& Laser welding. Product features:1. Cutting speed really fast and smooth.
2. Long cutting life and stable performance.
3. Segment is very sharp, high efficiency.
4. Through the validation tested scientific formula.
5. Advanced production process for sintering.
6. Using high quality raw materials, imported cobalt powder and bronze alloy, and high-quality diamond single crystals.
7. Strict product quality inspection processes.

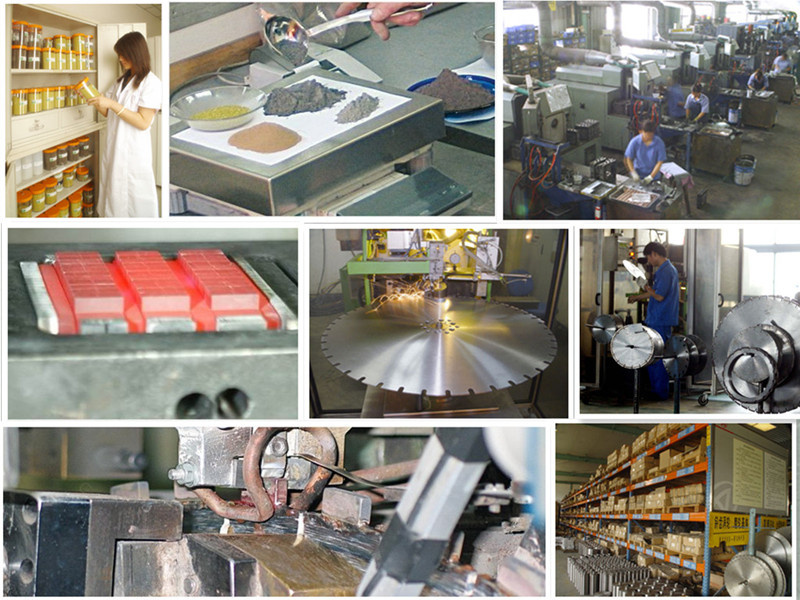

Production:

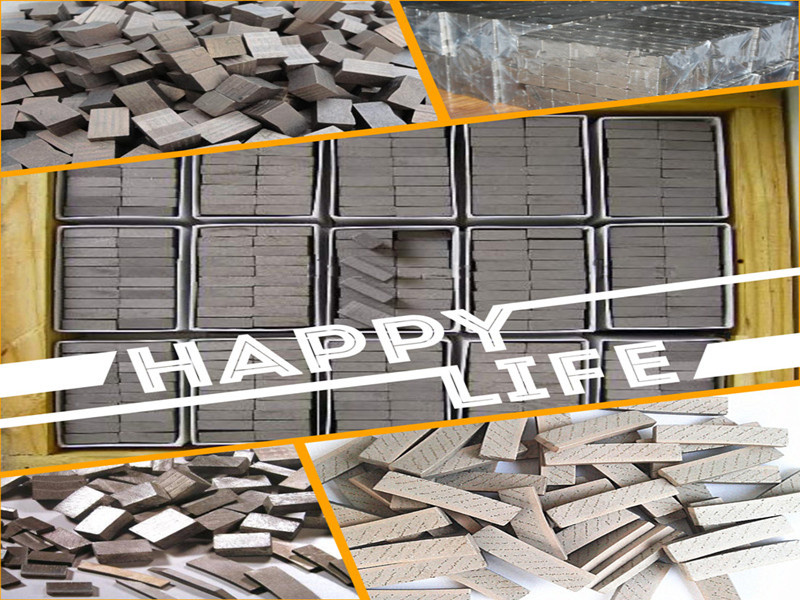

Packing:
Shipping:
| Diamond segments | UNIT: mm |
| Item Numder | Diameter | Segment Dimension
L X W X H | Core Thickness | Segment Number | Application |
| 250 | 40 x 2.5 x 10 | 1.8/2.0 | 18 | For trimming and Slabbing Granite |
| 300 | 40 x 3.0 x 10/15 | 1.8/2.2/2.4 | 21 |
| 350 | 40 x 3.0 x 10/15 | 1.8/2.2/2.4 | 24 |
| 400 | 40 x 3.6 x 10/15 | 2.2/2.6/2.8 | 28 |
| 450 | 40 x 4.0 x 10/15 | 2.5/2.8/3.3 | 32 |
| 500 | 40 x 4.2 x 10/15 | 3.0/3.3 | 36 |
| 550 | 40 x 4.2 x 10/15 | 2.8/3.5 |
|
| 600 | 40 x 4.6 x 10/15 | 2.8/3.5 | 42 |
| 700 | 40 x 5.0 x 10/15 | 3.6/4.0 |
|
| 800 | 40 x 6.0 x 10/15 | 4.5 | 50 |
(HIGH-FREQUENCY WELDED, suitable for cutting granite)
| UNIT: mm |
| Item Numder | Diameter | Segment Dimension
L X W X H | Core Thickness | Segment Number | Application |
| 900 | 24 x 6.6/6.2 x 10/15 | 5.0 | 64 | For Cutting Granite Block |
| 1000 | 24 x 7.4/6.8 x 10/12/15 | 5.0 | 70/72 |
| 1100 | 24 x 7.4/6.8 x 10/12/15 | 5.5 | 74 |
| 1200 | 24 x 7.5/7.0 x 10/12/15 | 5.5 | 80 |
| 1300 | 24 x 7.6/7.0 x 10/12/15 | 6.0 | 88 |
| 1350 | 25 x 8.4/7.7 x 12/15/20 | 6.0 | 88 |
| 1400 | 24 x 9.0/8.4 x 10/12/15 | 6.5 | 96 |
| 1600 | 24 x 9.2/8.6 x 12/15/20 | 6.5 | 104/108 |
| 1800 | 24 x 9.5/9.0 x 12/15/20 | 7.0 | 120 |
| | 2000 | 24 x 10.6/9.6 x 15/20 | 8.0 | 128 |
| 2200 | 24 x 11.5/10.5 x 15/20 | 8.5 | 132/136 |
| 2500 | 24 x 12/11.5/11 x 20 | 9.5 | 140 |
| 2700 | 24 x 12/11.5/11 x 20 | 10 | 140 |
| 3000 | 24 x 12.5/12/11.5 x 20 | 10 | 160 |
| 3500 | 24 x 13/12.3/11.1 x 20 | 10 | 180
|
QUANZHOU WANTZEL DIAMOND TOOL Co., Ltd is a professional diamond tool supplier which produce professional quality diamond tools for the stone industry and construction industry. We have long-standing relationships with a lot of professional users overseas and continually develop and source the best products with reasonable prices according to different requests.
Our Products:
1. Resin polishing pads and Metal grinding shoes for concrete floor.
2. Laser weld saw blades for reinforced concrete, asphalt etc.
1) For hand held saw.
2) For walk behind saw.
3) For wall saw.
3. Laser weld core drills fro reinforced concrete.
4. Diamond saw blades for cutting stones.
5. Diamond core drills fro stones.
6. Diamond wires for stone quarry, stone block, reinforced concrete.
7. Diamond grinding/polishing tools for stone.
8. Diamond segments for re-tip.
Our Philosophy:
1) Customer-Oriented
2) Professionally meeting your needs
3) Competence due to long-time experience
4) Long-term customer relationships
Our Promise:
The best quality is guaranteed for customer satisfaction.
