| Prod Model: |
105 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Thread |
| Valve Plug: |
PTFE |
| Material: |
PTFE |
| Open Manner: |
Pneumatic |
| Size: |
1/4"-4" |
| Hot Or Cold: |
Hot or Cold |

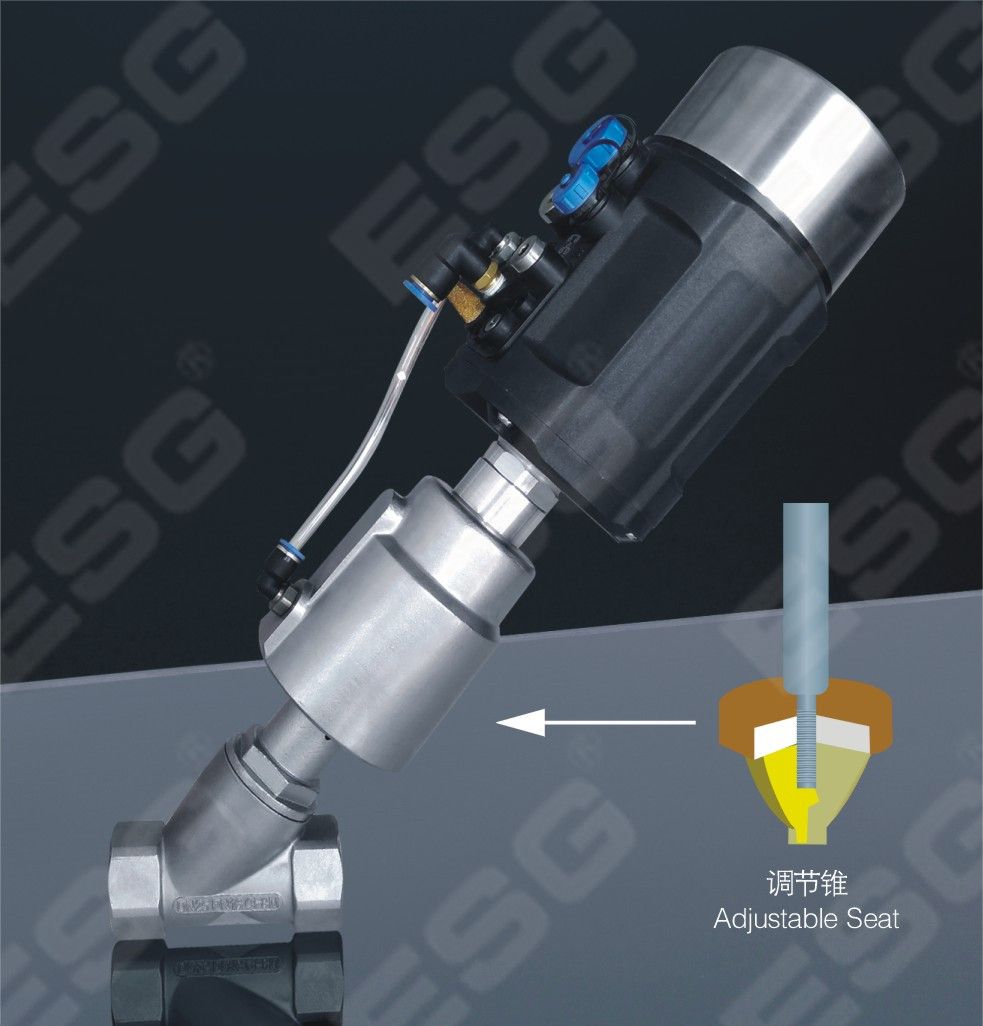

Product Description
Founded in 2001, we are specialized in design & manufacture stainless steel valve for industrial fluid control system. Our products include pneumatic angle seat valve, shuttle valve, ball valve, butterfly valve, pressure reducing valve, steam trap, check valve and strainer, which are widely exported to USA, Europe, Asia, Africa, in total 62 countries.
Techincal data:| Size | DN10 ~ DN100 |
| Connection | Threaded,Welded,Flanged,Tri-clamp |
| Fluid Temperature | -10ºC - +180ºC |
| Ambient Temperature | -10ºC - +50ºC
(Cutomizeation for high temperture) |
| Protection | IP65 |
| Fluid Pressure | ≤1.0MPa,p≤0.15MPa |
| Air Pressure | 0.3-0.7MPa |
| Val Set Signal | 0/4-20mA or 0~5/10v |
| Control Pressure | 24vcd+10% |
| Air Quality Requirements | Clear and dry air,Gas quality accord with ISO8573-1 |
| Maximum particle diameter | 40μm |
| Maximum density of solid particles | 10mg/m3 |
| Largest oil content | 25mg/m3 |
| Power consumption | <5w |
| Set the signal input impedance | 24Ω,when 0/4-20mA signal,
21 kΩ,when 5/10v signal, |
| Analog output signal | 0/4-20mA signal maximum load 560Ω,
5/10v signal when the maximum current of 10mA |
Applications:
1.EPS(Expanded Polystyrene) molding machines 2.Dyeing machine , Textile Additive Mixing
3.Food& Beverage machine (Filling machine for drinks, bear,etc.)
4.Gas Generator, Air separation machine
5.Medical equipment
6.Chemical industry
7.Disinfection , Hospital Sterilizer
8.Water disposal
9.Rubber manufacturing machinery
10.CIP
11.Semiconductor
12.Shipbuilding equipment
