Tri-Clamp Ends Angle Seat Valve

Tri-Clamp Ends Angle Seat Valve
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 100 series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Thread
Valve Plug: PTFE
Material: PTFE
Open Manner: Pneumatic
Size: 1/4"-4"
Hot Or Cold: Hot or Cold

Product Description

Founded in 2001, we are specialized in design & manufacture stainless steel valve for industrial fluid control system. Our products include pneumatic angle seat valve, shuttle valve, ball valve, butterfly valve, pressure reducing valve, steam trap, check valve and strainer, which are widely exported to USA, Europe, Asia, Africa, in total 62 countries.

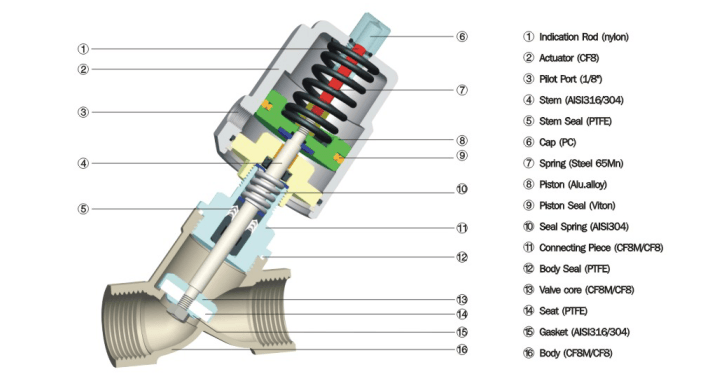

Techincal data:
Fluid PressureMax. 1.6MPa (16 bar, 232Psi)
Control Pressure0.3 - 0.8MPa
Applicable FluidNeutral gas, air
Body MaterialCF8M (AISI 316) or CF8 (AISI304)
SeatTeflon (PTFE)
ActuatorCF8 (AISI304)
Actuator Size40mm, 50mm, 63mm, 90mm, 125mm
Applicable FluidWater, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye
Max. Viscosity600 mm2/s
Fluid Temperature-10 - +180ºC,25 - +220ºC
Ambient Temperature0 - +80ºC
Control TypeSingle acting (NO/NC), Double acting

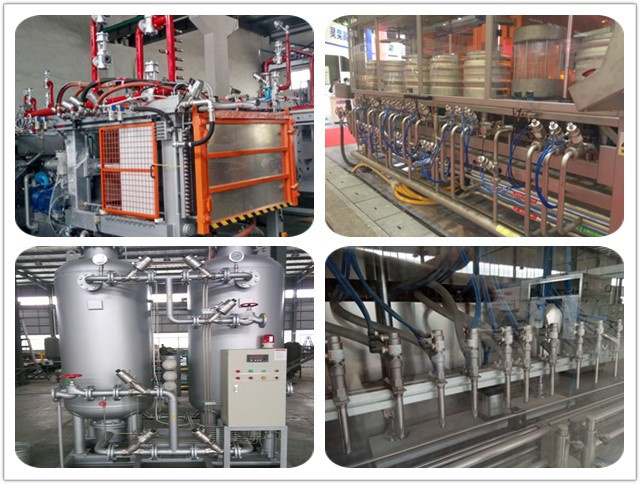

Applications:
1.EPS(Expanded Polystyrene) molding machines
2.Dyeing machine , Textile Additive Mixing
3.Food& Beverage machine (Filling machine for drinks, bear,etc.)
4.Gas Generator, Air separation machine
5.Medical equipment
6.Chemical industry
7.Disinfection , Hospital Sterilizer
8.Water disposal
9.Rubber manufacturing machinery
10.CIP
11.Semiconductor
12.Shipbuilding equipment
Advantages:
1.Easy installation, maintenance-free, super long life;
2.Reliable operation, self-adjusting stem seals, cylinder can be 360° Rotated free;
3.Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;
4.Optical position indication, low control air consumption.


OUR PARTNERS:

FAQ


Q. what is your payment term?
A:  T/T PREPAID OR L/C at sight.

Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?
A: All of our products are made under ISO9001, and we have got CE,CU-TR ctrtificates.

Q: Can I get samples from your factory?
A: Yes, Samples can be provided.

Q:Do you have a warehouse overseas?
A: Yes, we have warehouse in US, Europe.

CONTACT US:





Founded in 2001, we are specialized in design & manufacture stainless steel valve for industrial fluid control system. Our products include pneumatic angle seat valve, shuttle valve, ball valve, butterfly valve, pressure reducing valve, steam trap, check valve and strainer, which are widely exported to USA, Europe, Asia, Africa, in total 62 countries. In fact, we have become supplier for GM, Xylem, EMERSON and Sumsung, TSUDAKOMA for a long term and good relationship.

As a fully integrated company offering R&D and manufacturing services, all of our products are made under ISO 9001: 2000-certified processes. Our factory covers 16, 000 square meters, employs over 200 skilled workers and holds 26 advanced CNC lathes. We have also built a strict QC team equipped with: CMM from Switzerland, German Spectrometer, and gauges from Japan and USA. This way, we can ensure consistent quality and fast lead time on all the orders. With advanced management system and complete quality assurance system, we have got certificates such as CE, CU-TR etc...

We aim at providing one-stop service and offering professional guidance for clients all over the world. We believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
