| Prod Model: |
ss2254 |
| Feature: |
Durable |
| Product Name: |
Welded Wire Mesh |
| Width: |
0.5-4m |
| Length: |
20-30m |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Surface Treatment: |
Galvanized |
| Application: |
Sieving Mesh |
| Color: |
Silver |
| Type: |
Welded Mesh |
| Certification: |
BV |
| Condition: |
New |
| Mesh Size: |
1/2inch ,1inch ,2inch |
| Weave Technique: |
Welded |
Product Description

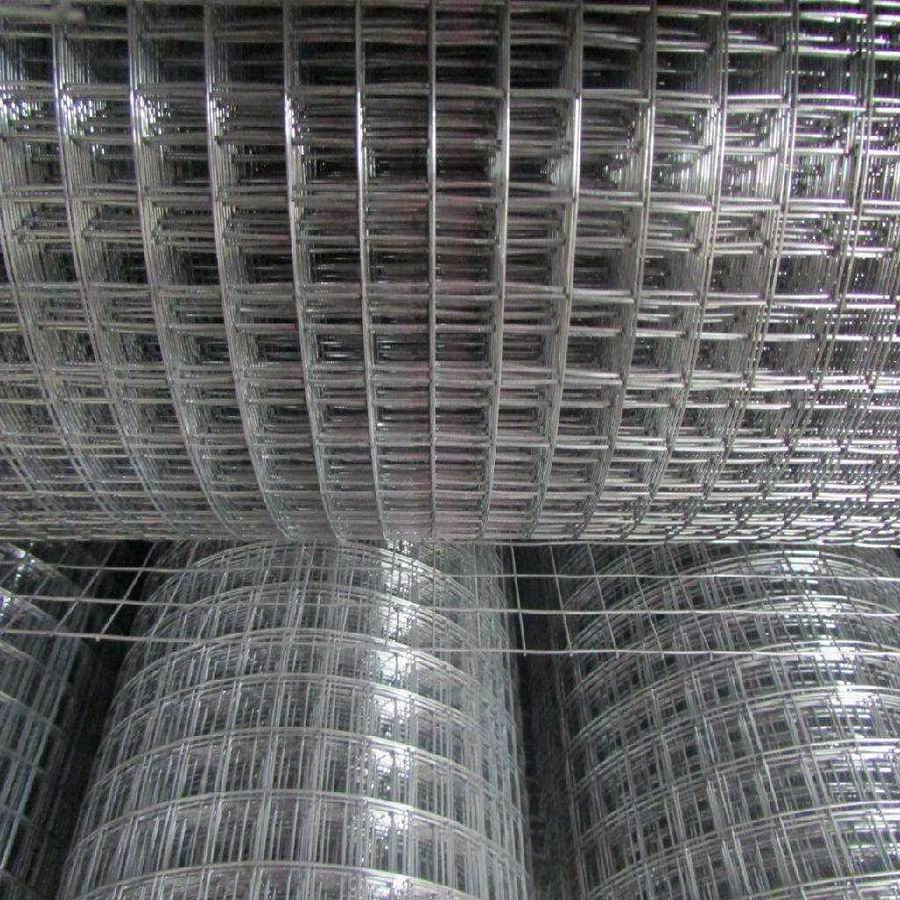

welded wire mesh
Can be supplied in rolls or panels or pieces
| Specification List of Welded Wire Mesh: | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 | | 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 | | 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 | | 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, | | 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 | | 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 | | 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 | | 1" x 2" | 25.4mm x 50.8mm | 14,15,16 | | 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 | Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| Galvanized Fencing Mesh: | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm | | 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm | | 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm | | 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm | Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| PVC Coated Welded Mesh: | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 | | 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 | | 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 | Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
|
JuYun Wire Mesh Products Co. Ltd. located in "The Hometown of Wire Mesh of China", We engage in production and export of various metal wires and wire meshes and Machine series...Because we pay much attention to continued effort in better quality products, our quality management system has been approved by ISOQAR to the standard of ISO9001: 2000 Management System Certification. We can offer not only reliable products but also services at competitive prices.
Insisting on the technique innovation, scientific and honest management, our factory emphasizes on introducing into the advanced production and inspection, thereby making sure of the quality and earning good reputation. So far, our products have been highly appreciated in Europe, Asia, Africa, and other regions.
Our main product, black wire, black annealed wire, hard drawn wire, galvanized wire, stainless steel wire, barbed wire, razor barbed wire, welded wire mesh, chain link fence, wire mesh fence, crimped wire mesh, hexagonal wire mesh, stainless steel wire mesh, expanded metal mesh, perforated metal mesh, gabion basket, filter mesh and so on.
Welcome to inquiry.
