| Prod Model: |
ss451 |
| Certification: |
SGS |
| Feature: |
Easily Assembled, Durable |
| Wire Diameter: |
2.7mm, 3.5mm |
| Product Name: |
Gabion Basket |
| Material: |
Low Carbon Steel Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Hexagonal |
| Usage: |
Military Applications |
| Technics: |
Woven |
| Surface Treatment: |
Galvanized |
| Size: |
1m x 1m x 1m |
| Aperture: |
80*100mm |
Product Description

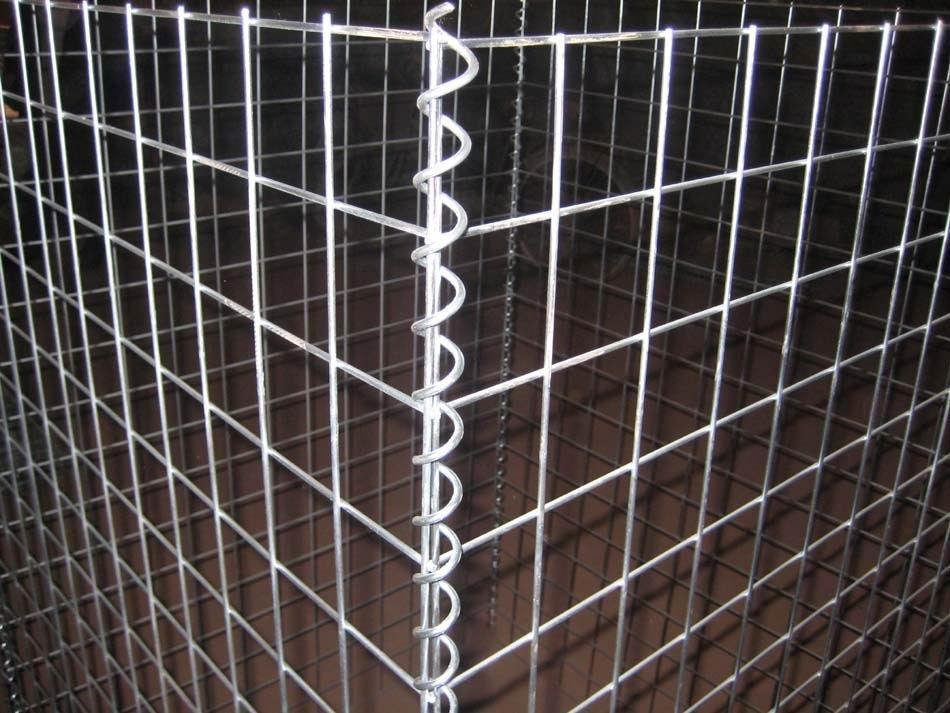

Gabion basket
1.materials: hot dipped galvanized wire and PVC coated galvanized wire , PVC color : darkgree, gray ,black
2.mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
4.mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm
5.Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight
6.Zinc coating : 220-290g/m2
7.size : 2x1x1m,2x1x0.5m,6x2x0.3m,as your request
8Uses:
(1) it can control and guide river and flood.
(2) Spillway dam.
(3) Rockfalls protection
(4) Erosion-preventing.
(5) Protecting bridge (6) solid structure.
(6) waterfront-defending project.
(7) Harbor project.
(8) Retaining wall. (10) protecting road.
Opening
(mm) | Wire Diameter
(mm) | Wire Diameter(PVC Coated)
Inner/outside(mm) | Strands |
|
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Length | Width | Height | Diaphragm | Volume | Tolerance |
| 2.0m | 1.0m | 0.3m | 1 | 0.6m3 | |
| 3.0m | 1.0m | 0.3m | 2 | 0.9m3 | |
| 4.0m | 1.0m | 0.3m | 3 | 0.2m3 | |
| 2.0m | 1.0m | 0.5m | 1 | 1.0m3 | L+/-3% |
| 3.0m | 1.0m | 0.5m | 2 | 1.5m3 | W+/-5% |
| 4.0m | 1.0m | 0.5m | 3 | 2.0m3 | H+/-5% |
| 1.0m | 1.0m | 0.5m | 0 | 1.0m3 | |
| 1.0m | 1.0m | 1.0m | 0 | 1.5m3 | |
| 2.0m | 1.0m | 1.0m | 1 | 2.0m3 | |
| 3.0m | 1.0m | 1.0m | 2 | 3.0m3 | |
| 4.0m | 1.0m | 1.0m | 3 | 4.0m3 | |
JuYun Wire Mesh Products Co. Ltd. located in "The Hometown of Wire Mesh of China", We engage in production and export of various metal wires and wire meshes and Machine series...Because we pay much attention to continued effort in better quality products, our quality management system has been approved by ISOQAR to the standard of ISO9001: 2000 Management System Certification. We can offer not only reliable products but also services at competitive prices.
Insisting on the technique innovation, scientific and honest management, our factory emphasizes on introducing into the advanced production and inspection, thereby making sure of the quality and earning good reputation. So far, our products have been highly appreciated in Europe, Asia, Africa, and other regions.
Our main product, black wire, black annealed wire, hard drawn wire, galvanized wire, stainless steel wire, barbed wire, razor barbed wire, welded wire mesh, chain link fence, wire mesh fence, crimped wire mesh, hexagonal wire mesh, stainless steel wire mesh, expanded metal mesh, perforated metal mesh, gabion basket, filter mesh and so on.
Welcome to inquiry.
