Prod Model: |
Q1&Q-SUB |
Type: |
10 Inch PRO Audio Speaker |
Connectors: |
2xspeakon Connectors (Nl4) |
Noise: |
<102dB |
Hi-Fi: |
Hi-Fi |
Operation Mode: |
Wire / Remote Control |
Speaker System: |
Optional Combination |
Speaker Material: |
Wood |
Application: |
Commercial |
Certification: |
FCC |
Monitor: |
LCD Screen |
THD: |
<0.005% |
Product Description

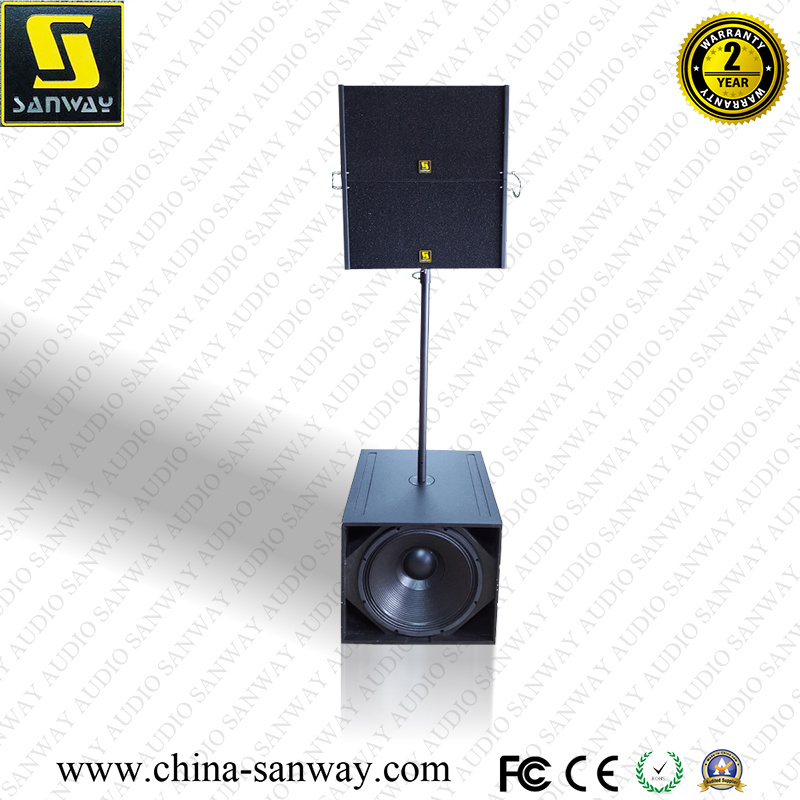

Q1&Q-Sub Compact Active Line Array System
Q1&Q-SUB is a powered three way line array system, mounted Sanway customized D3 3CH DSP Class D active amplifeir module in A-SUB cabinet box, and use the 1800W D3 Channel to driver the Q-SUB, 800W channel to driver one top Q1, another 800W channel driver another top Q1.
Q1 is a passive cabinet box with interal crossover, consiste of teo 10" neodymium driver and one 3" compression driver, which is durable and working high efficiency. The perfect disperssion pattern allows the Q1 to construct vertial columns which produce a curved coherent wave front.
We are using a 5" voice coil neodymium driver in the Q-SUB cabinet box, with RMS1000W powerful output for puncy subwoofer reinforcement. This system is sutianle for small size live performance, live speech and some high class conference room.
Features
1, D3 active amplifier module: 1800W+700W+500W@4ohms, 1500W+500W+500W@8ohms
2. All transducer with neodymium magnet
3. Smooth frequency and phase response
4. High-strength plywood enclosure

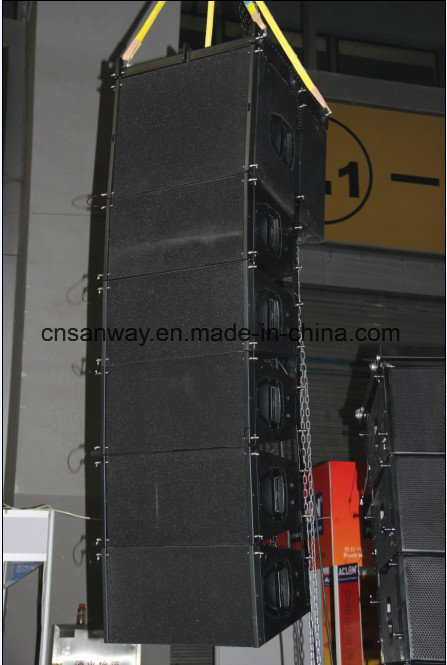

5. Fast installation rigging system
6. Extremely high SPL and Volume ration
7. More choice for vertical coverage angle
Specification
Specification

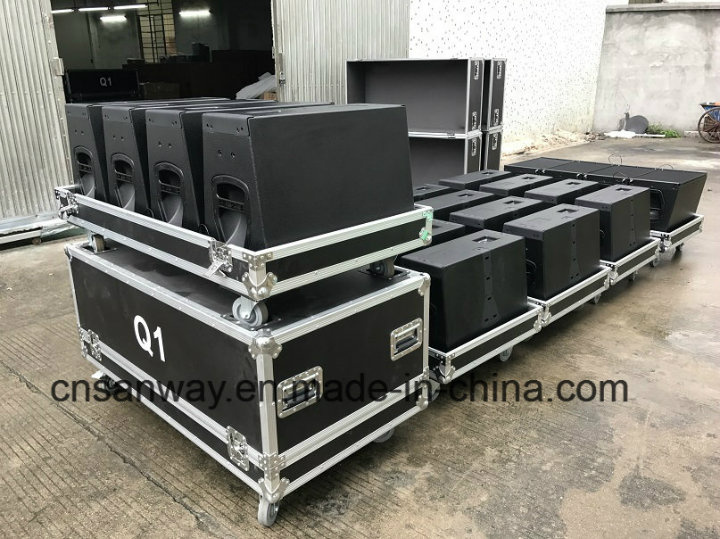

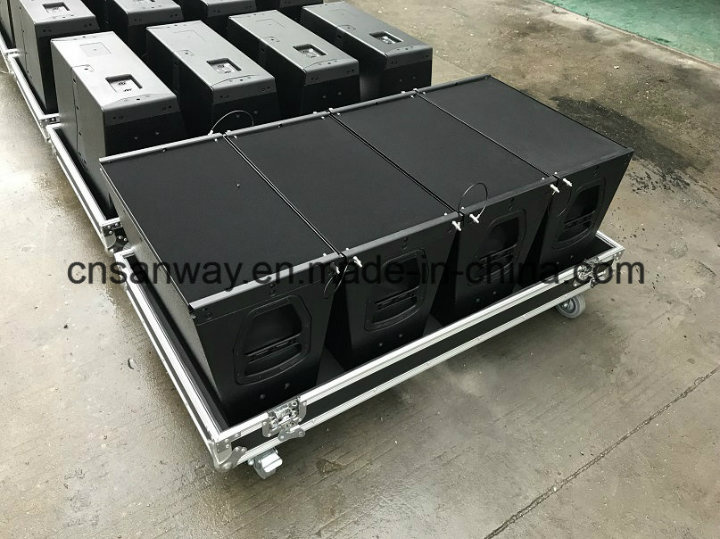

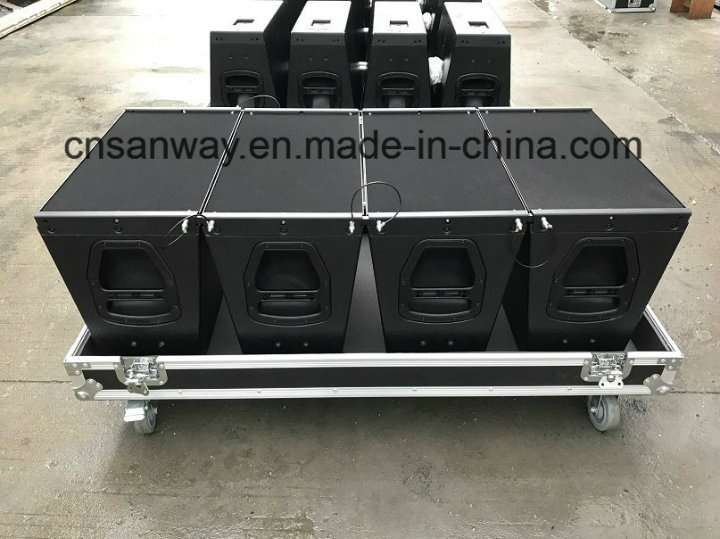

Q1 Dual 10" Passive Top Line Array Speaker
Frequency response (-3dB) | 60Hz-17KHz |
Components | LF2x10'',Neodymium Drivers HF1x3'', Neodymium Drivers |
Nominal Impedance | 8ohms |
System sensitivity (1w@1m) | 106dB SPL |
Maximum SPL | 137dB |
Power handling | 800W |
Peak power | 1600W |
HxV | 75°x150° |
Connectors | 2xSpeakon| connectors (NL 4) |
Enclosure material | 15mm plywood |
Finish | Textured black paint |
Grille | Black perforated steel |
Dimensions (W x D x H) | 580x308x410 mm |
Net Weight(Kg) | 22 |
Q-SUB Single 18" Neodymium Powered Line Array Subwoofer
Frequency response (-3dB) | 40Hz-200Hz |
Components | LF1x18" woofer(Neodymium Drivers) |
System sensitivity (1w@1m) | 106dB SPL |
Maximum SPL | 133dB |
Power handling | 800W |
Peak power | 1600W |
Nominal Impedance | 8ohms |
Connectors | 2xSpeakon connectors (NL 4) |

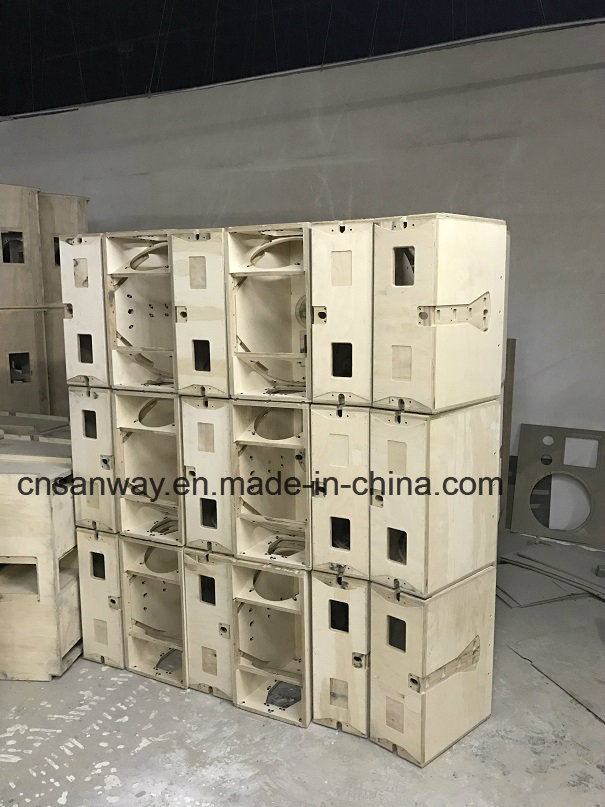

Enclosure | 15mm plywood, compact reflected low frequency |
Finish | Textured black paint |
Grille | Black perforated steel |
Dimensions (W x D x H) | 580x493x668 mm |
Net weight(Kg) | Active: 48 |
