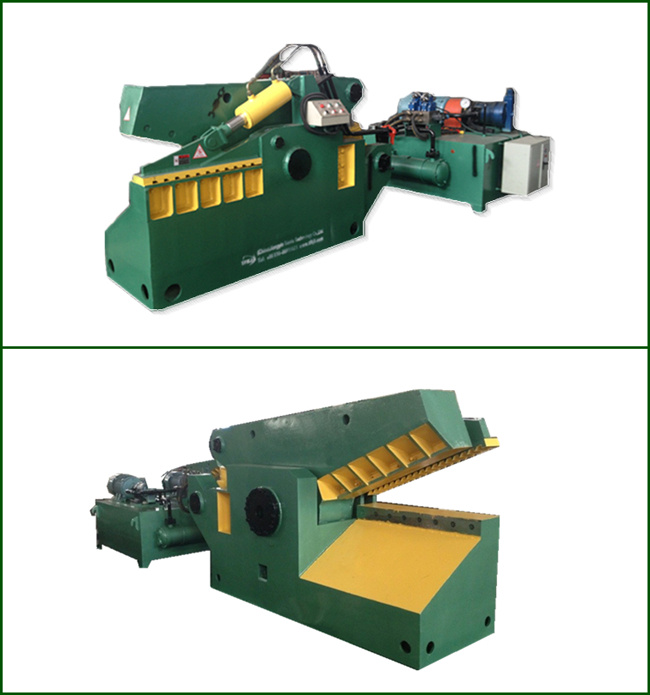

Item:Q43-2000 copper machine defored steel bar cutter
Q43 Series of hydraulic shearing machine is applied in recycling companies, automobile dismantling plants,smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.
2. Technical Parameters
Model
Shearing force (Ton)
Blade length (mm)
Max cutting size (mm)
Shearing frequency (time/min)
Motor (kw)
Q43-630
63
400/600
30*30/¢35
8-12
7.5
Q43-1000
100
600
35*35/¢40
8-12
11
Q43-1200
120
600
40*40/¢45
8-12
15
Q43-1600
160
700
45*45/¢50
6-10
18.5
Q43-2000
200
800
55*55/¢63
6-10
22
Q43-2500
250
1000
63*63/¢70
6-8
30
Q43-3150
315
1200
70*70/¢80
6-8
37
Q43-4000
400
1500
80*80/¢90
6-8
44
3. Main Features
1) Adopting hydraulic drive, Q43 series feature simple operation & easy maintenance,it's safe & reliable. 2) Shear force 9 grades from 63 to 500 tons; blade length: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm 3) No foot bolts required 4) We are factory with strict quality control. 5) Safe and easy operation under Use's Manual
Detailed Machine Parts:
1. Name: Blade Material: imported material blades we use imported material blades on the shear machine. It is more hard and durable.
2. Name: Flange Flange connected stronger and less oil leak.
3. Name:Water Cooler every machine will equip a water cooler. It can reduce the oil temperature, avoid too high oil temperature.

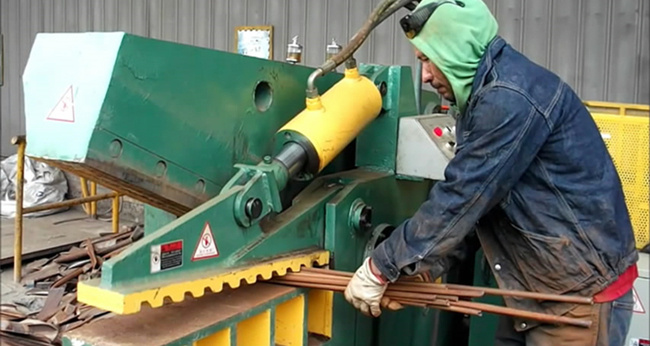

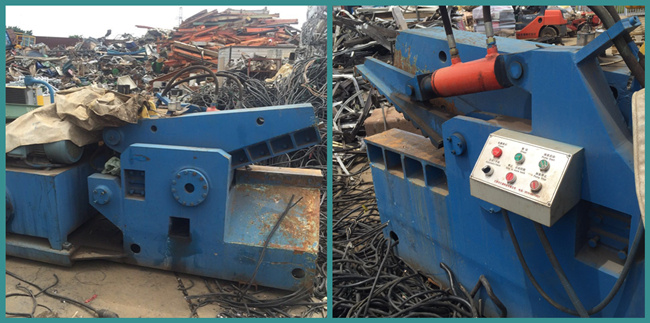

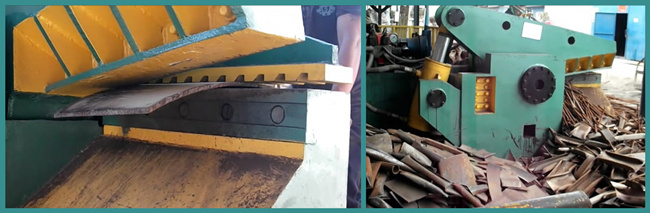

Successful Cases
Youtube Link: (welcome to visit our youtube channel)
Tianfu Technology was established in 2008 with strong designing team and professional team. We can provide you professional advice and quality machines.
Our Team
Quality First, Service Best! We are young, passionate, united, and serve our customers like family.
Our Factory
Lifelong maintenance Technicians available to abroad, Complete parts & tools &manual book sent with machine.
Certifications
ISO, CE, SGS, PATENTS FOR EVERY MACHINE
FAQ
1) Are you a factory or trade company? We are manufacturer with own factory for 15 years, export proportion 70~80%.
2) How can i trust your company? a. With professional design and sales team, we can serve you the perfect solution with lowest cost. b. Assessed by third party, national patents for all equipment, also CE, ISO. c. Agents in RU, UKR,MYS,PH; Users around the world. d. Welcome to inspect anytime. We are near to Shanghai airport. e. About the machine, we do much better on: Wear plates, seals, structure design, pressure head.
3) How about the test running & installation? Before delivery, we finish the test over 3times. If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
4) Any warranty? Under the proper usage, one year for whole machine except the wear parts.
5) Is your price competitive? Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
