| Prod Model: |
QDL65B-90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DTH Drill Machine: |
to Form a Complete Set of Diamond Wire Sawing |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
Product Description
Product Details:

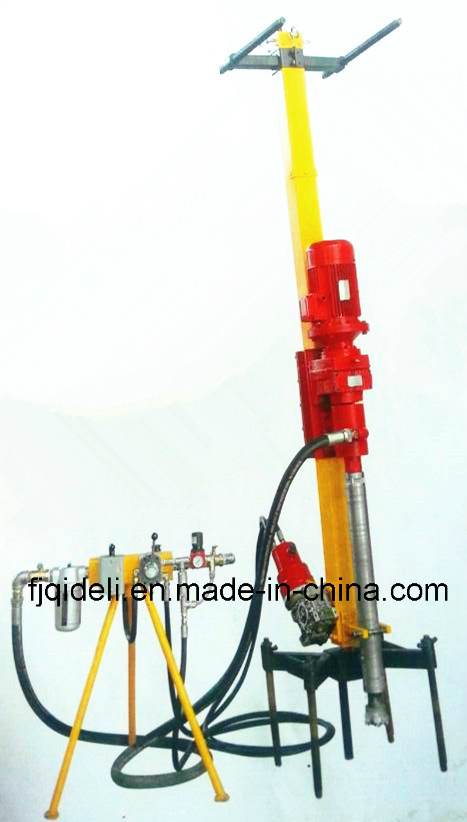

1,QDL65B DTH drill machine can be multi-usage, there is vertical, horizontal and inclined three job functions.
2, this machine use two-cylinder propulsion, automatic pressure, speed fast, round reducer, can make the drilling rig is clingy ground level assignments.
3, the machine site set up a carriage regulating system, on a small scale can realize transverse mobile group, complete drilling anchor point adjustment, easy operation and strong practicability
4,chassis adopts leave a adjusting screw, can adjust height, so as to adapt to different work environment, and is equipped with self-locking nut, stable performance is good.
5,steam distribution system is equipped with independent work station, remote operation, prevent dust to the operating personnel health impact, this machine is equipped with filter water, lubrication system, equipped with a pressure gauge, the manual directional control, manual reversing, power distribution box is equipped with the motor synthetical protector, which can effectively prevent damage because of motor overload for lack of phase, to ensure the normal safe use drill
DESCRIPTION
Hole diameter: 76-90mm
Max drilling depth : 40 m
air consumption:6-7m³/min
The motor power is: 4.0 KW
Hose diameter:38 mm
The machine weighs :335 kg
Drilling speed > 6 m/h
Air pressure:0.6 -0.8 mpa
Voltage :380 v
Cylinder push 1.2 m
