| Prod Model: |
BL28-4AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer: |
Manufacturer for Vertical Rock Driller and Stand |
| Size: |
4m Length and 5m Height |
| Brand: |
Bestlink |
| Usage: |
Drill Hole for Passage of Diamond Wire,Drill Holes |
| Special Design: |
Special Design Are Available Based on Needs |
| Material: |
Hard Steel for The Control Stand |
| Color: |
Normall Blue, Also Can Be Special Made. |
| Compressor Air Required: |
0.4-0.7MPa |
| Key Word: |
Grout Hole Drill,Mobile Drilling Machine |
| Air Motor: |
2.0bcbm/Min |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Number Of Shaft: |
No |
Product Description
Products feature:

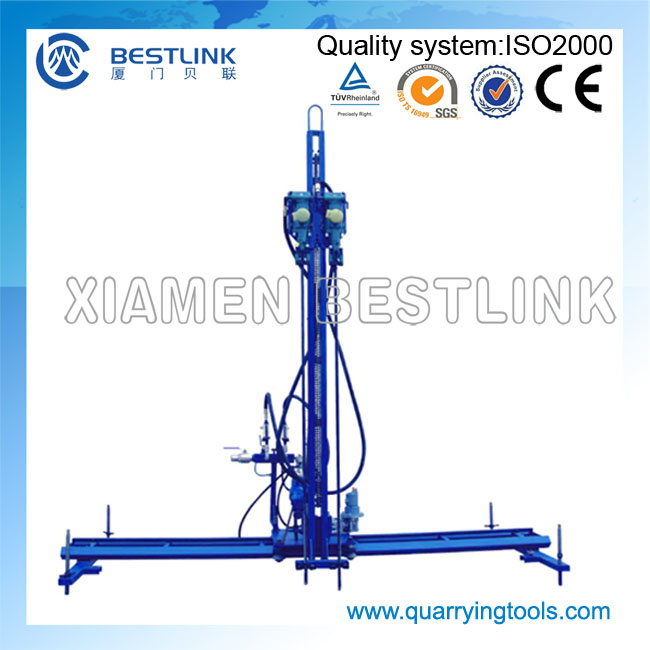

Mobile line drilling machine is ideal for quarrying, rock explosion, especially making large diameter holes. (90mm/3.5 inch). It is mainly used for making holes for the passage of diamond wire. And also good for normal line hole drilling, such as holes for expansive mortar.
Practicality in use, derived from its simple construction, and the lightness of the structure are its main characteristics. Two control ways to choose, one is feeding by pneumatic motor, cross moving by handwheel.
The other one is both feeding and cross moving by pneumatic motor.
The drill is equipped with a pneumatic rotation head which combined with the hole hammer permits drilling linearity to be maintained, reaching considerable depths at high penetration speeds.
The support column has a special fixing system with a spherical joint and an anchoring down jack which permits drilling in all directions.
Other construction characteristics permit the drill height from the ground to be kept to a minimum, in the case of horizontal drill.
Why Choose Us?
Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones.

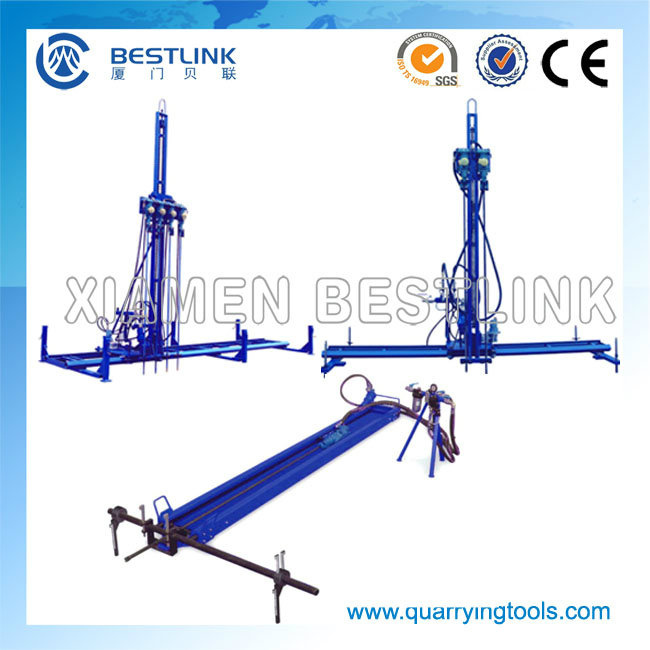

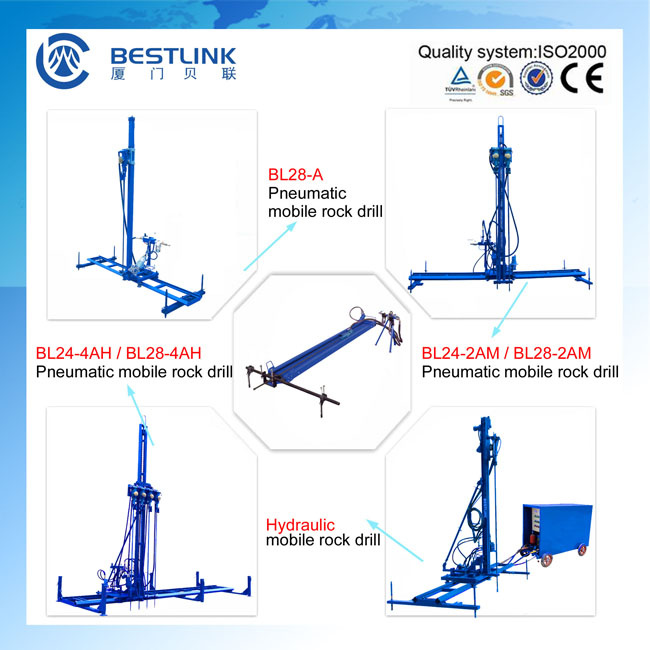

| Model no. | Drilling direction | Feeding system & cross moving device | Jackhammer | Positional device |
| BL28-AHM | horizontal drilling | feeding by pneumatic motor | 1*YT28 | anchor-wedge |
| BL28-AV | vertical drilling | feeding by pneumatic motor,cross moving by handwheel | 1*YT28 | anchor-wedge and adjustable screw rod |
| BL24-2AM | vertical drilling | feeding by pneumatic motor,cross moving by handwheel | 2*YT24 | anchor-wedge and adjustable screw rod |
| BL28-2AM | vertical drilling | feeding by pneumatic motor,cross moving by handwheel | 2*YT28 | anchor-wedge and adjustable screw rod |
| BL24-2AM | vertical drilling | feeding and cross moving by pneumatic motor | 2*YT24 | anchor-wedge and adjustable screw rod |
| BL28-2AM | vertical drilling | feeding and cross moving by pneumatic motor | 2*YT28 | anchor-wedge and adjustable screw rod |
| BL24-4AH | vertical drilling | feeding and cross moving by pneumatic motor | 4*YT24 | anchor-wedge and fast positional leg |
| BL28-4AH | vertical drilling | feeding and cross moving by pneumatic motor | 4*YT28 | anchor-wedge and fast positional leg |
