RC Reverse Circulation Hammers RC Hammers
| Price: |
US $ 2400-2500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
RE531, RE004, RE542, RE543, RE545, PR40, PR54 |
| Sizes: |
3 Inch to 6 Inch |
| Model: |
Re531, Re004, Re542, Re543, Re545, Pr40, Pr52,Pr54 |
| Color: |
Black or Customerized |
| Material: |
Quality Alloy Steel + Carbide |
| Advantage: |
Durable and High Performance |
| Package: |
Cartons or Plywood Case for Seaworthy or Airworthy |
| Applications: |
Deep Hole Exploration Drilling and Mining Ore Grad |
| Top Sub Thread: |
Remet and Metzke Connection |
| Name: |
Reverse Circulation Hammer |
| Usage: |
Ore Mining, Geothermal Drilling |
Product Description
Features of SOLLROC RC hammers:Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;
Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.The specifications of RC hammers we can produce:1) 3" RC hammers: RE531 connection thread 3" Remet
2) 3.5" RC hammers: RC3.5-Y connection thread 3" Remet
3) 4'' RC hammers: RE004 connection thread 3.5"/4" Remet; 4" Metzke
4) 4.5" RC hammers: RE542/RE543 connection thread 3.5"/4" Remet; 4" Metzke
5) 5'' RC hammers:RE545/PR40 connection thread 3.5"/4.5" Remet; 3.5"/4.5" Metzke
6) 5.5'' RC hammers:PR52/RE547/PR54 connection thread 4.5" Remet; 4.5" Metzke
7) 6'' RC hammers: RC62/RC62R | Hammer | Bit Shank | Hole Range
(mm) | External Diameter
(mm) | Length (less bit)
mm | Weight
(kg) | Connection Thread | Working Pressure |
| RC3-E531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC3.5-Y | RC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet
4" Metzke | 1.5-3.5Mpa |
| RC4.5-E542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet
4" Metzke | 1.5-3.5Mpa |
| RC4.5-E543 | RE543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet
4" Metzke | 1.5-3.5Mpa |
| RC4.5-E545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet
4" / 4.5" Metzke | 1.5-3.5Mpa |
| RC5-P40 | PR40(RE040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | PR52/PR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet
4" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-E547 | RE547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet
4.5" Metzke | 1.5-3.5Mpa |
| RC5.5-P54/P54R | PR54(RE054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |

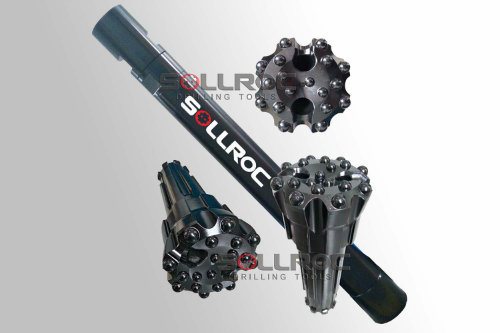

The Specifications of RC bits sizes available:1) 3" RC Bits: Dia. 86mm-102mm shank RE531
2) 4'' RC Bits: Dia. 114mm-127mm Shank type: RE004
3) 4.5" RC Bits: Dia. 121mm-133mm Shank type: RE542, RE543
4) 5'' RC Bits: Dia. 124mm-138mm Shank type: RE545, PR40
5) 5.5" RC Bits: Dia. 133mm-159mm Shank type: PR52, RE547, PR54, M5456
Other size can be upon to customer's requirements.
We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etcAbout us:We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.Quality warranty:Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.Package:Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.Production time:Generally need 15-25 daysProduction photos:
