| Prod Model: |
RC-E531, 542, 543, 545, 547, P40, P52, P54 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
3 Inch to 6 Inch |
| Model: |
Re531 Re004 Re542 Re543 Re545 Pr40 Pr52 Pr54 |
| Color: |
Black or Customerized |
| Quantity: |
Small Quantity Is Acceptable |
| Product Name: |
Reverse Circulation RC Hammers |
| Advantage: |
Durabl, Fast Speed and Long Life |
| Keywords1: |
Reverse Circulation Hammer |
| Keywords2: |
Pr40 Hammer |
| Keywords3: |
Pr52 Hammer |
| Applications: |
Deep Hole Exploration Drilling and Mining Ore Grad |
Product Description
Features
Reverse Circulation hammer (RC hammer) is our most advanced product, used in deep hole exploration drilling and mining ore grade control, etc.
Characteristic:
- Reference the design and production experience of conventional DTH hammer and combine the operating characteristics of RC hammer; internal structure design is optimized to ensure ideal energy transfer and high drilling speed as well as steady sampling.
- Simple internal structure and rigid components ensure long using life and easy maintenance of the hammer.
- Sample tube is integrative designed and can be placed without disassembling of the hammer. With carburizing treatment, the sample tube has good wear resistance.
- RC bit has patented design. One hammer could drill different size of holes just by replacing different size bits, and ensure no contamination of the sample as well.
- In difficult conditions such as loose soil, hard rock formation or plenty of water exists, sampling can be done well.
RC hammer specifications:
Hammer
Model | Bit Shank | Hole Range (mm) | External Diameter (mm) | Length
(without bit) mm | Weight | Connection Thread | Working Pressure |
RC3-E531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
RC3.5-Y | RC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
RC4-E004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke | 1.5-3.5Mpa |
RC4.5-E542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke | 1.5-3.5Mpa |
RC4.5-E543 | RE543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke | 1.5-3.5Mpa |
RC4.5-E545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke | 1.5-3.5Mpa |
RC5-P40 | PR40(RE040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
RC5.5-P52/P52R | PR52/PR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke | 1.5-3.5Mpa |

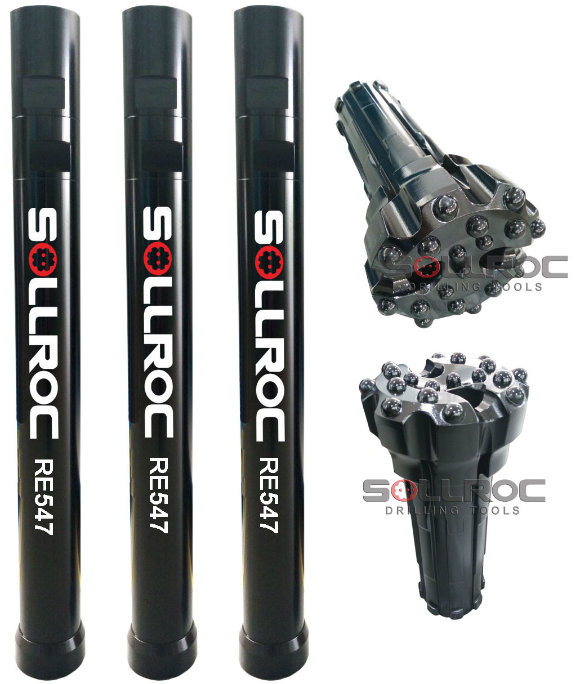

RC5.5-E547 | RE547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke | 1.5-3.5Mpa |
RC5.5-P54/P54R | PR54(RE054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
RC bits sizes available:
RC bits with below shank are available:
1) 3" RC Bits: Dia. 86mm-102mm shank RE531
2) 4'' RC Bits: Dia. 114mm-127mm Shank type: RE004
3) 4.5" RC Bits: Dia. 121mm-133mm Shank type: RE542, RE543
4) 5'' RC Bits: Dia. 124mm-138mm Shank type: RE545, PR40
5) 5.5" RC Bits: Dia. 133mm-159mm Shank type: PR52, RE547, PR54, M5456
6) 6" RC Bits: Dia. 152mm-165mm
Other size can be upon to customer's requirements
We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
About us:
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.

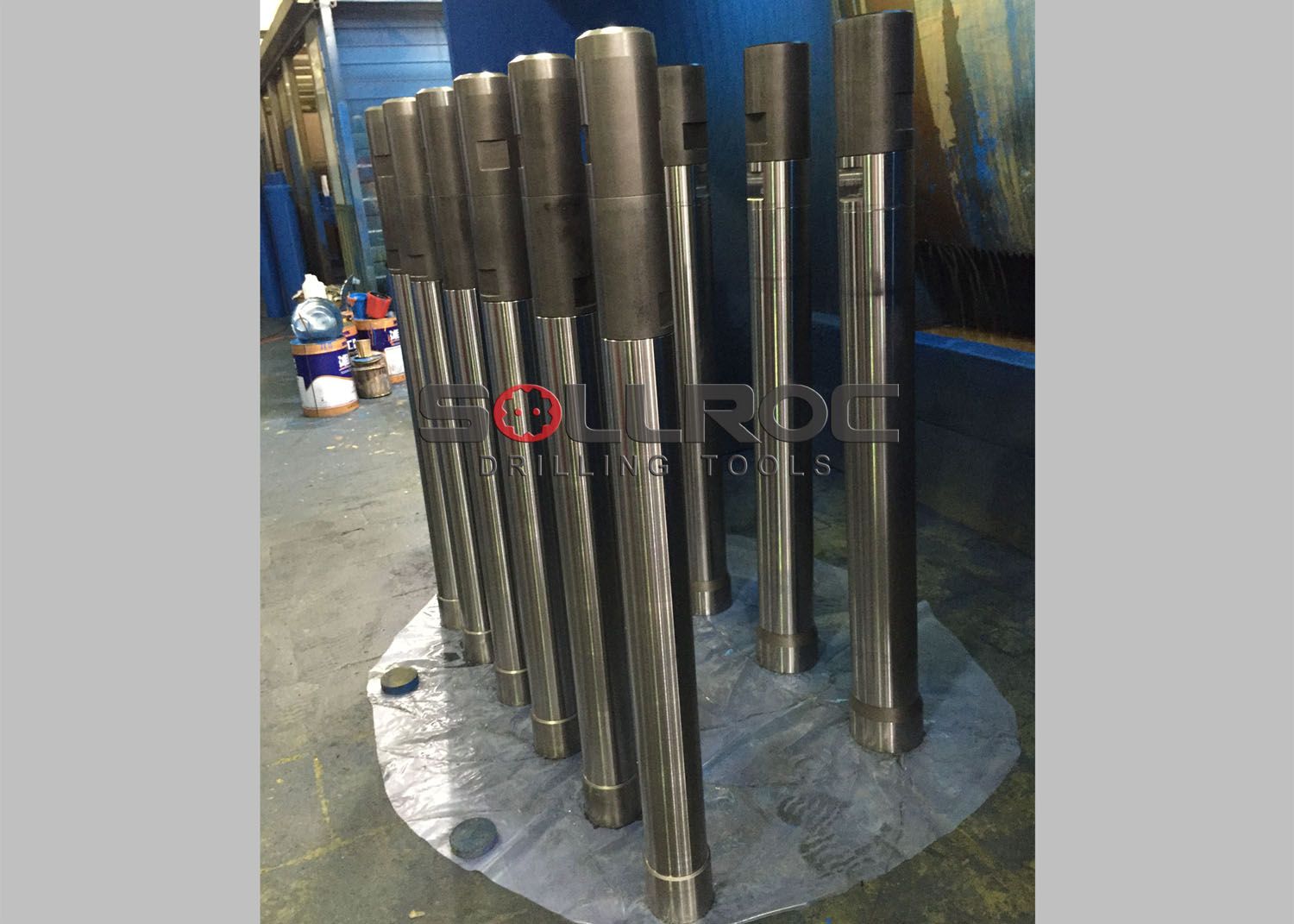

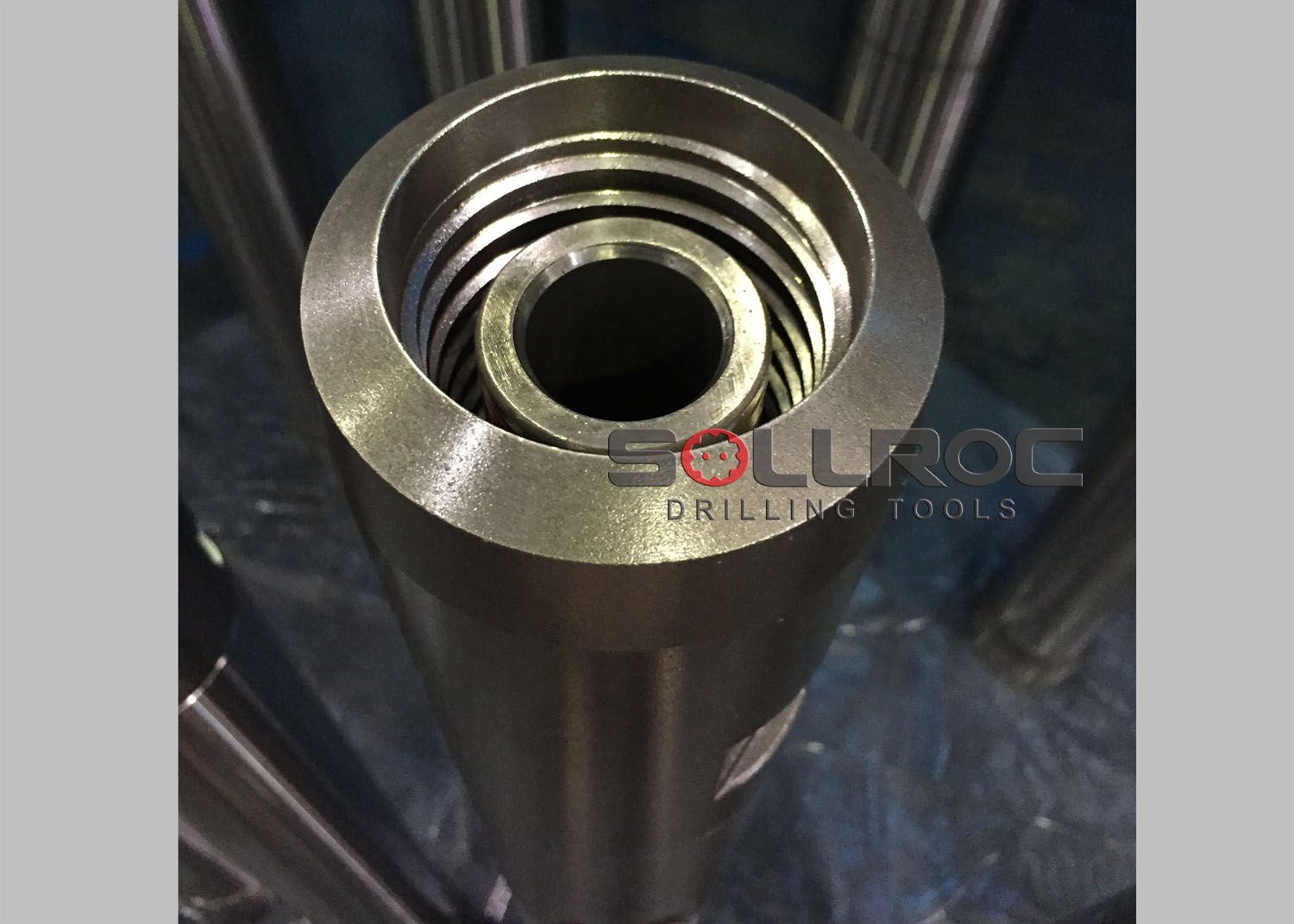

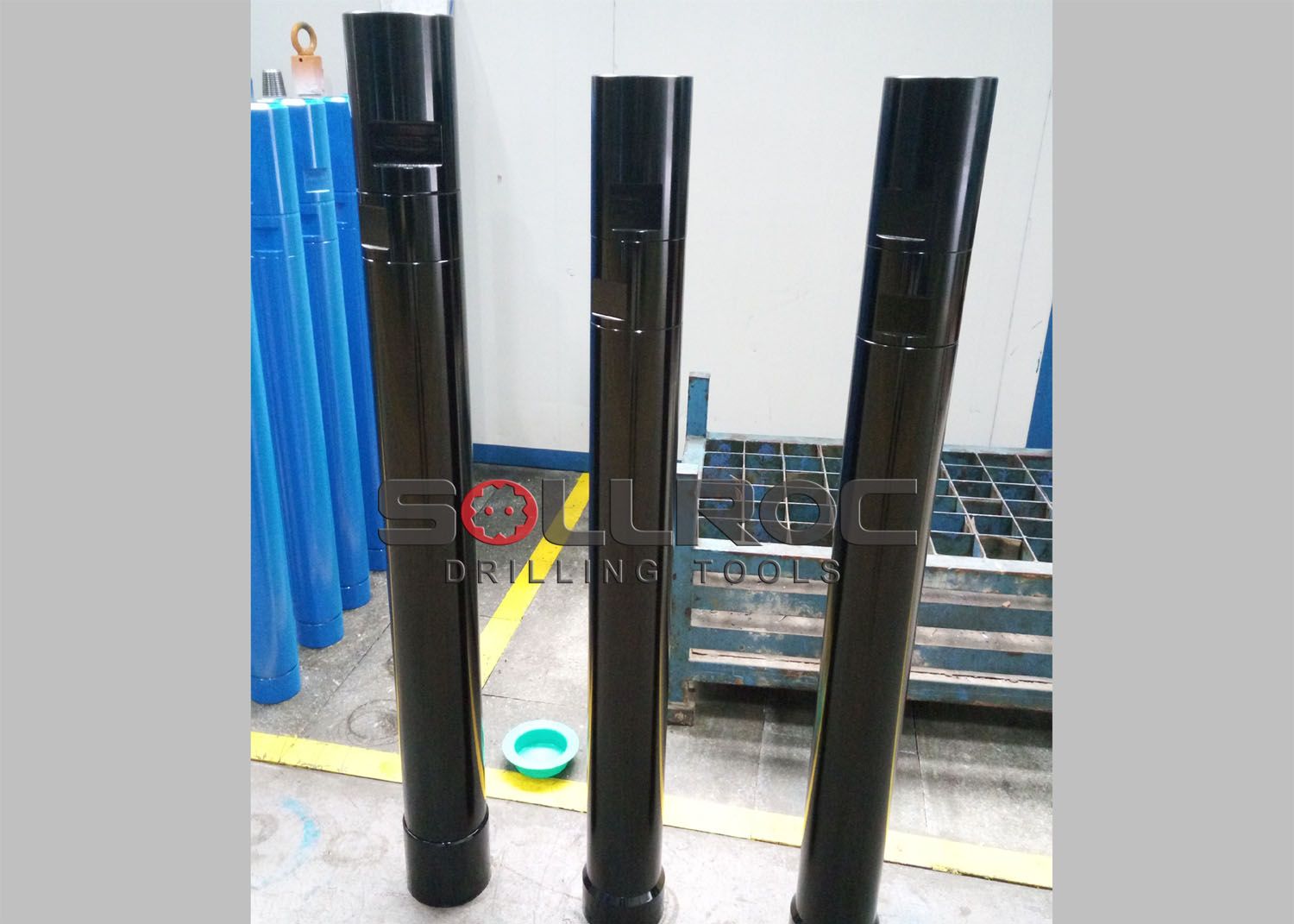

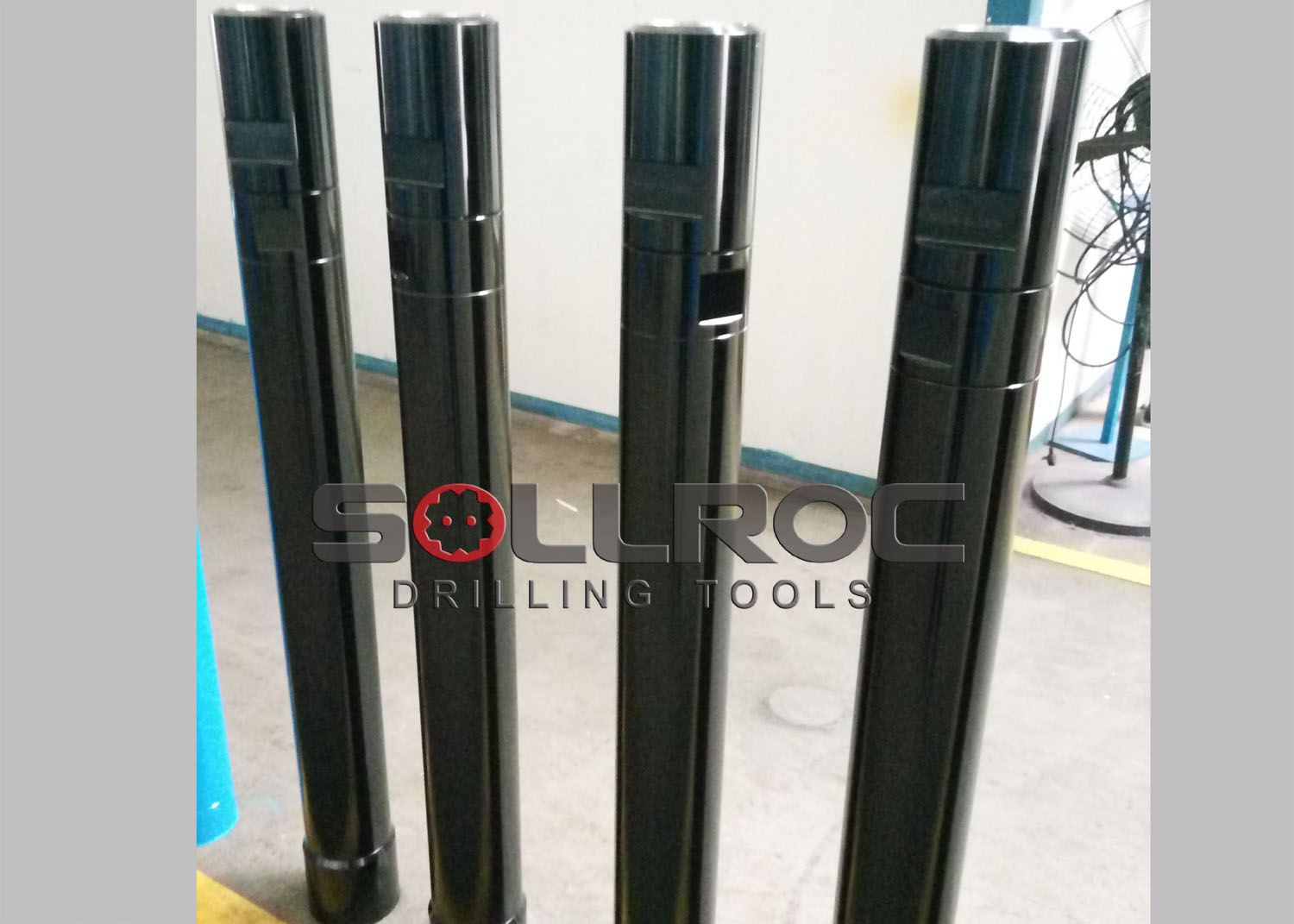

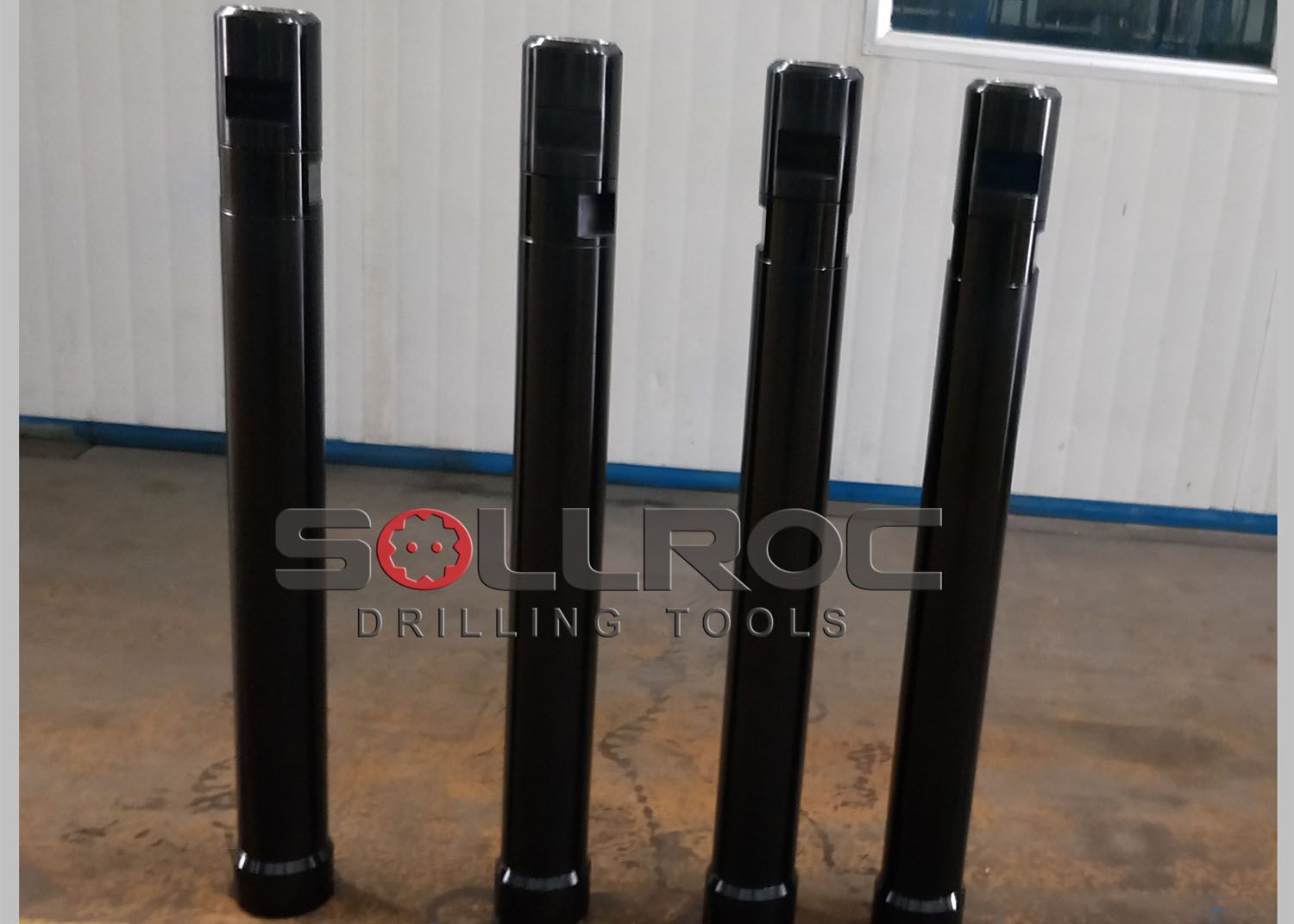

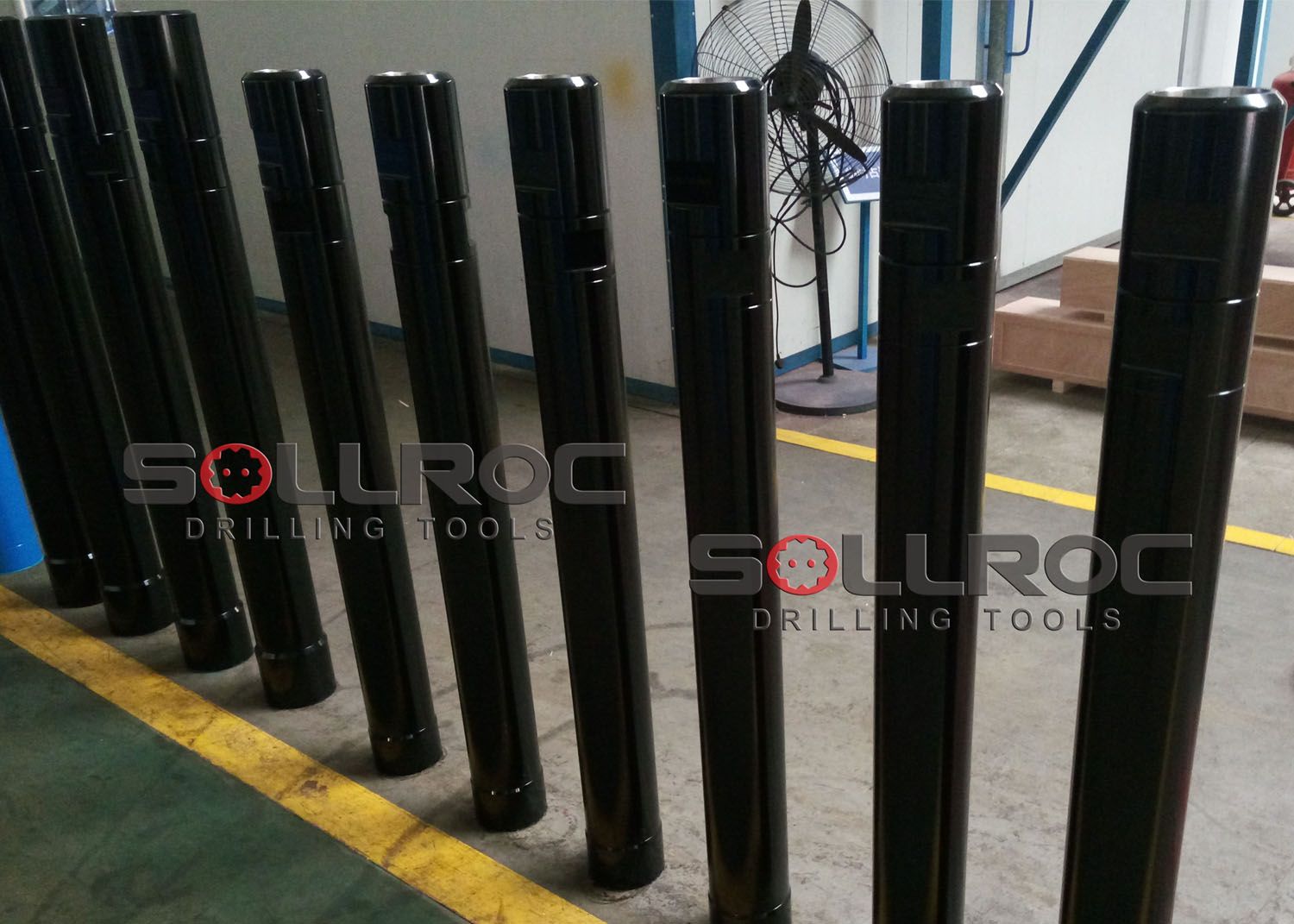

Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Canada, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.Product photos
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
