| Prod Model: |
WRC30 |
| Max.Repair Wheel: |
10-32inch |
| CNC Controller: |
Syntec |
| Machine Function: |
Diamond Cutting Wheel Rims |
| Motor Power: |
5.5kw |
| Max. Swig Over Bed (mm)(Inch): |
800mm |
| Range Of Spindle Speed (Rpm): |
50-1800rpm |
| Spindle Bore (mm): |
82mm |
| Machine Base(Cast Iron Base): |
Whole |
| Stations Of Tool Carrier: |
4 Stations |
| Chuck Size: |
320mm |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

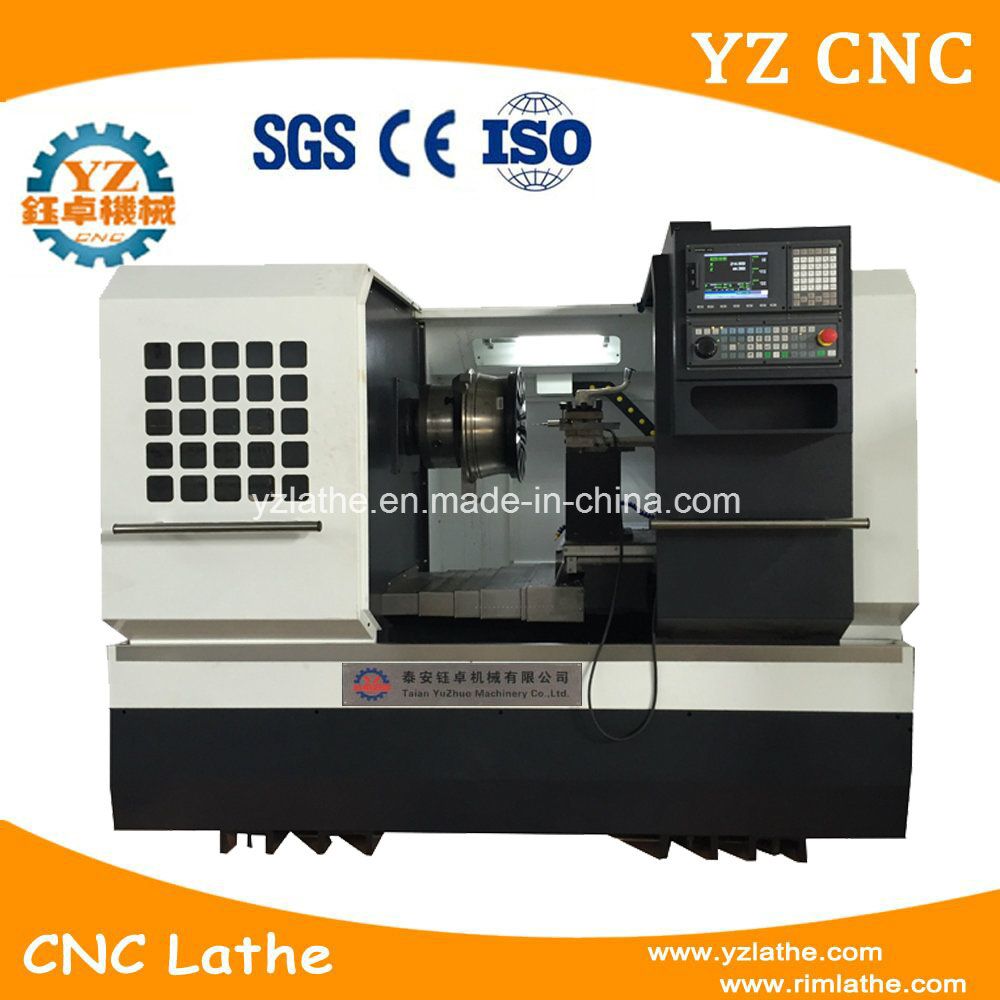

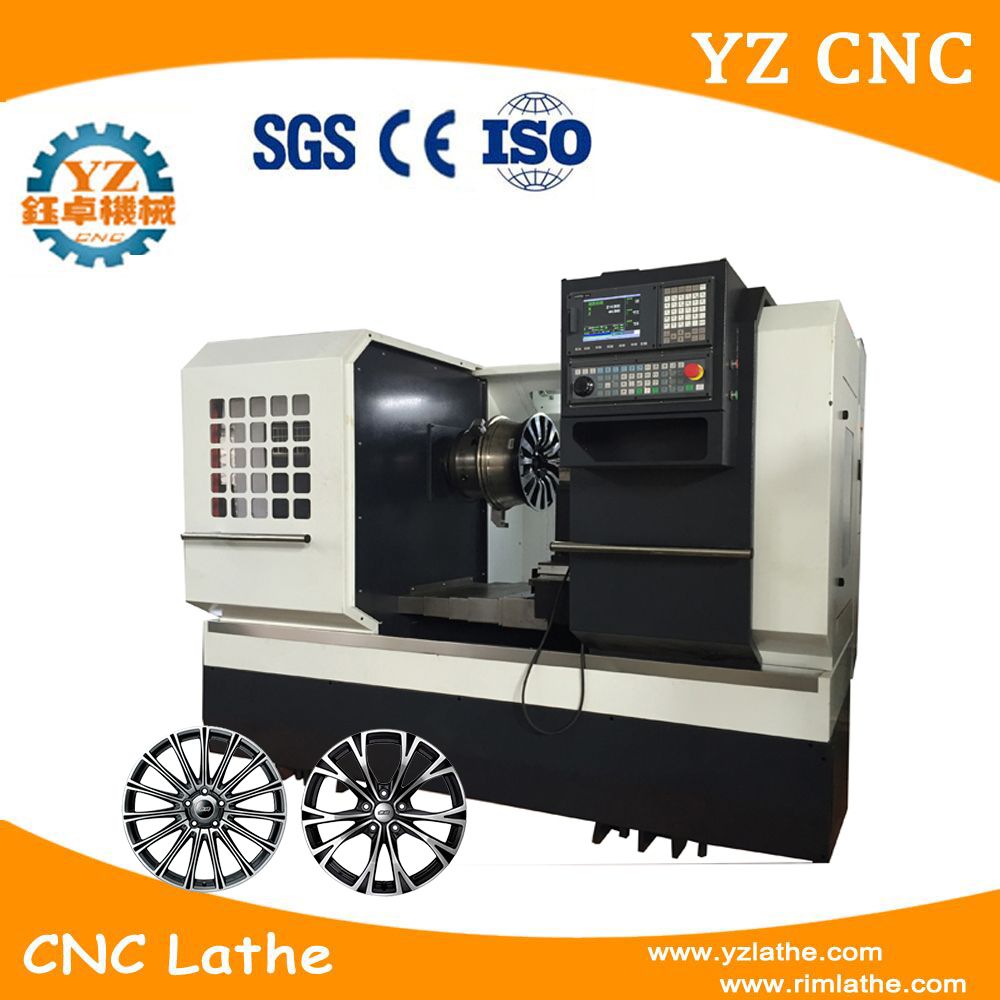

Refurbishment Wheel Lathe Diamond Cutting CNC Wheel Lathe
| Model | WRC30 |
| Max. swing over bed | Φ800mm (31') |
| Max. swing over cross slide | Φ550mm |
| Max. size of alloy wheel | 30' |
| Cross slide travel | 360mm |
| Width of the rail | 400mm |
| Length of the rail | 1630mm |
| Size of the 3-jaw chuck | 15' |
| Range of spindle speed | 50~1600rpm |
| Spindle speed control | Automatic |
| Spindle bore | Φ82mm |
| Taper of spindle bore | 1:20/Φ 90 |
| Taper of spindle nose | D1-8 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm
(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min
(X) cross 4m/min |
| Motor power | 11kw |
| Machine base | Whole cast iron base |
| Machine size (L*W*H) | 2430*1730*1840mm |
| Net weight | 3500kg |
Standard Configuration:
1- 3-Jaws Chuck(With Special Soft Jaws)
2- Manual Quick Change Toolpost ,four-station turret,
3- Automatic lubrication system,
4- Turning the cooling system.
5- With probing system (TP300 Pioneer Sensing Probe TP300);
6- Diamond Cutter 1 set
7- CNC controller syntec
8- Full Enclose (Security Guard Door)
9- Specific Digital Optimization Software
10- Training Video CD
11- Work Lighting System
Services:
1- After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2- Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3- Mechanical Support
4- Software Support
5- Comprehensive Training
6- Probe alloy wheel profile
Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!
The Machine Work Steps:
1- Probe alloy wheel profile, transformation G code.
2- Diamond cut the wheel.
Contact information:
Sunny
Sales Manager
tel : 0-86-152-8891-4531
Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
