| Prod Model: |
shackle |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
e.g, H.D.G |
| Material: |
Steel |
| Shape: |
Bow Sharp |
Product Description
1.manufacture of rigging hardware for about 30 years
2.Self colour,zinc plated,red painted and so on.
3.Good warranty and after-sales service
4.Competitive price and high quality

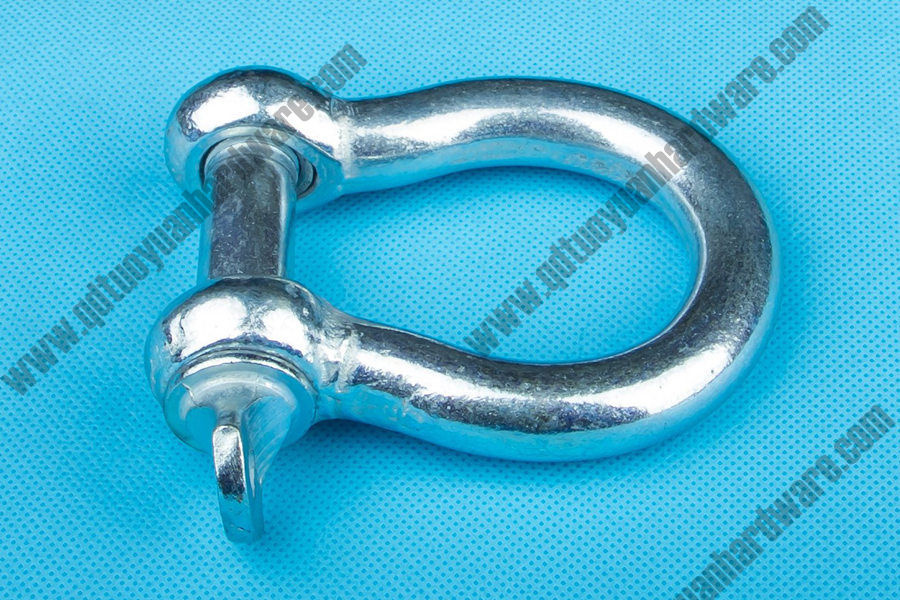

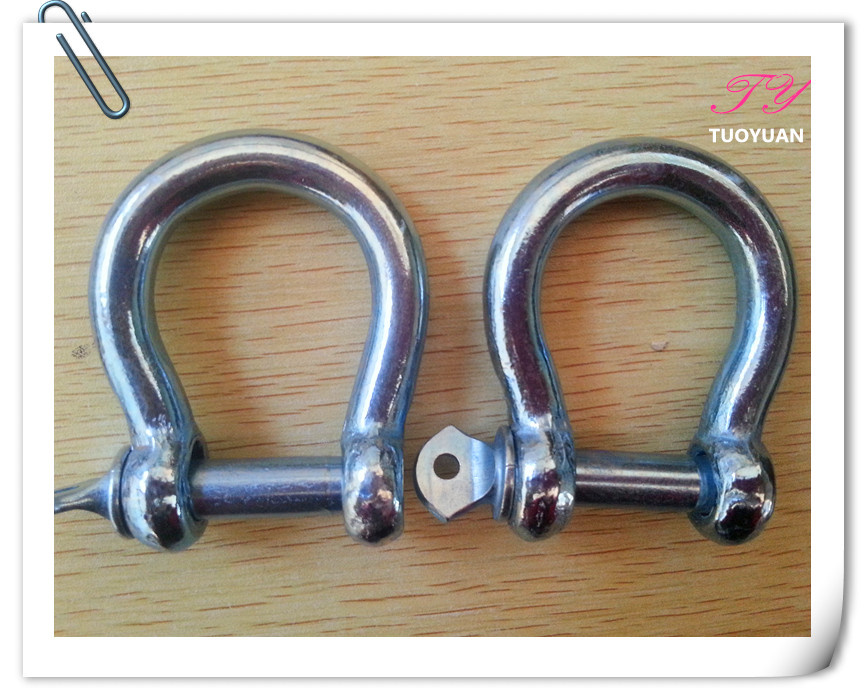

| ITEM | EUROPEAN TYPE LARGE BOW SHACKLE |
| DESCRIPTION |
| SWL | D | d | a | c | r | d | Approx
100pcs/WT |
| kg | mm | mm | mm | mm | mm | mm | kg |
| 80 | 5 | 5 | 10 | 19 | 8 | 11 | 1.9 |
| 100 | 6 | 6 | 13 | 25 | 10 | 14 | 3.4 |
| 200 | 8 | 8 | 16 | 32 | 12 | 18 | 7 |
| 320 | 10 | 10 | 19 | 36 | 16 | 20 | 13 |
| 520 | 12 | 12 | 25 | 51 | 19 | 26 | 26 |
| 800 | 16 | 16 | 32 | 64 | 28 | 33 | 50 |
| 1100 | 20 | 20 | 38 | 76 | 33 | 40 | 80 |
| 1500 | 22 | 22 | 44 | 89 | 37 | 50 | 130 |
| 2100 | 25 | 25 | 51 | 100 | 40 | 57 | 200 |
| 3000 | 28 | 28 | 57 | 115 | 47 | 68 | 310 |
| 3500 | 32 | 32 | 64 | 127 | 52 | 73 | 430 |
| 5000 | 38 | 38 | 76 | 152 | 63 | 85 | 700 |
| 7000 | 45 | 45 | 90 | 180 | 75 | 96 | 1250 |
| 8000 | 50 | 50 | 102 | 200 | 78 | 108 | 1750 |
| SAMPLE | FOR FREE |
| PACKAGE | GUNNY BAGS OR CARTON ON PALLET,OR AS CUSTOMER'S REQUEST |
| PAYMENT | 30% IN ADVANCE AND THE BALANCE BEFORE SHIPPMENT |
| DELIEVERY | WITH 25-40 DAYS AFTER RECEIVE THE DEPOSIT |
ABOUT US.......................................................
Qingdao TuoYuan Rigging Hardware co.,ltd. is an enterprise that mainly manufactures rigging products.
The Factory possesses favorable geographical position, being close to Qingdao and adjacent to Qingdao International Airport Freight Wharf in the south.
The Factory mainly engages in producing shackles, turnbuckles, wire rope clips and cast rings with a production capacity of more than several hundreds tons which are mainly exported to Europe, USA, and Asia and won great approval.
CONTACT INFORMATION............................................
contact person:suzy
TEL:0086-13791947985
Qingdao Tuoyuan Rigging Hardware Co., Ltd. is a manufacturer of all kinds of riggings with excellent geographical location, exquisite technology, professional skills, enthusiasm for the service we show the world its eternal vitality.
Our main products are all kinds of riggings ( shackle, turnbucke, wire rope clip, hook chain, wire rope, load binder, eye bolt and nuts, Thimble, )
As a manufacturer, we have 30 years's produce and sales experinece, and we also have more better export service,
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in shipping and other industries. Our products are exported to Southeast Asia, the Middle East, Afria, the United States, Australia, and most countries of Europe.
Choose us, Trust us, is your best choose! !
