Roll Brush for PCB Brushing Machine High Quality
| Price: |
US $ 145-200/Piece |
| Min Order: |
4/Piece |
| Pay Type: |
T/T,D/P |
| Prod Model: |
HC 400 |
| Grit: |
400# |
| Copper Reduction: |
0.45um |
| Ra(Um): |
0.25um |
| Rz(Um): |
2.0um |
| Type: |
Roller Brush |
| Shape: |
Long |
| Usage: |
PCB Manufacturing |
| Wire Material: |
Ceramic Abrasive Material |
| Application: |
PCB Manufacturing and Hardware |
Product Description
Jiejun non-woven brushes are manufactured by improt 3M or other well known brand material and adopted the world's most advanced formation technology.

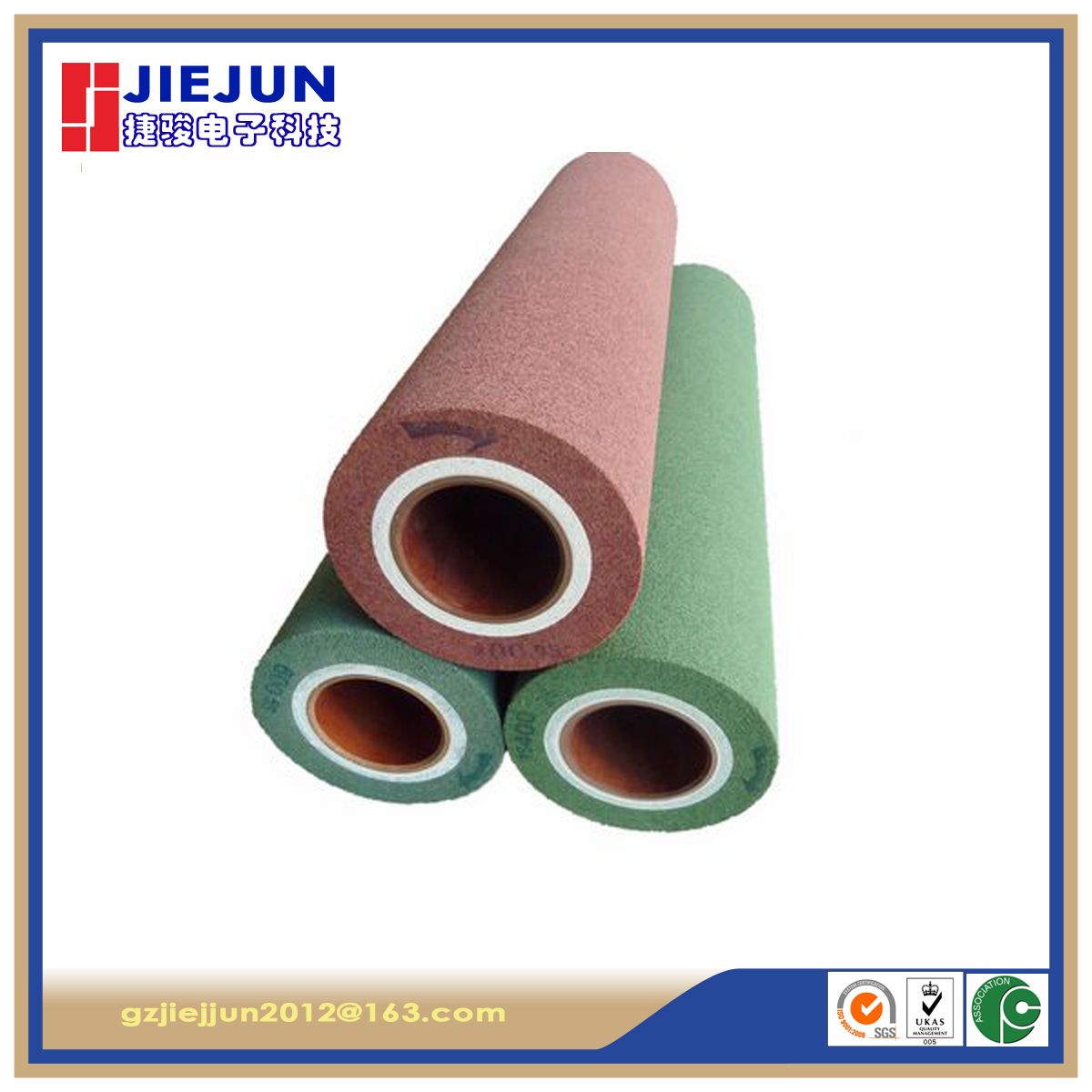

HC/THC non-woven brush
Mainly apply to remove the plugging resin, deburring and polish the surface of SUS press plate.
Features:
1.Long life and high efficiency
2.very uniform"finishing quality of treated surface
3.Avoid projections that create problems in next process phases
4. Keep the flatness of the circuit in the presence holes
5. Keep as much as possible uniform the collar of the hole(avoiding any ovality)
6.It can be used togther with ceramic brush or sanding belt, which makes more efficency on cutting and suface finishing.
The size and grit can be customized.| product series | grit# | 400# | 600# | 800# |
| HC | copper reduction(um) | 0.3 | 0.2 | 0.1 |
| Ra(um) | 0.3 | 0.3 | 0.2 |
| Rz(um) | 2.5 | 2.0 | 2.0 |
| THC | copper reduction(um) | 0.6 | 0.4 | |
| Ra(um) | 0.3 | 0.25 | |
| Rz(um) | 2.5 | 2 | |
HD non-woven brush
Mainly apply to deburring after drilling, cleaning , deoxidation, cleaning before solder resist process, gold finge.| grit# | HD-400# | HD-600# | HD-800# | HD-1200# | HD-2000# |
| copper reduction(um) | 0.6 | 0.45 | 0.4 | 0.2 | 0.15 |
| Ra(um) | 0.3 | 0.25 | 0.2 | 0.15 | 0.1 |
| Rz(um) | 2.6 | 2.0 | 1.5 | 1.3 | 0.9 |
| | | | | | |
| | | | | | |
Removing residual copper "nodules" after plating
Removal of built-up resin ink spots in SBU process
Removing black oxide from IVH(internal via holes) and BVH(blind via holes) process
Ceramic brush

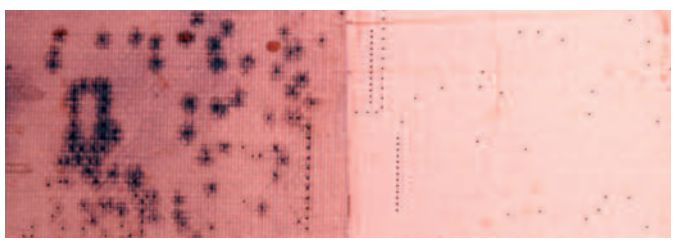

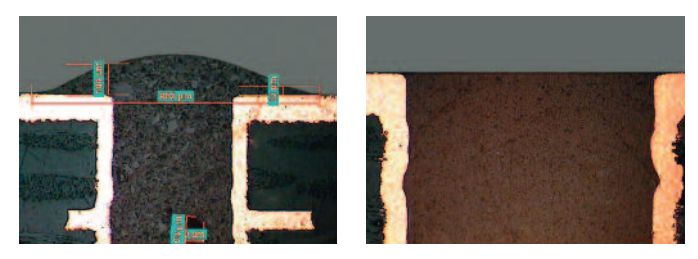

jiejun Tech. the unique company produces ceramic brush which was adopted by advanced imported technology from Japan. we seek the goal of "low costs high efficiency".Superior ceramic strength by production with the new bonding method(long-life formation - Removal of hole plugging ink of PCB circuit board
- Precision grinding of surface following copper plating
- Leveling build-up product grinding
- Removal of bur and other dust - precision grinding of other large surfaces
Usage:
1.To remove the plugging ink, resin, and black film.
2.To smooth the surface of build up, IVH, Pre-preg.
3.To smooth the surface of additive-processd PCB.

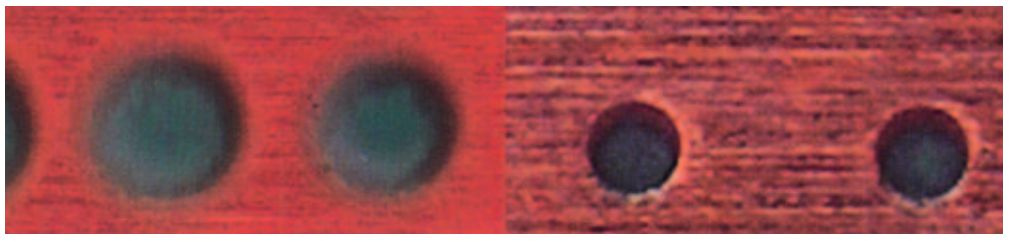

4.To deburr the hole and to remove foreign matter after plated.
5.To polish the surface of SUS press plate.
Features:
1.Long life (2-4times life)and high efficiency.
2.Very uniform finishing quality of treated surface.
3.No damages on edges of the hole.
4.Perfect preparation for next process.
5.Impact resistance, high dencity construct.
6.No plugging the hole which would be caused by non-woven brush.
The size and grit can be customized:
Size: 2"*5"*650--1400mm
3"*6"*610--1400mm
Grit: 240#-3000#| product series | grit# | 400# | 600# | 800# | 1200# | 2000# |
| B6 | copper reduction(um) | 0.6 | 0.45 | 0.4 | 0.2 | 0.15 |
| Ra(um) | 0.3 | 0.25 | 0.2 | 0.15 | 0.1 |
| Rz(um) | 2.6 | 2 | 1.5 | 1.3 | 0.9 |
| B10 | copper reduction(um) | 1.1 | 0.7 | 0.6 | 0.45 | 0.25 |
| Ra(um) | 0.35 | 0.25 | 0.15 | 0.15 | 0.1 |
| Rz(um) | 2.5 | 1.8 | 1.4 | 1.3 | |
Ceramic Brush producing workshop

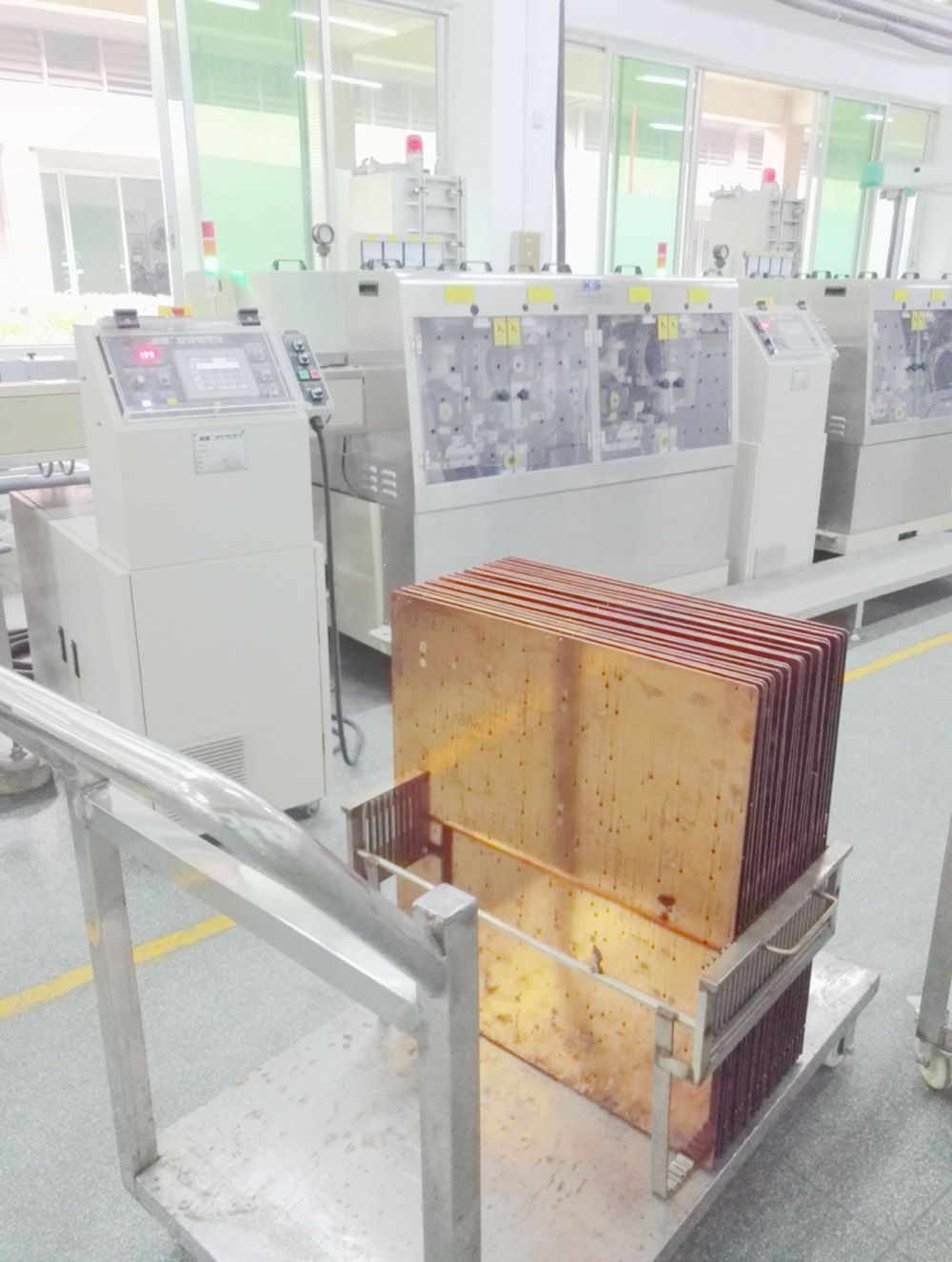

OEM PCB FINISHING LINE

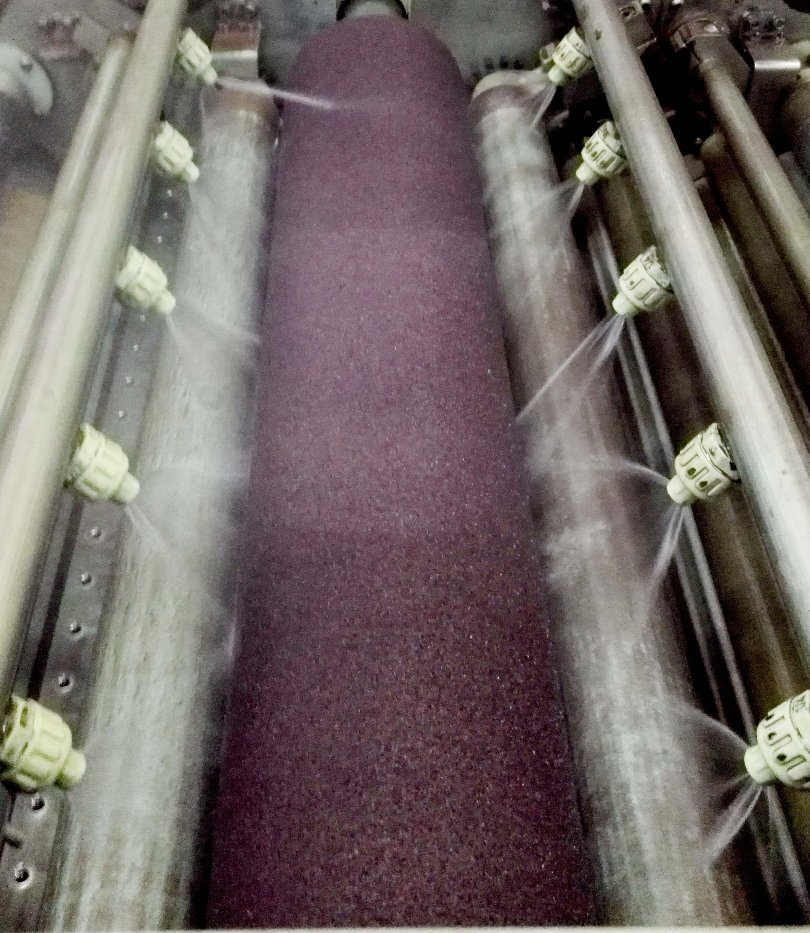

non-woven brush assembed on the grinding machine
Guangzhou Jiejun Electronic Technology Co., Ltd is a professional corporation specializes in developing, producing and promoting the abrasive brush roll which are used in PCB industry for more than 10 years. It has attracted a large number of top technical talents. Jiejun also undertake the process of plugging hole at vacuum condition and removing exceeded resin for our PCB clients.
The very close cooperation with major PCB manufactures and many famous machine manufactures and rich experience on removing exceeded resin have allowed Jiejun to achieve a deep knowlege on this field, which lead us sum up the best solution to our customers needs.
Through our year by year's effort, Jiejun has become a leader in PCB abrasive industry. Our company also gets high reputation from our client, special in the largest PCB manufactures, such as FOUNDER, TRIPOD, Elec & Eltek.
Company to "manage the high demand, development and manufacture of high quality starting point" for the purpose to serve the constantly updated PCB demand.
We sincerely hope to cooperate with you in this filed. Hand in hand, create brilliance!
