Prod Model: |
GQ40/50/60 |
Warranty: |
2 Years |
Voltage: |
220-440V |
Color: |
Green, Red etc(Can Be Customized) |
Function: |
Cutting Steel Bar, Flat Bar, Deformed Bar etc |
Name: |
Steel Cutting Machine |
Cutting Bar Diameter: |
up to 40mm/60mm |
Weight: |
480-880kg |
Motor Power: |
3-5.5kw |
Structure: |
Compact Structure, Small Size, Easy Movable |
Certificate: |
ISO |
Product Description
Round Steel Bar Cutting Machine/Rebar Cutting Machine/Rebar CutterProduct Features:
1) Reinforced fuselage, small size, compact structure, solid fuselage. With scrollable casters it can be moved easily and flexibility.
2) Good lubricating properties. It adopts full close structure and lubricates by using gears splash.
3) Little power loses. For lubrication conditions improving, gear-side uses antifriction bearing, and the resistance is small, compared with the similar cutting machine with load power can be reduced by one third.
4) It adopts the high steel knife block, connecting rod, high-speed international standard motor, its quality is more stable and it will last longer.
Technical Speciication of Steel Cutting Machine:Model No. | GQ40 | GQ50(1) | GQ50(2) | GQ60 |
Motor Power | 3kw | 4kw | 4kw | 5.5kw |
L*W*H(mm) | 1370*500*750 | 1430*480*860 | 1430*480*860 | 1810*560*1000 |
Weight(kg) | 480 | 650 | 650 | 880 |
Cutting diameter range(mm) | Round steel (mm) | φ6-φ40 | φ6-φ50 | φ6-φ50 | φ6-φ60 |
II-grade deformed steel bar (mm) | φ6-φ32 | φ6-φ40 | Φ18-φ40 | φ6-φ50 |
Cutting distance (mm) | 34 | 44 | 44 | / |
Cutting Frequency(times/min) | 32 | 28 | 28 | 28 |

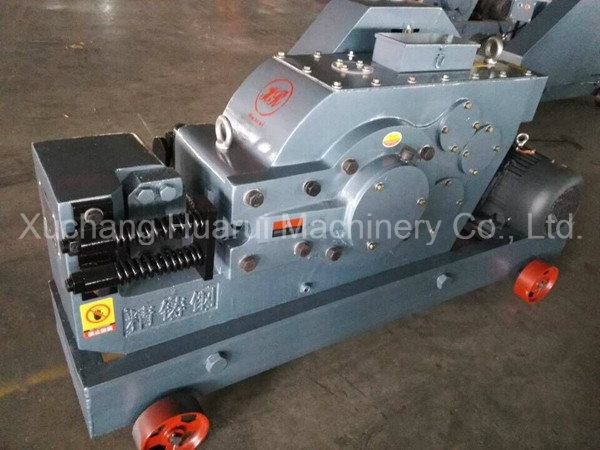

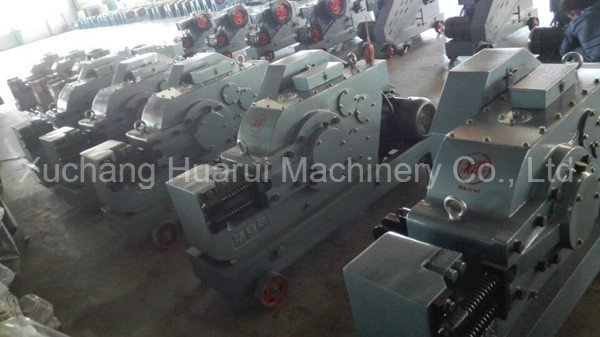

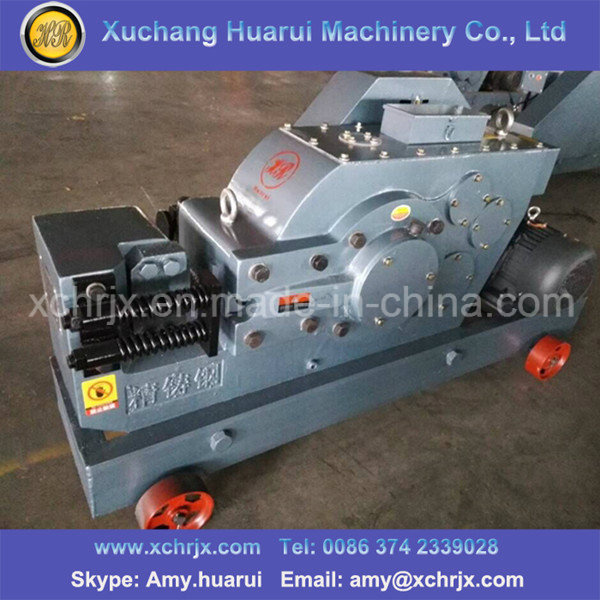

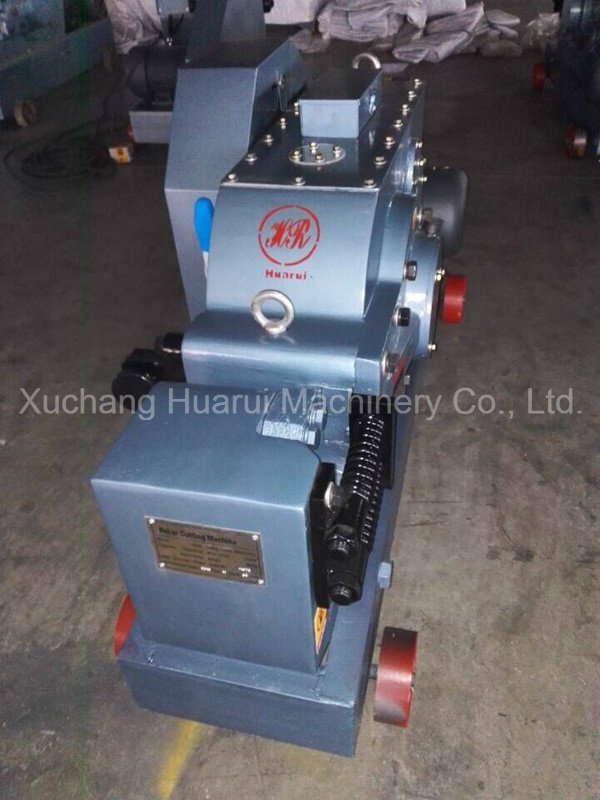

Pictures of Steel Bar Cutting Machine:

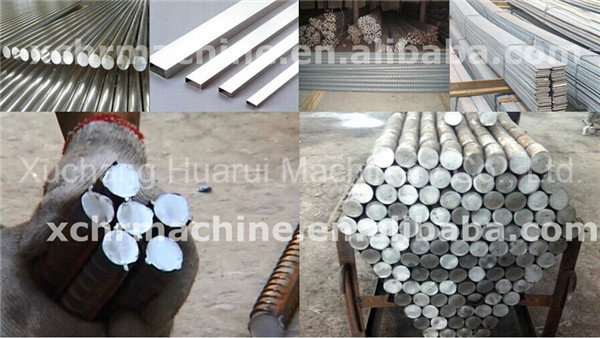

Cutting Steel Bar Type:
Packing and Shipping:
Xuchang Huarui Machinery Co., Ltd. Was established in 1990, mainly engaged in the R&D and manufactures nail making machine, waste tire recycling machine and auxiliary equipment.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. Has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are full automatic nail making machine, waste tire recycling machine, wire drawing machine, rebar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
