Prod Model: |
RTFQ-1600B |
Slitting Material: |
Paper/PVC/Aluminium Foil/BOPP/ Plastic Film/Label |
Classification: |
Single-blade Cutter |
Driven Type: |
Electric |
Blade Material: |
Steel |
Computerized: |
Computerized |
Product Description

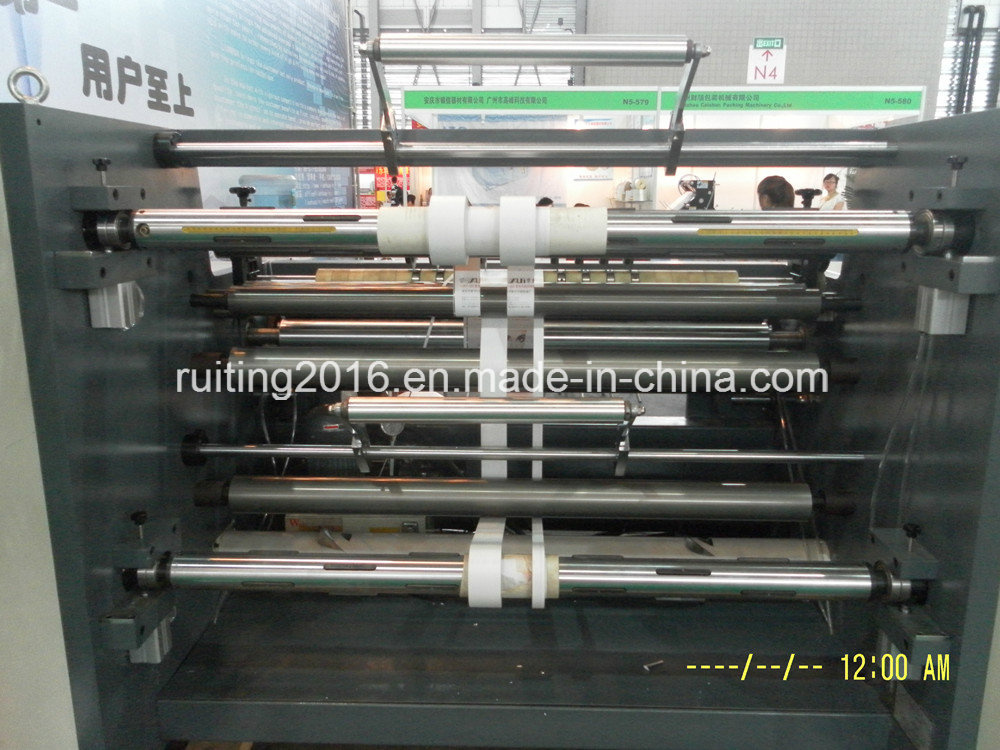

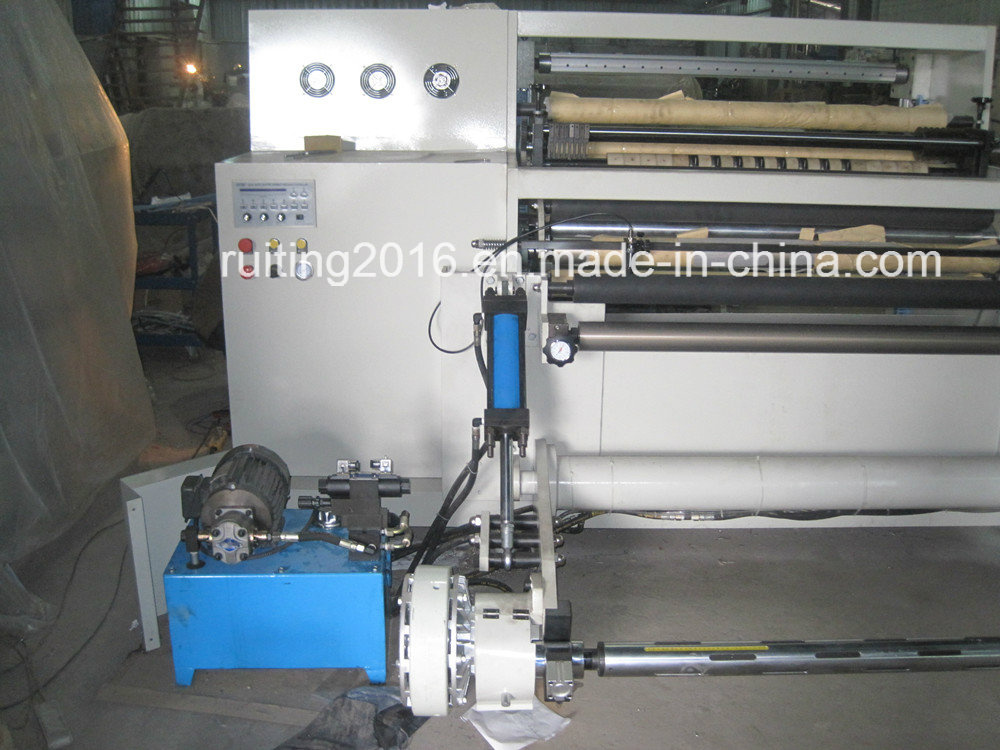

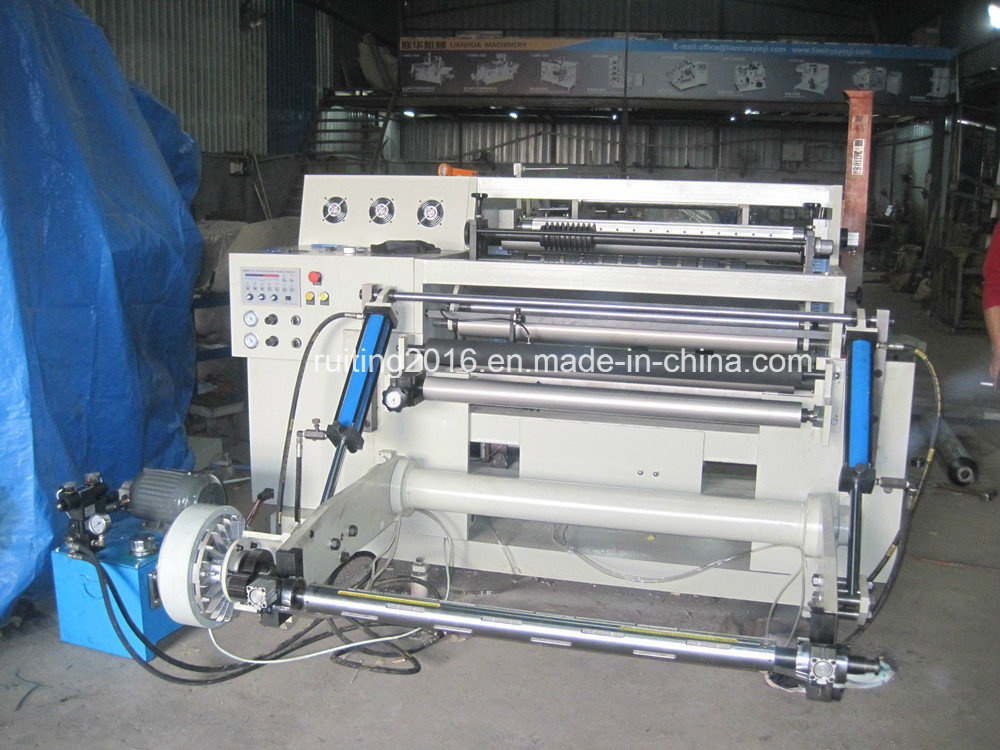

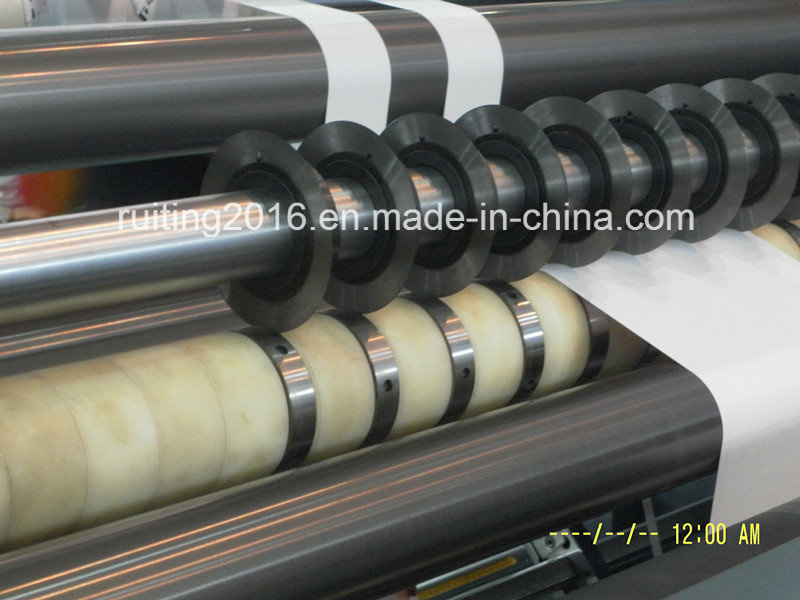

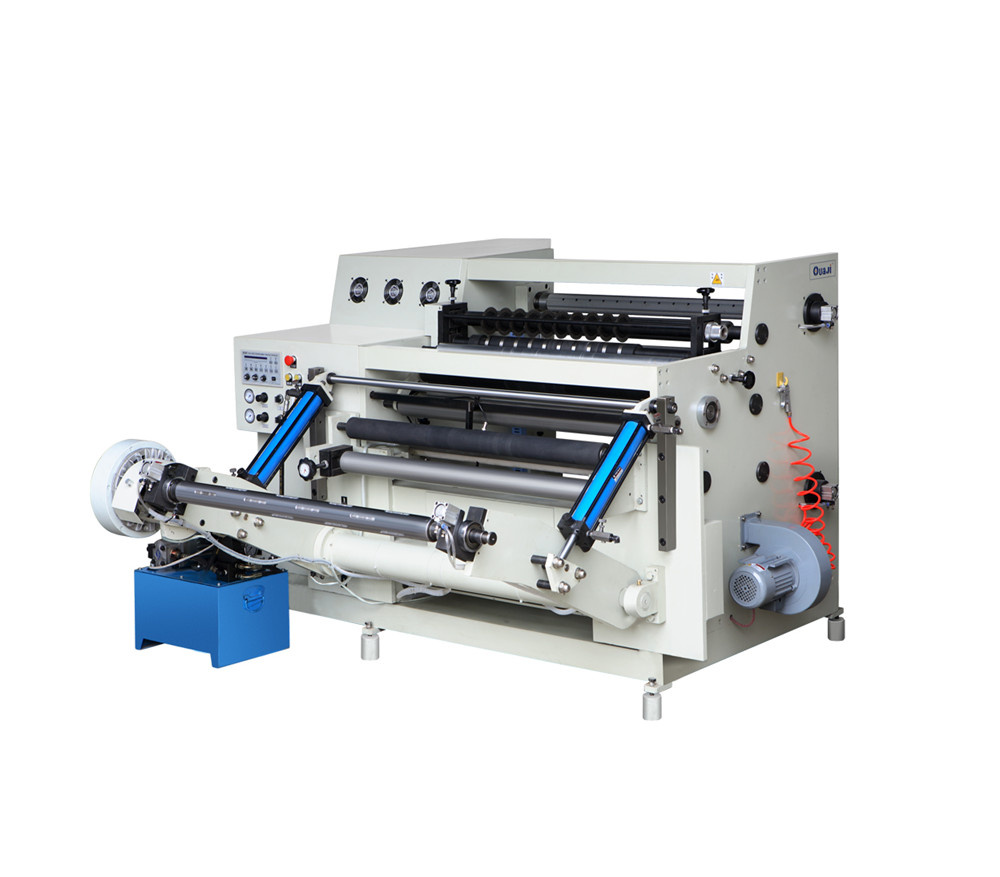

RTFQ-1600B high speed auto craft paper label cutter machine is complete equipment for auto label printing press and die cutting machine. This machine is suitable for slitting adhesive paper, craft paper, web paper, PVC plastic film, insulated material. This machine is good for slitting narrow web paper. It has frequency converting, automatic meter counting, auto stop when length settled, alarm, unwinding has web guide by photoelectric eye, rewinding through air shaft, unwinding and rewinding adopt automatically calculate tension conical control, The whole machine has compact structure, synchronous belt traction, features with high speed, precision cut, low noise, easy operation, stable running etc.
Product parameters:
Max web width | 1600mm |
Max rewinding diameter | 500/600mm |
Max. unwinding diameter | 600/1000mm |
Min width | 25mm |
Power Supplier | AC380V±10% |
Cutting precision | 0.3mm |
Power voltage | 10-20KW |
Cutting peed | 10-250m/min |
Overall dimensions(L*W*H) | 2.3*2.8*1.6m |
Machine weight | 3800kg |
