Prod Model: |
RTMQ-520 |
Die Cutting Material: |
Label/PVC/Screen Protector |
Max. Speed: |
180time/Min |
Imprinting Type: |
Platen |
Placing Form Of Template: |
Horizontal |
Automatic Grade: |
Automatic |
Application: |
Stickers Products |
Species: |
Flat Bed Die Cutting Machine |
Die Cutting Tool: |
Wooden Mould |
Product Description

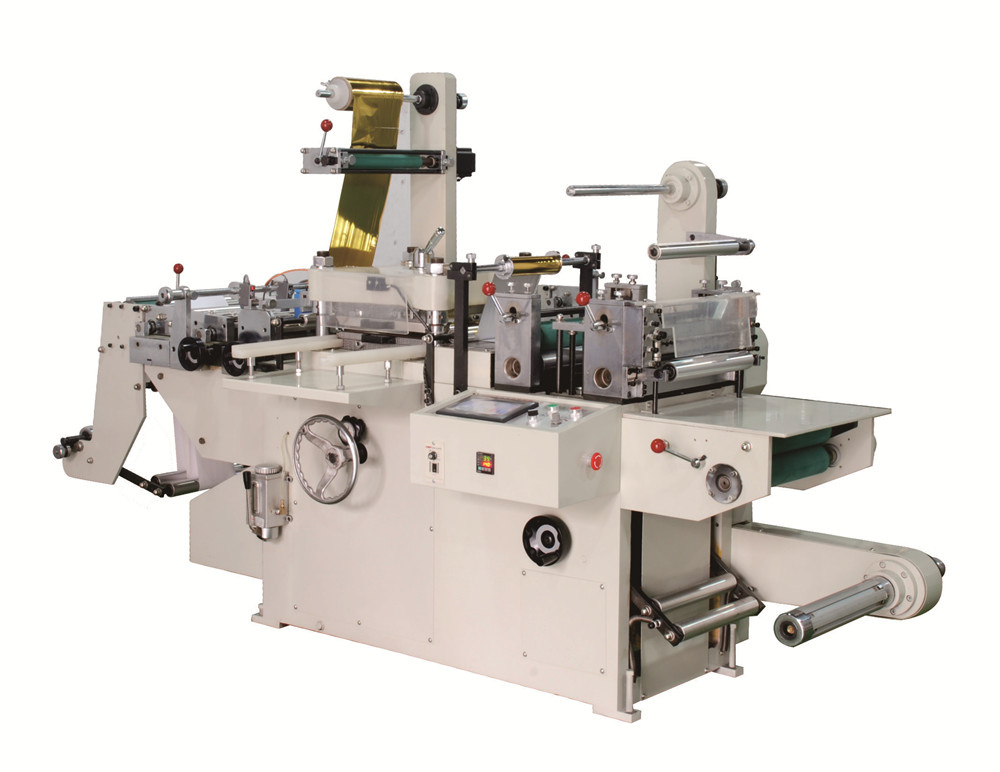

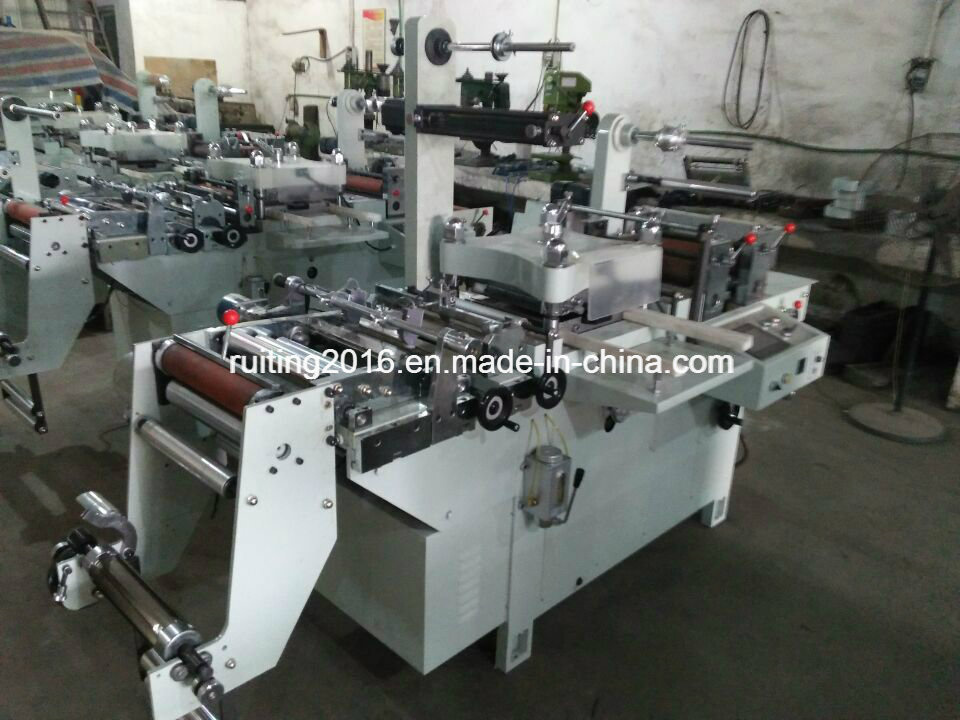

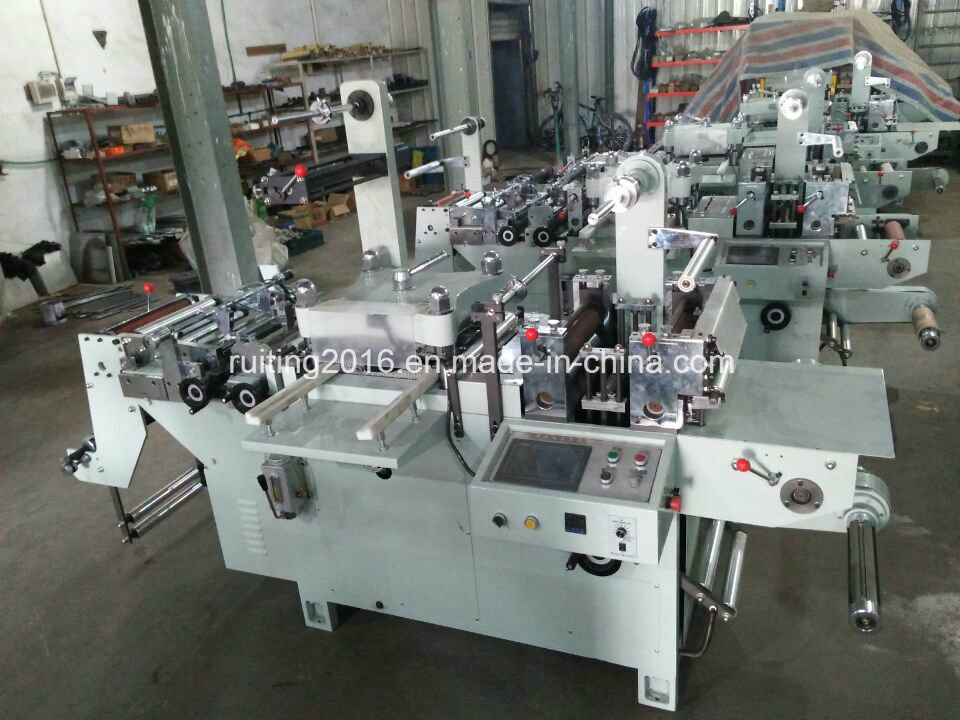

RTMQ-520 hot sale roll to roll sticker paper labels die cutter machine with hot stamping
This machine has flat pressing and high precision die cuts unit,shifting materials and slice are controlled by servomotor. The printing label's two-faces and longitudinal color code are tracked and located precisely through three photoelectric eyes.It finishes all the process of die-cut,recycle of waste mateial,slicing and roll winding for auto label brander only once. It is applicable to die cut adhesive label,terylene film trademark and laser anti-fake trademark.And this machine is an ideal supporting equipment for rotary high speed cylinder type label printing press,flexible printing machine,screen printing press,intaglio printing press,anti-fake trdemark stem pressing machine and it is also the most efficient equipment for trademark printing house and electronice inductry,adhesive tape product line.
Machine parameter
Die-cutting speed | 20-180time/min |
Max. unwinding diameter | 500mm |
Max. web width | 520mm |
Max. die-cutting width | 500mm |
Max. die-cutting length | 290mm |
Positioning precision | ±0.1mm |
Total power | 6kw |
Power supply voltage | 220V±10% |
Machine weight | about 2300kg |
Overall dimensions | 2.6m*1.4m*1.4m(L*W*H) |
Our company estalish since 2015. During these 3 years we get more than 100 cilents. Our main aim is help our customer find suitable machine they need with acceptable price So we can get a win-win cooperate.
We're Manufacturing many kinds of machines like flexo printing machine, label die cutting, slitting machine, box forming machine, paper cup machines, blister packing machine etc.
We're also professional machine exporter, will bring the customer not only product, the more important is a service and the profession technical support.
Though we are a new company compared others, but we have many professional techincal persons who in this filed for more than 10 years to guide our production. Have professional person to check the machine when it finish, so it can make sure all the machine is running super well before shipping.
Now we have a team to research new machines and improve the old machine, we believe in the near future we will bring our customer more better, stable and competive machine.
