| Prod Model: |
XQL-80 |
| Colour: |
According to Customer Requirements |
| The Design Style: |
According to Customer Requirements |
| Rubber Cutting Knife Width: |
760mm |
| Rubber Cutting Kinfe Stroke: |
660mm |
| Oil Cylinder Pressure: |
80 |
| Rubber Cutting Travel Time: |
14-18 |
| The Motor Power: |
5.5kw |
| Dimension: |
1800X500X2150 |
Product Description
Product Description

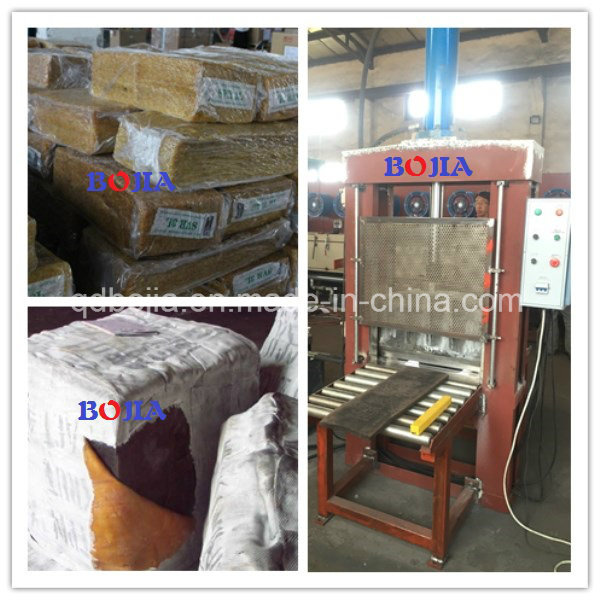

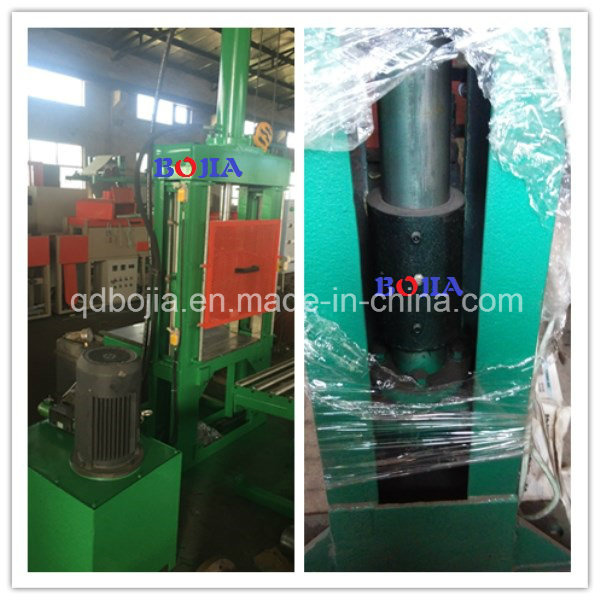

Rubber Cutting Machine/ Vertical Rubber Cutter
1.Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.
2.XQL-80 single knife Hydraulic Rubber Cutter has compact structure, easy operating, less wearing parts and easy maintenance. It is the essential machine for raw material possessing.
3.XQL-80 single knife Hydraulic Rubber Cutter is mainly consist of motor, vane pump, magnetic exchange valve, overflow valve, slave RAM, oil pressure gauge pipe, hydro-cylinder support, rubber cutting knife, rack, conveying groove etc. Oil cylinder uses standard hydro-cylinder; Rack use high quality welded steel frame; The rubber cutting knife is made of 9CrSi or T8A, through heat treatment its hardness reaches HRC60. Below the cutting knife is nylon board to protect the knife edge.
| type | XQL-80 | XQL-120 | XQL-125 |
| Width(mm) | 660 | 760 | 760 |
| Stroke(mm) | 680 | 680 | 780 |
| Total Pressure of Oil Cylinder(KN) | 80(about) | 120(about) | 125(about) |
| Time Taken by the Stroke | 14-16 | 13-16 | 14-16 |
| Power(KW) | 5.5 | 5.5 | 5.5 |
| Overall Diameter (LxWxH) (mm) | 1800x600x2450 | 2300x1500x2530 | 2400x1500x2530 |
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is a professional manufacturer in rubber machine field of China with high-tech technology. Our factory is located in Jiaonan County of Qingdao, which is very near from Qingdao Port and Qingdao steel factory. To a great extent, it is saving the logistics cost. We have ISO9001: 2008, BV. And if you need other certifications, we will make it for you according to your requirements. Our customers spread all over the world, such as the United States, Germany, Mexico, Colombia, Canada, Singapore, Malaysia, Australia, Korea, Japan, India, Russia etc.
There's experienced engineers and outstanding technical teams in our factory. We could make a professional design specially for you. We often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which could meet the requirements of the customers. And we also could design and manufacture various non-standard products according to users requirements.
Our main products including: Rubber kneader, rubber mixing mill, rubber sheet cooling machine (batch off cooler), all kinds of rubber vulcanizing press machine (semiautomatic and full automatic), rubber extruder, waste tire recycling production line (rubber powder production line and tire retreading equipment) etc.
In order to provide better service and wonderful machines, we will do everything that we could do for each customer.
1. Our company's machines must pass inspection of 3-7 hours of load test operating before they leave the factory, in order to save customers' time and expense of equipment commissioning. And we will send the video to the customers to check. And we also support customers to visit our factory to check the test operating on site if it's convenient for the customers.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge until the problems are solved.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete pre-sale service and after-sales service.
5. Complaints and suggestions please email to us. Thank you.
