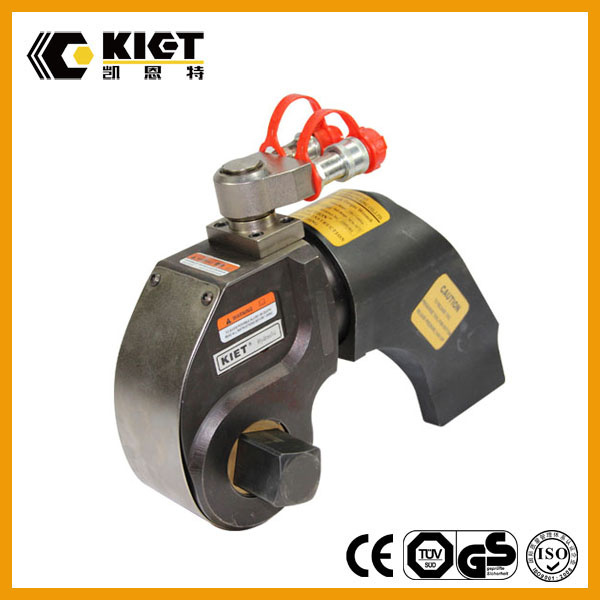

S3000 Steel Square Driven Hydraulic Torque Wrench

Prod Model:	KET-S Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	S3000 Steel Square Driven Hydraulic Torque Wrench
Maximum Pressure:	700 Bar
Square Drive Range:	3/4-2 1/2 Inch
Torque Range:	1898-34079nm
Weight:	2.7-31kg
Color:	Can Customized
Spare Parts Available:	Yes
OEM:	Yes
Delivery:	7-20days
Type:	Torque Wrench
Material:	Alloy Steel
Standard:	Metric
Surface Treatment:	Titanizing
Feature:	Anti-Explosion
Brand:	Kiet
Handle Color:	Customized

Product Description

S3000 Steel Square Driven Hydraulic Torque Wrench

Production Description

KIET hydraulic torque wrench is powerful solution for high tensile bolt and nuts tightening and releasing. The hydraulic torque wrench is ultimate tool in heavy duty work. KIET hydraulic torque wrench offers standard products up to 70,000 Nm, with bolt size up to 125mm, and hexagon across flats up to 180mm. We have customized hydraulic torque wrench up to 160,000 Nm for the world's biggest man made dam - The Three Gorge Dam on the Yangtze River.

Parameter

Model	Socket range		Square Drive(In)	Max Nm under 700bar	Socket size
	mm	inch			mm	inch
KT-S1500	15-50	5/8-1 7/8	3/4"	1898 Nm    1400 ft.lbs	14-24	2/1-1
KT-S3000	20-100	7/8-3 7/8	1	4339 Nm     3200 ft.lbs	17-32	5/8-1 1/4
KT-S6000	41-155	1 5/8-6 1/4	1 1/2"	8144 Nm      6010 ft.lbs	17-32	5/8-1 1/4
KT-S11000	41-155	1 5/8-6 1/4	1 1/2"	14914 Nm    11000 ft.lbs	30-46	1 1/4-1 3/4
KT-S25000	60-255	2 3/8-10	2 1/2"	34079 Nm     25140 ft.lbs	36-85	1 1/2 -2 1/4

Features
1. 360 º x 180 º rotating tubing connector, without the use of space limitations, easy to operate
2. Drive shaft Zhu button release, fast switching tighten and removal of the state
3.  Cylinders and power head shape is small, light weight, compact structure, small operating radius
4. Single operation nut corner too fast cylinder mesh process. High working efficiency
5. The reaction force in a straight line, reducing the internal torque loss
6. The cartridges torque wrench entire work process provides high accuracy
7. Easy to maintain, requiring no special tools
8. Surface of the torque wrench is nickel plated, with good anti-corrosive


Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd.is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

 Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Our Services

KIET provides one year guarantee  for all the hydraulic Wrench. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.

FAQ
Q1: How to contact sales?
A1: Please call or email us.

Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.

Q3:  How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
  and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.

Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products  (refer to our model), it can be produced in 100 days. If it is customized, not our standard products, it will take 20-45 days to produce.
