| Prod Model: |
NWP4 |
| Thread Available: |
Bsp /NPT /SAE |
| Standard: |
ISO 16028 |
| Material: |
Steel |
| Surface Treatment: |
Zinc Plated |
Product Description

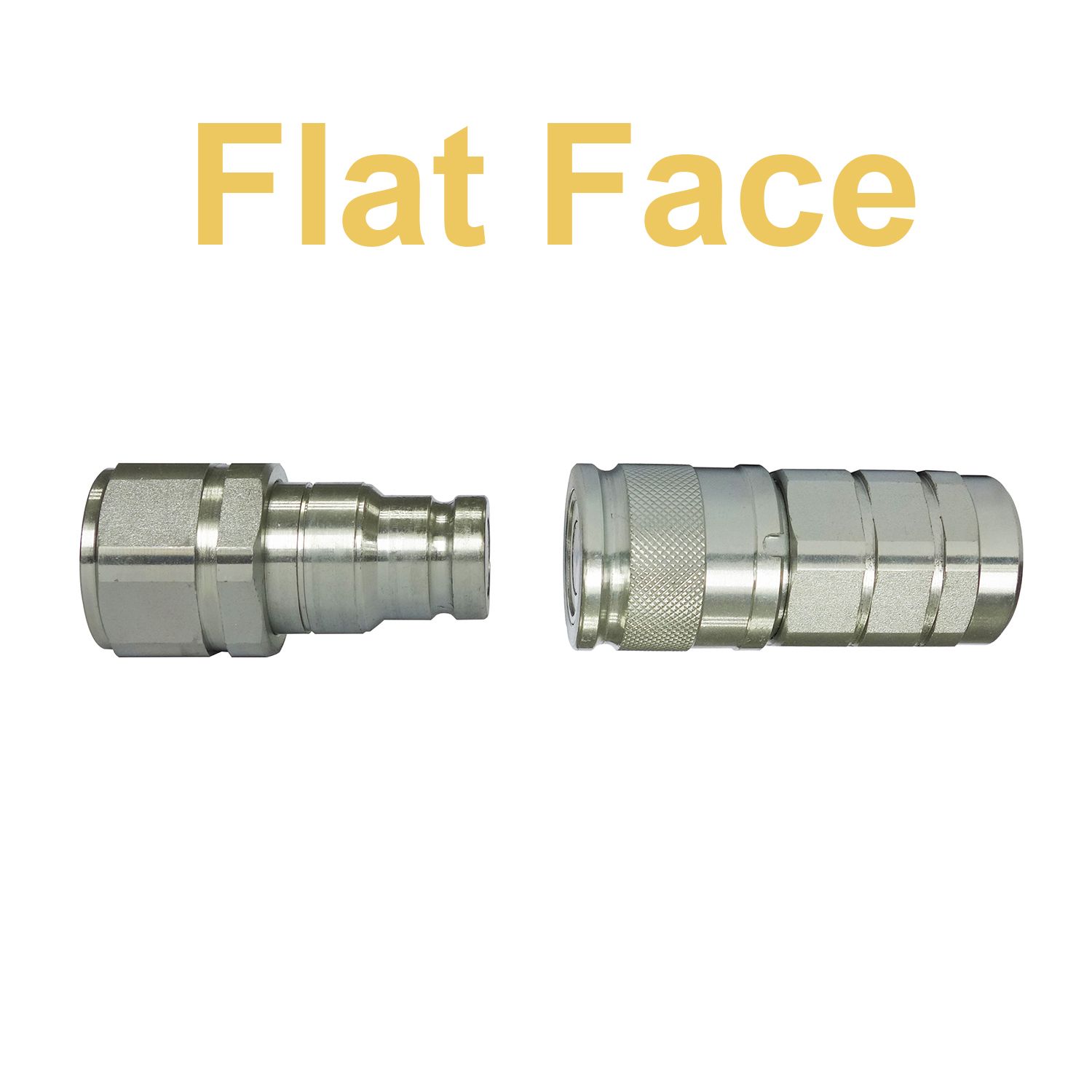

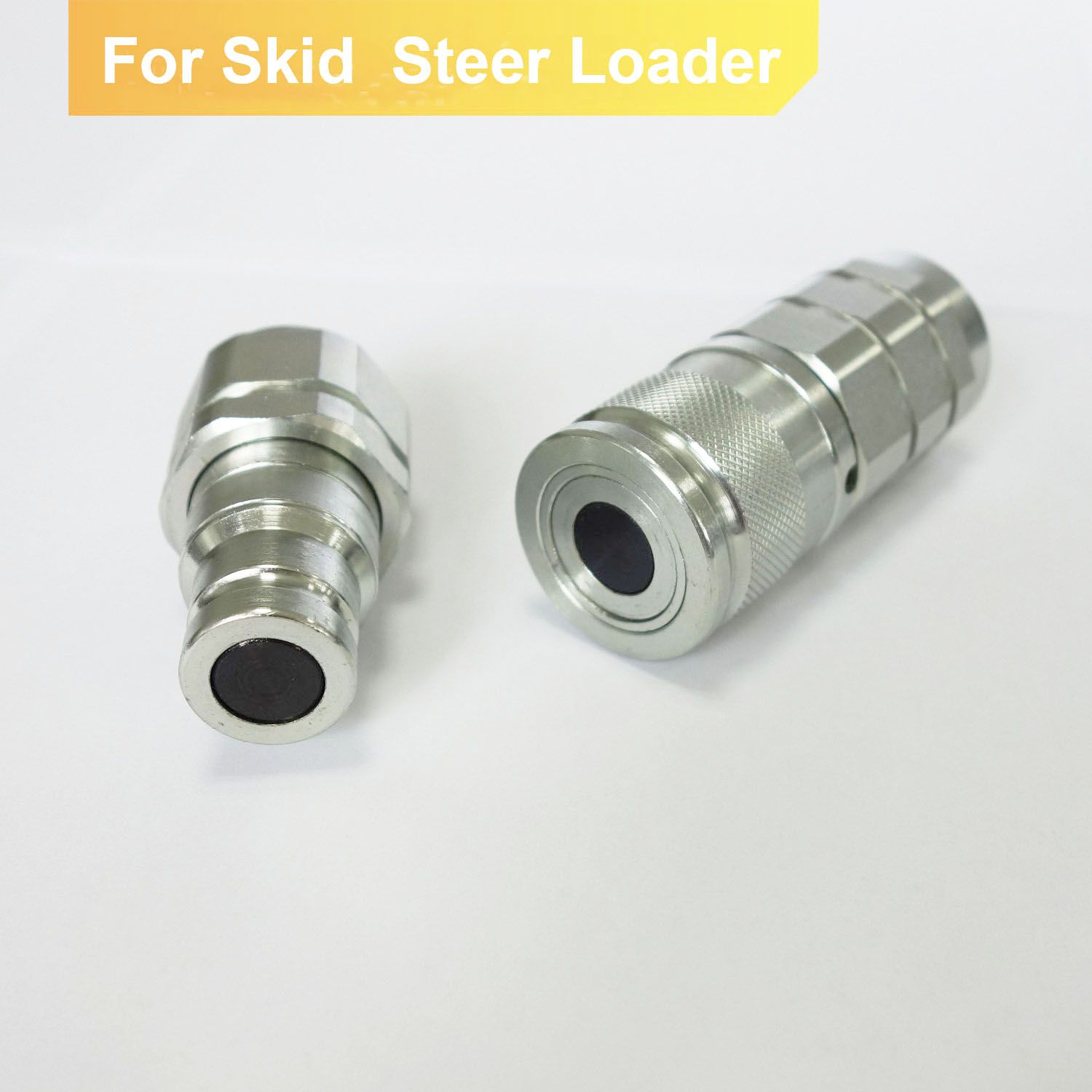

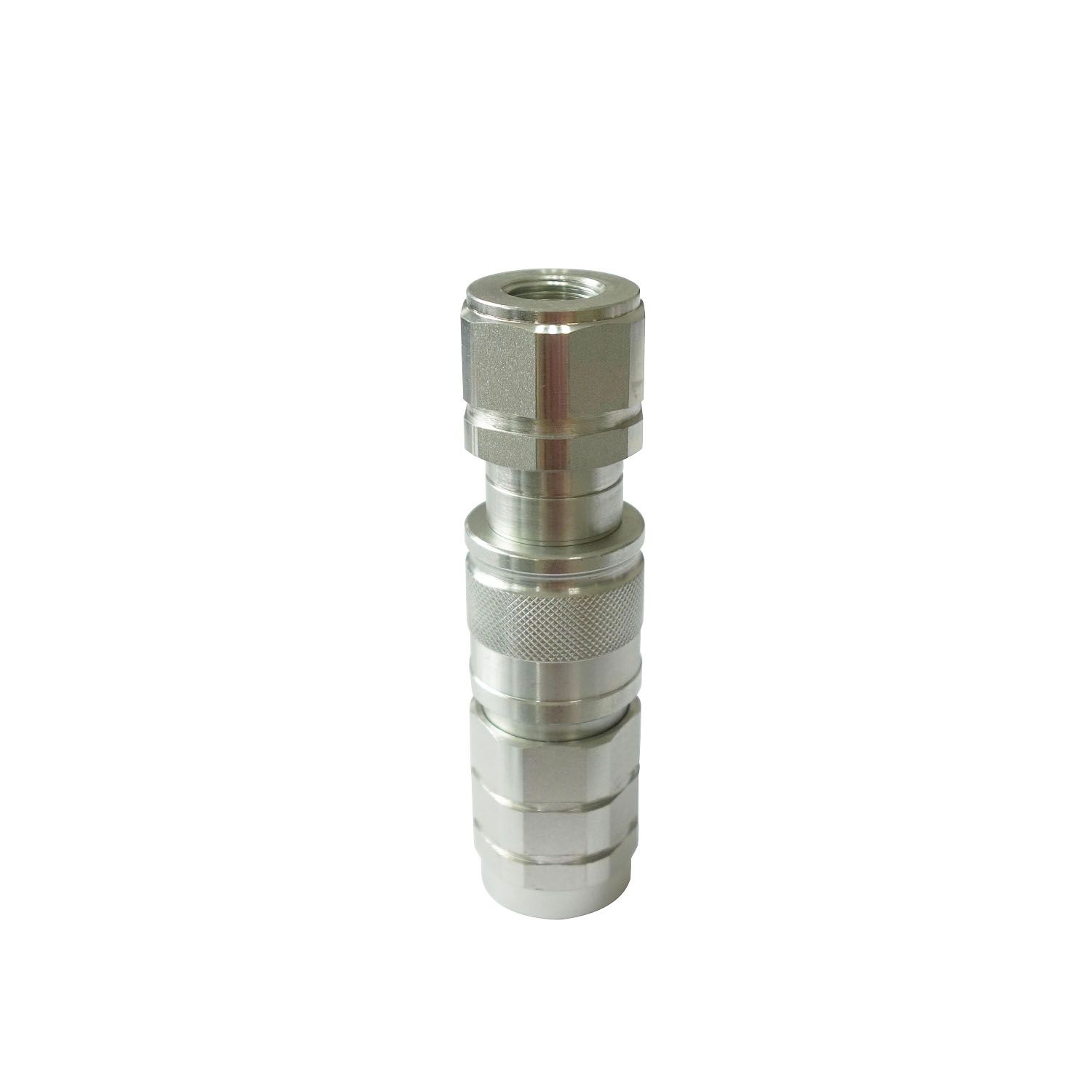

NWP4 Series Quick Coupling (steel)
Product Feature
- Meet the standard ISO16028
- Push and pull connection
- With safe lock to avoid accidental disconnection
- Standard material: Carbon steel
- Standard seal: Nitrile rubber, fluoride rubber
| Seal elastomer data |
| Seal | Maximum working temperature range |
| Nitrile rubber | -20ºC to +100ºC |
| Fluoride rubber | -25ºC to +150ºC |
Product Parameter Size
(in) | ISO
(mm) | Max Working Pressure
(bar) | Rated Flow
(l/m) | Min Blast Pressure
(bar) | Fluid Loss
(ml-cc) |
|
| Connection | Connection | Male | Female |
| 1/4 | 6.3 | 400 | 12 | 1900 | 1900 | 1900 | 0.008 |
| 3/8 | 10 | 350 | 23 | 1600 | 1560 | 1780 | 0.01 |
| 1/2 | 12.5 | 350 | 45 | 1770 | 1700 | 1590 | 0.012 |
| 3/4 | 16 | 350 | 74 | 1580 | 1660 | 1420 | 0.015 |
| 1 | 20 | 350 | 100 | 1840 | 1600 | 1470 | 0.02 |
| 1-1/4 | 25 | 350 | 189 | 1530 | 1470 | 1400 | 0.03 |
| 1-1/2 | 31.5 | 230 | 288 | 800 | 700 | 320 | 0.05 |
| 2 | 40 | 150 | 379 | 600 | 600 | 280 | 0.1 |
Application RangeHydraulic & fluid deliveryBuilding equipmentAgriculture machineMulti purpose vehicleRoad vehicleFixed hydraulic equipment & fluid transport in factoryInterchangeabilityFASTER 2FFN/2FFI seriesPARKER FEM seriesHANSEN FF seriesAEROQUIP FD89 seriesPhoto Details
Hebei Naiwo Fluid Technology Co. Ltd is located in matou economic development zone of hebei province, China. We are specialized in production of NAIWO brand quick coupling(ISO16028, ISO7241-A, ISO7241-B) with stainless steel, carbon steel and brass material. The quick coupling can be widely used for metallurgy, oil, chemical, food, shipbuilding, agriculture machine, construction machine, special car/truck, paper making, drilling platform and other fields.
We take the "leading technology, excellent quality, perfect service" as the company culture and management concept, focus on strict production procedures and related testing equipment, which help our factory win the clients' praise and trust all over the world.
