| Price: | US $ 1/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | ZKZB-125/ZKZB-200/ZKZB-330/ZKZB-420 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trade Mark: | Yc |
| Material: | Stainless Steel |
| Volume: | 420L |
| Power: | 144.4kw |
| Vacuum Level: | 0-(-0.085) |
| Certifity: | Ce, SGS |
| Cutting Spped: | 300-4200 |
| Cutter Number: | 6 |
| Bearing: | Sweden SKF Fr.&Re. Bearing |
| Electric: | Swiss ABB Electrics |
| Type: | Bowl Cutter |
| Voltage: | 380V |
| Customized: | Customized |

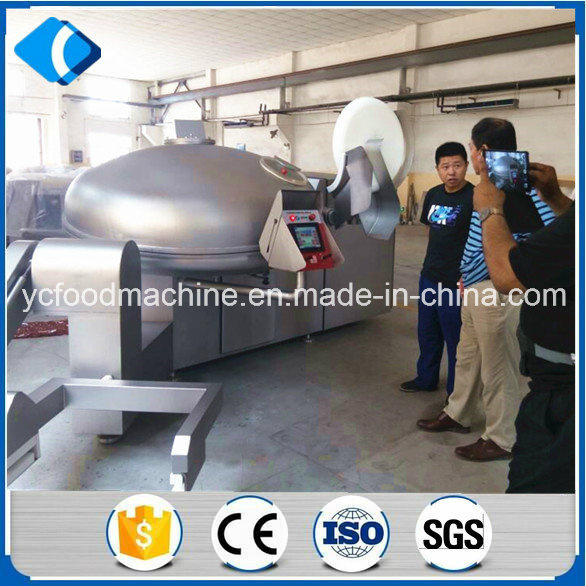

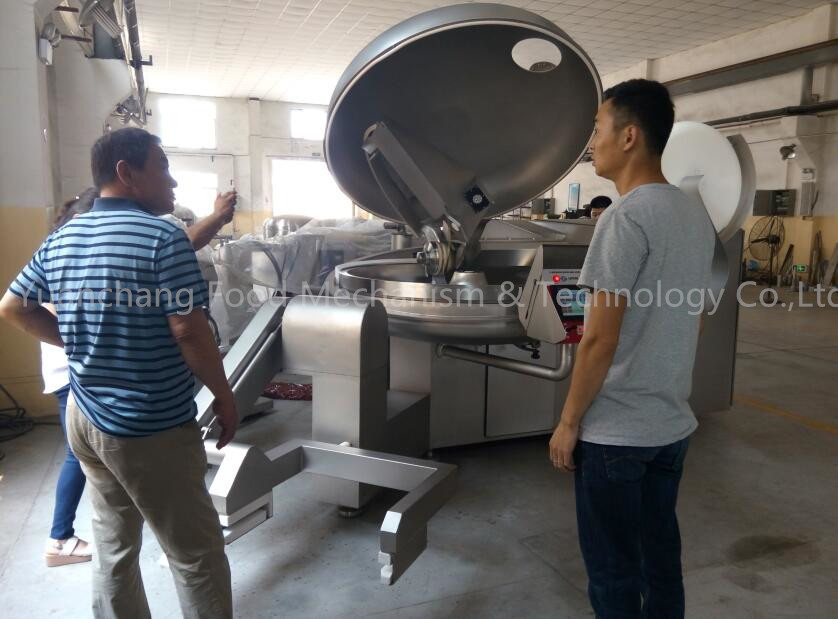

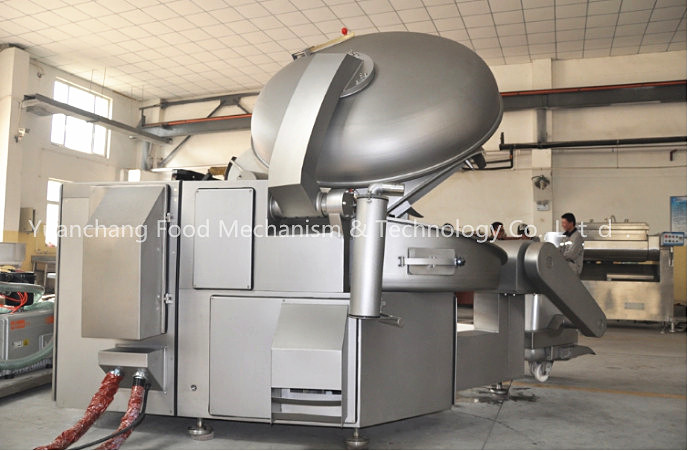

YC Mechanism Vacuum Bowl Cutter Technology is founded on practical development with many years of experiences. Modern, high-capacity machine for industrial production of all types of top quality sausages, such as dry sausages, boiled sausages, cooked sausages and canned goods. We are known throughout the meat industry for the quality and reliability of our range of bowl cutters, manufacturing a few Models from 125 L to 420 L.

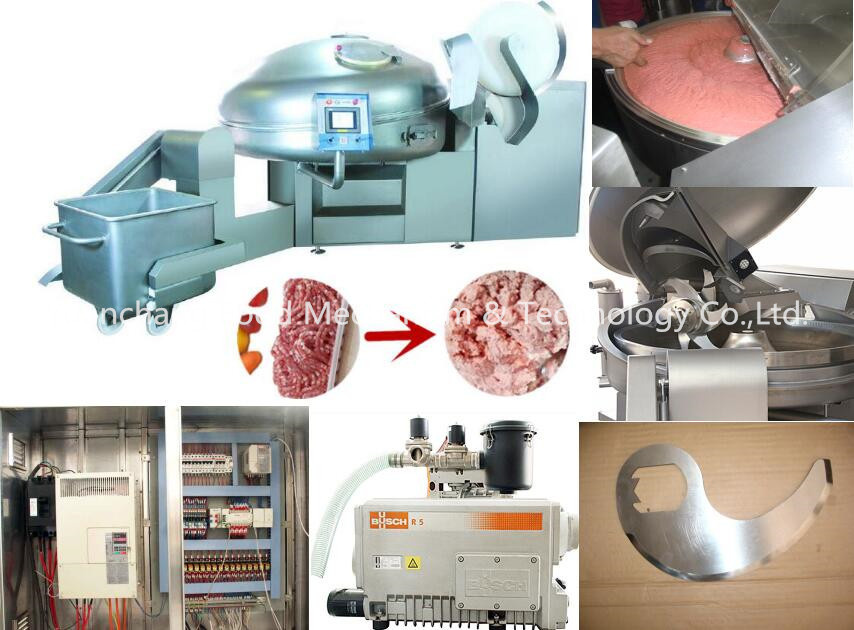

Vacuum Cutter Series is combined with Siemens Motor, Germany Busch vacuum pump, USA EMERSON or Denmark DANFOSS frequency control technology, Sweden SKF bearings, Swiss ABB electrics, Japan Mitsubishi PLC and options on much more other imported parts upon requested.
Due to excellent coordination of cutting speeds, bowl speeds and form of knives, we offer the technology for processing large pieces of meat. Saving time isn't the only advantage of using our Vacuum bowl cutter to emulsify, coarse chop or fine chop products. Not only is the grind/mix/regrind process time consuming, but you are missing an opportunity to extract the maximum amount of protein from your meat mixture so you can produce high-quality, value-added products. Maximum protein extraction translates to increased binding and weight retention, which equals less cookout and increased yields.
| Model | Volume (L) | Cutting Speed (r/min) | Pot Speed (r/min) | Discharger Speed (r/min) | Power(KW) | Cutter Quantity(Pc) | Rated Voltage(V) | Vacuum Level(Mpa) | Weight(Kg) | Dimensions(mm) |
| ZKZB-125 | 125 | 300-4200 | 0-10 | Infinately variable drive(Speed gear-shift is also available upon request) | 35.2 | 6 | 380 | -0.085 | 2425 | 2160*1750*1300 |
| ZKZB-200 | 200 | 400-4000 | 0-10 | 86.4 | 6 | 380 | -0.085 | 4100 | 3280*2590*1500 | |
| ZKZB-330 | 330 | 360-3600 | 0-6 | 102.4 | 6 | 380 | -0.085 | 5000 | 3850*3000*1750 | |
| ZKZB-420 | 420 | 360-3600 | 0-6 | 144.4 | 6 | 380 | -0.085 | 5800 | 3940*3030*1850 |

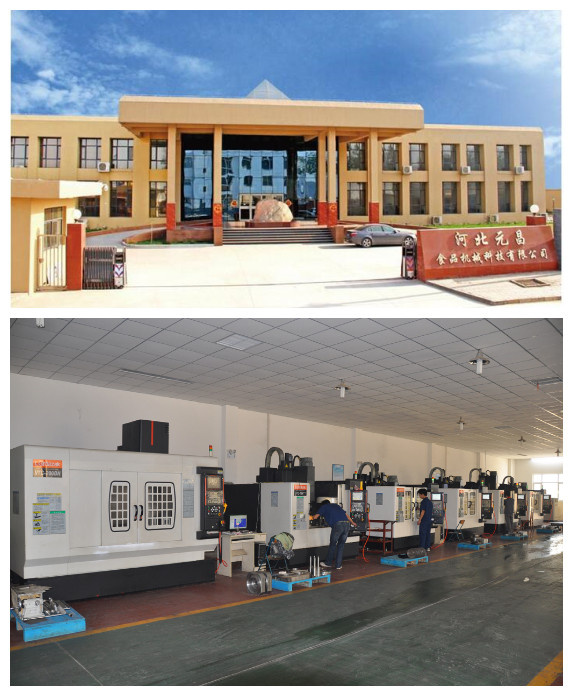

Yuanchang Food Mechanism & Technology co.Ltd established in 1986, processes a group of excellent technicians and qualified professionals. Distinguished ourselves through our quality and reliability.We specialized in producing various kind of meat sausage processing machines for sausage playing the Leading Role in the China's meat machinery industry dealing with most Meat Industry Owners for many years. We invented new style pneumatic aluminum-coil dual clipper & Mechanical Greatwall dual clipper which have replaced the old ones, consider originator of the whole machine's movement. Designing different requirements of the machinery will be possible. The outstanding quality we made, advanced technique, abundant strength, it holds advanced professional technology in domestic meat produce as well as customer's high praise. Hence occupies the excellent economic and social efficiency for customers and enterprise.
