| Prod Model: |
YH-QF003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stand: |
DIN, SMS, 3A, ISO |
| Size: |
Dn25-Dn100 1"-4" |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Food, Beer, Beverage, Milk, Pharmacy |
| Connection Form: |
Welded, Threaded, Clamped, Flanged |
| Driving Mode: |
Manual, Pneumatic |
Product Description
Applications

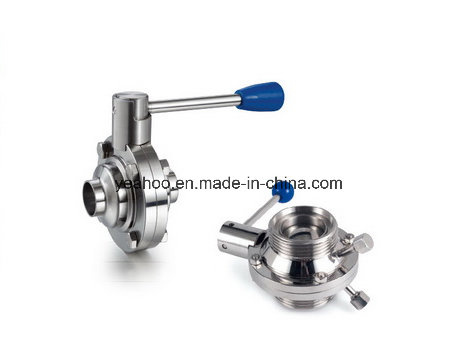

sanitary butterfly-ball valve is manual or pneumatic, use for stainless steel pipe system. best choice for medium with emplastic and grain in sanitary area. it is for food, drink, pharmacy and chemical.
Operating Principle
butterfly-ball valve, manual and pneumatic control. simple structure like butterfly valve. dissassembly easily. with ball valve less resistance, flexible opening, use to more area, and long life time. with setting for drainage. no medium remaining.
Technical Data
Metal material | Product wetted | 304L/316L (1.4307/1.4404) forged |
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate. |
Seal material | Standard | PTFE/EPDM
All seal materials comply with FDA 177.2600. |
Options | FPM/PTFE, HNBR/PTFE, SILICONE/PTFE |
Temperature | Continuous working temperature | -20~+135ºC(EPDM/PTFE) |
Sterilization temperature | 150ºC(max 20min) |
Working pressure | 10bar |
|
Surface treatment | Internal surface | Ra≤0.8μm |
External surface | R≤1.6µm |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: Inch pipe diameter standard |
Connection methods: welding, thread, clamp, flange |
|
|
|
|
|
Any question, be free to contact us, we are professional manufacturer for this field for more than 10 years. We will reply you within 24 hours. We are here waiting for your Sincere cooperation.
We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valve and OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum and chemical industry area, etc. Its advantages are with forging, heat treatment and machining.
We have many many testing equipemnts and instruments. Which are dimensional measuring machine, spectroscopic analysis equipment, hardness equipment, optical instrument etc.
We have the best team of experts in the management and technology. We design and produce our products as BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS etc stanrard strictly. We test each step from raw-material to finished products. They avouch us to control the material quality, and finished products quality.
So far quality controls systems ISO9001 and Safety "CE" certification, and SGS had gotten through..
We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valve and OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum and chemical industry area, etc. Its advantages are with forging, heat treatment and machining.
We have many many testing equipemnts and instruments. Which are dimensional measuring machine, spectroscopic analysis equipment, hardness equipment, optical instrument etc.
We have the best team of experts in the management and technology. We design and produce our products as BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS etc stanrard strictly. We test each step from raw-material to finished products. They avouch us to control the material quality, and finished products quality.
So far quality controls systems ISO9001 and Safety "CE" certification, and SGS had gotten through.
Wenzhou Yeahoo Industrial Co., Ltd with many year's constant effects, we started our own business by experience accumulation and source integration. We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valve and OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum and chemical industry area, etc. YEAHOO enterprise, its advantages are with forging, heat treatment and machining. Has many forging machines of 400Ton, 630 Ton, 1000Ton, free forging and ring forging limit 280.00cm under making new toolings by ourselves. In additional, we have machining centre with more 15 MAZAK CNC machines and many milling machines. YEAHOO's Lab has many many testing equipemnts and instruments. Which are dimensional measuring machine, spectroscopic analysis equipment, hardness equipment, optical instrument etc.
We have the best team of experts in the management and technology. We design and produce our products as BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS etc stanrard strictly. We test each step from raw-material to finished products. They avouch us to control the material quality, and finished products quality.
YEAHOO continue pursuing superior grade quality and steady development. So far quality controls systems ISO9001 and Safety "CE" certification had gotten through. Products of "YEAHOO" Brand is sold to Europe, South America, North America, south east Asian country and Area. Creating a YEAHOO culture based on "innovation, service and cooperation". With outstanding management, advanced technical equipment, we provide high lever products and perfect services to our clients.
Building a trusted brand of "YEAHOO" and becoming a leader for valves and fittings. Let's cooperation together.
