| Prod Model: |
YH-DF001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn25-Dn100 1"-4" |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Food, Beer, Beverage, Milk, Pharmacy |
| Driving Mode: |
Manual or Pneumatic |
| Connection Form: |
Weld, Thread, Clamp, Flange, Three-Piece Flange |
Product Description
Applications

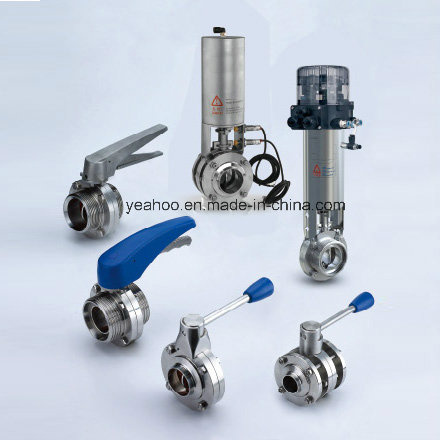

sanitary butterfly valve is a sanitary automatically or manually operated butterfly valve. It is well suited for various applications in stainless steel pipe systems.
Operating Principle
sanitary butterfly valve can be either remote-controlled by an actuator or manually operated by a handle.
The actuator has three standard types, namely normally closed (NC), normally open (NO) and air/air activated (A/A).
The actuator transforms the axial movement of a piston into a 90° rotation of a valve shaft. The torque of the actuator is increased when the valve disc in the valve body contacts the gasket of the butterfly valve, the valve is closed then.
The butterfly valve can be mechanically locked in open, closed, middle or other positions by selecting different manual handles to regulate the flow.
Technical Data
Metal material | Product wetted | 304L/316L (1.4307/1.4404) forged |
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate. |
Seal material | Standard | EPDM
All seal materials comply with FDA 177.2600. |
Options | NBR,FPM,Silicone
All seal materials comply with FDA 177.2600. |
Temperature | Continuous working temperature | -20~+135ºC(EPDM) |
Sterilization temperature | 150ºC(max 20min) |
Pressure | Working pressure | 0~10bar(standard) |
Control air pressure | 5~8bar |
Surface treatment | Internal surface | Ra≤0.8μm |
External surface | R≤1.6µm |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: Inch pipe diameter standard |
Connection methods: welding, thread, clamp, flange |
Options | Smart controller | 24V DC |
Solenoid valve (1 or 2) |
Position sensor | 24V DC |
NPN/PNP position sensor (2) |
