| Prod Model: |
Mj6138td |
| The Name: |
Panel Saw |
| Dimension Of Sliding Table: |
3800*375mm |
| Gross Weight: |
850kg |
| Model: |
Mj6138td |
| Gross Cut Capacity: |
3200mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
CE |
| Power Type: |
Manual |
Product Description

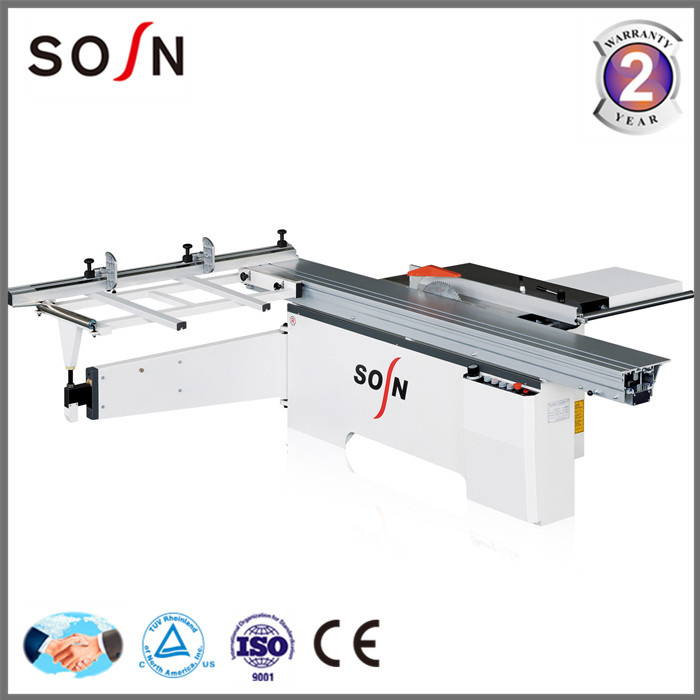

For one of our main products precision panel saw MJ6138TD
PACKING WITH WOODEN CASES(,8 SETS/20GP,24sets for a 40GP )
Round rod structure table, 45 tilting degree

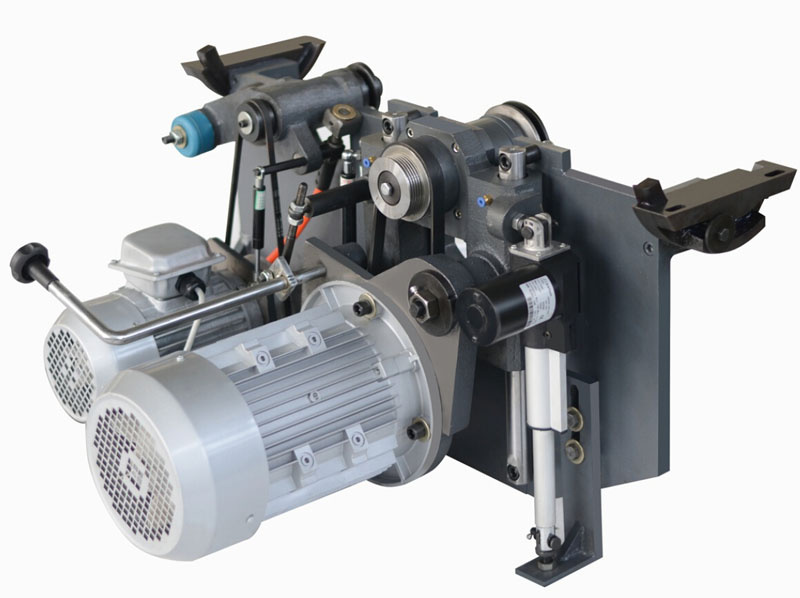

1, electrics : Chint brand 2 , motor 5.5+1.1, with copper wire .3,14 fixed points on the machines to make sure the no changable.4 ,dynamic balance.5 ,much heavier.6, can design as your need
| Dimension of sliding table | 3800x375mm |
| Gross cut capacity | 3800mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-350mm) |
| Height of cut (300mm) | 80mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45° |
| Main motor | 220v/380v/415v, 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight | 1000kg |
| Packing size of machine body(L*W*H) | 2200*1150*1100mm |
| packing size of sliding table(L*W*H) | 3950*480*320mm |
Our products can be classified as
According to the tilting: 45 degree(T) and 90 degree
According to the structure: Linear(Z), Round rod(D) and Altendrof(A)
The cutting capacity is from 1500mm to 3800mm( usually we have 1600mm, 2200, 2600, 2800, 3000, 3200,3800mm)
Manual operation, Semi-automatic and automatic precision panel saw
8 sets for a 20GP container
24 sets for a 40GP container
Note:
The warranty period of the machine body is one year, 3 months for easy-broken parts(we send easy broken parts for after-sale service).
2) 30% payment IN ADCANCE by T/T,the balance 70% on proof of readiness of machines.
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
