Security Door Lock System Biometric Fingerprint Lock

Prod Model:	JYF-3001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lock Material:	Zinc Alloy
Model Type:	Fingerprint Lock (Jyf-3001)
Fingerprint Capacity:	100
Password:	10
Communication Model:	USB Flash Disk
Methods:	Fingerprint, Password, Mf Card, Mechanical Key
Temperature:	-20 Degree-70 Degree
Power Input:	4 X 1.5V AA Battery
Backup Unlock Mechanism:	Emergency Battery & Mechanical Key
Fingerprint Battery Life:	5000 Times
Material:	Zinc Alloy
Style:	Modern
Shape:	Mortise Door Lock
Anti-theft Standard:	A
Part:	Lock
Door Thickness Fits:	35-50mm
Usage:	Channel Lock
Type:	Fingerprint Lock
Lock Cylinder Length:	240mm

Product Description

Security Fingerprint Lock biometric door lock system  (JYF-3001)




Features:

1. Support Fingerprint, password, card and mechanical

2. Touch Screen

3. Fingerprint capacity: 100pcs

4. Password capacity: 10 pcs

5. pasowrd combination: 8 number

6. Unlock records: 350
7. Color: Silver, golden, anti-red
8. optional: remote control

Specification:

Specification for fingerprint password door lock
Color	Silver, golden, anti-red
Unlock method	Fingerprint, password,Remote control, Cards and mechanical key
Material	zinc alloy
Power	4 pcs 1.5V LR6 AA Alkaline Batteries, DC 6V
	normally continuous opening
Card type	MF1
Password battery life	6000 times
Password capacity	10pcs
Password combination	8 numbers
Fingerprint battery life	5000 times
Fingerprint capacity	100pcs
Fingerprint identifying angle	360°
False acceptance rate	≤0.0001%
Working temperature	-20 degree-70 degree
Working humidity	20%-95%
Accepted for door thickness	35~55mm
Lock weight	6.2-6.5kg
Static working current	≤30μA
Dynamic working current	≤200mA
Reading distance	≤3mm
Reading Time	less than 1s
Unlock records	Lastest 350pcs unlock records
System protection function	Automatically enter the power saving mode without 10s operation
Antistatic interference ability	≤15KV
Low power alarm	less than 4.8V(100 times at least)

Unlock methods: fingerprint, password, cards and mechanical keys

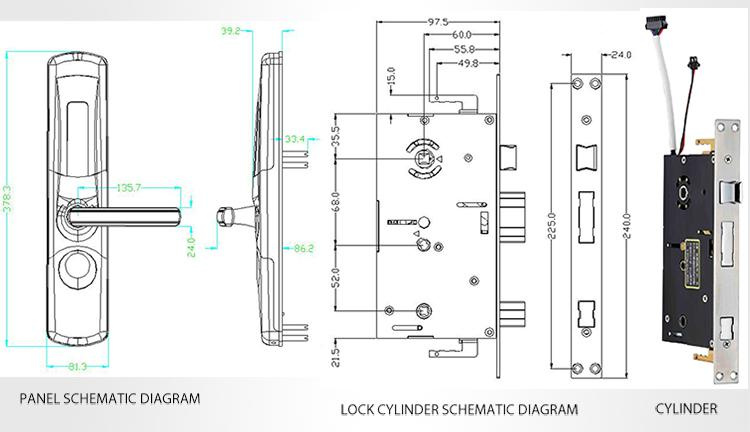

Panel and lock cylinder schematic diagram

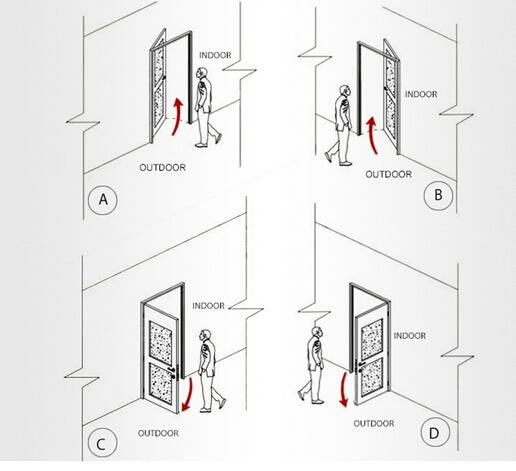

The handle installation directions for door locks

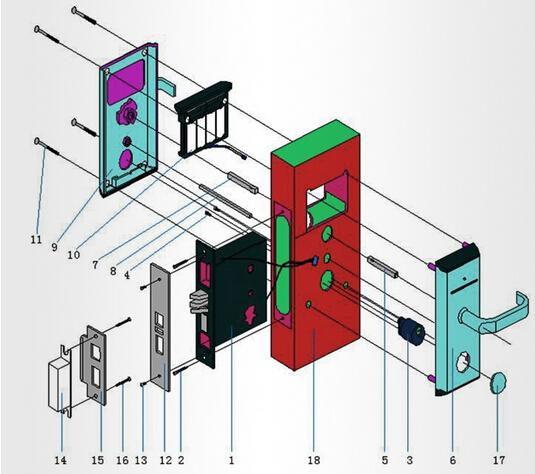

How to install the door locks?

1	Llock cylinder	10	Battery Pack (includes batteries)
2	Cross recessed round head wood screws	11	Inner hexagon screw
3	Mechanical  Headlock	12	Side trim panels
4	Inner hexagon screw (headlock)	13	Cross recessed countersunk head tapping screws
5	Big square axis	14	Pinch plat plastic case
6	Front Panel	15	Lock  pinch plate
7	Big square axis	16	Cross recessed round head wood screws
8	Long square axis	17	Headlock cover
9	Rear Panel	18	Door
