| Prod Model: |
JYF-LM200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Type: |
Very Very Cost Effective Biometric Fingerprint Doo |
| Lock Material: |
Zinc Alloy |
| Methods: |
Fingerprint,Key |
| Fingerprint Templates: |
90 |
| Door Thickness: |
30-60 Mm |
| Lock Backset: |
60 or 70 Mm(Adjustable) |
| Color Option: |
Silver/Champaign Gold |
| Back Up Battery: |
4X AA Battery |
| Battery Life: |
Approximate 1 Year |
| Operating Temperature: |
0 - 45 Degree |
| Anti-theft Standard: |
A |
| Part: |
Lock |
| Usage: |
Bedroom |
| Shape: |
Mortise Door Lock |
| Material: |
Zinc Alloy |
| Backset: |
60mm |
| Door Thickness Fits: |
Customized |
| Lock Cylinder Length: |
65mm |
| Style: |
American Standard Single Latch |
| Type: |
Fingerprint Lock |
Product Description

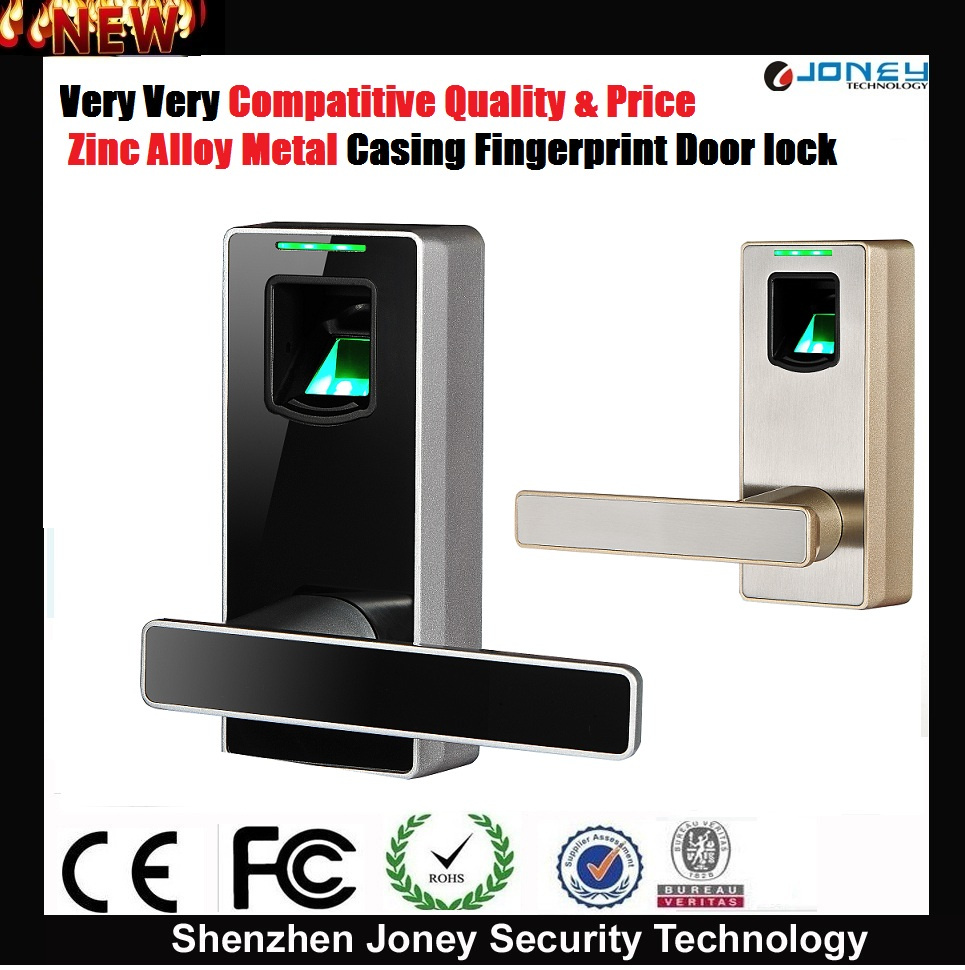

Zinc Alloy Metal Biometric Fingerprint scanner Door lock for home ,office ,apartment
Introduction:fingerprint lock biometric lock biometric fingerprint door lock
LM200 is a smart lock with embedded fingerprint recognition technology. It is DIY design,which can replace knob lock easily and quickly. You even can do it by yourself.
Features:
With the new generation fingerprint recognition algorithm
？ Rugged, sleek and compact design
？ American standard single latch for easy replacement and installation
？ Independent clutch motor design under patent protection
？ Idle handle design to prevent from forcible entry
？ Registration data are stored even if there is power loss
？ Handle,latch and strike is reversible design for all door open direction
？ Infrared sensor-Touch to open
？ Emergency key override (concealed)
？ LED indicator and inbuilt buzzer
？ External terminals to draw back-up power from a 9V battery
？ Low battery warning
？ Normal Open mode
？ Easy to program and easy to use
？ Easy to install-no wiring required
？ 3 user groups - Admin, Normal User and Temporary User
？ Backset is 60 mm or 70mm (adjustable)
？ External terminals to draw back-up power from a 9V battery
Specifications:
Material |
Zinc Alloy |
User Capacity |
Admin -10 |
|
Normal User - 60 |
|
Temporary User - 20 |
Operating Temperature |
0 °C- 45 °C |
Power Supply |
4 x AA Alkaline Battery |
Backup Unlock |
Mechanical Key & 9V Battery |
Door Thickness |
30-38 mm (optional) |
|
39-46 mm (standard) |
|
47-54 mm (standard) |
|
55-60 mm (optional) |
Dimensions |
Front - 69(W)×155(L)×35(D) mm
Back - 69(W)×155(L)×25(D) mm |
Shenzhen Joney Security Technology Co., Ltd is specializing in developing, manufacturing and marketing of security products.
Our products include below:
1. CCTV: IP & Analog system, integrated video alarm system, etc.
2. Access control: Biometric devices, RFID system and Locks.
3. Meanwhile we are the Agent for some top level brands in China like Dahua, Hikvision and ZK Software, with large quantity in stock to make fast delivery.
Established in 2009, We serve more than 300 customers worldwide, 2 factories with a total area of 1500 square meters, Key components from Sony, Sharp, Panasonic and LG.
100QC inspectors ensure the all of our items bear CE, FCC and RoHS marks, 8 QC inspection steps before shipping, 18 months warranty.
20 engineers and 50 technicians will work on your OEM/ODM requirements and after sale service.
500-piece orders are shipped within 7 working days.
To benefit from our excellent service and products, Please contact us today.
