| Prod Model: |
HZ102456 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
300mm~4000mm |
| Welding: |
High-Frequency Welding |
| Manufacturing Art: |
Sinter, Cold-Pressed, Polishing, Silver Welding |
| Feature: |
Accurately, No Chipping, Speed, Sharp, etc |
| Diamond Saw Blanks Type: |
Silent and Non Slient Saw Blade Is Available |
| Packing Process: |
Edged, Polishing, Printed, Packed |
| Printing: |
Logo & Main Operating Info. |
| Packing Material: |
Rustproof and Waterproof Packaging |
| Delivery Date: |
30 Days After Payment |
| OEM/ODM: |
Accepted |
| Usage: |
Plastics, Laminate Plate |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Saw Blade |
| Saw Blade External Diameter: |
100mm-3500mm |
Product Description
Diameter: 300mm~4000mm
Specification of diamond segment:
Application: Granite slab, granite edge cutting
Silent blade and normal blade are available
Bore: 60/50
Feature: Fast cutting speed, sharp enough.

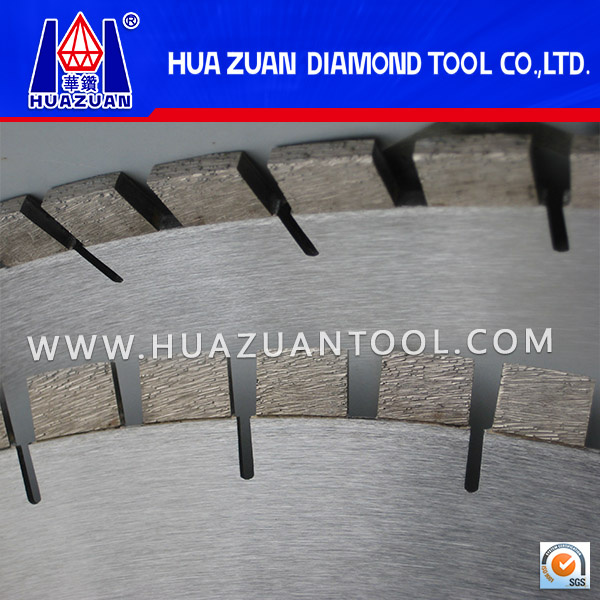

1. Segmented saw blade, fast cutting, long working life, general-purpose application, tidy edge, no edge collapsing. Specially apply to cut high standard edge and corner.
2. Shape: Sandwich, groove segment, taper type, K type, double V type, M type
3. The segments can be welded on the saw blank silver welded.
High-frequency welding, especially for the sharpness request; Imporve working conditions and reduce environmental pollution, reduce frictional heat gain and noise.
4. All specificaitons can be ordered by customers.
NOTE:
Please use high frequency silver welded machine to make the brazing if you only order diamond segments, and not to use fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced.
Size from 300 to 3500mm(as follow table)
About us
1. We are manufacturer, we have advantages in quality and price.
2. We specialize in diamond tools for more than 20 years since 1986, with good quality and best service.
3. Our factory is a leading China supplier of standard and custom engineered diamond tools.
4. We are willing to cooperate with clients from all countries based on the equality and mutual benefit.
5. Our main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe...
6. Export Percentage: Over 90%
==========================================
Quanzhou Huazuan Diamond Tools Co., Ltd.
Nora Shangguan
MP: 0086-18759965040
Tel: 0086-595-86780371
Fax: 0086-595-86780372
|
Diameter |
Segment Dimension |
NO. on one blade |
|
Segment Length |
Segment Thickness |
Segment Height |
|
HZ-350 |
40 |
3.0/3.2 |
8/10/12/15 |
24 |
|
HZ-400 |
40 |
3.4/3.6 |
8/10/12/15 |
28 |
|
HZ-450 |
40 |
3.8/4.2 |
8/10/12/15 |
32 |
|
HZ-500 |
40 |
4.0/4.2 |
8/10/12/15 |
36 |
|
HZ-600 |
40 |
4.6/4.8 |
8/10/12/15 |
42 |
|
HZ-700 |
40 |
5.0/5.2 |
8/10/12/15 |
50 |
|
HZ-800 |
40 |
5.5/6.0 |
8/10/12/15 |
57 |
|
HZ-900 |
24 |
6.0/6.8 |
12/13/15/20 |
64 |
|
HZ-1000 |
24 |
6.0/7.0 |
12/13/15/20 |
70 |
|
HZ-1200 |
24 |
6.5/7.5 |
12/13/15 |
80 |
|
HZ-1600 |
24 |
8.4/9.0 |
12/13/15/20 |
108 |
|
HZ-1800 |
24 |
9.1/9.7 |
12/13/15/20 |
120 |
|
HZ-2000 |
24 |
10.5/11 |
12/13/15/20 |
128 |
|
HZ-2500 |
24 |
11/12 |
12/13/15/20 |
140 |
|
HZ-3000 |
24 |
11.5/12.5 |
20/25/33 |
160 |
|
HZ-3500 |
24 |
12/12.5 |
20/26 |
180 |
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
