| Prod Model: |
HZMB14400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Welding Part: |
Silver |
| Cutting Object: |
Diamond Segment |
| Material Of Cutting Object: |
Diamond, Co, Cu, Ni, etc. |
| Shape: |
Sandwich, Groove Segment, Taper Type |
| Kind: |
Saw Blade |
| Manufacturing Arts: |
Silver Welding |
| Saw Blade External Diameter: |
400mm |
Product Description

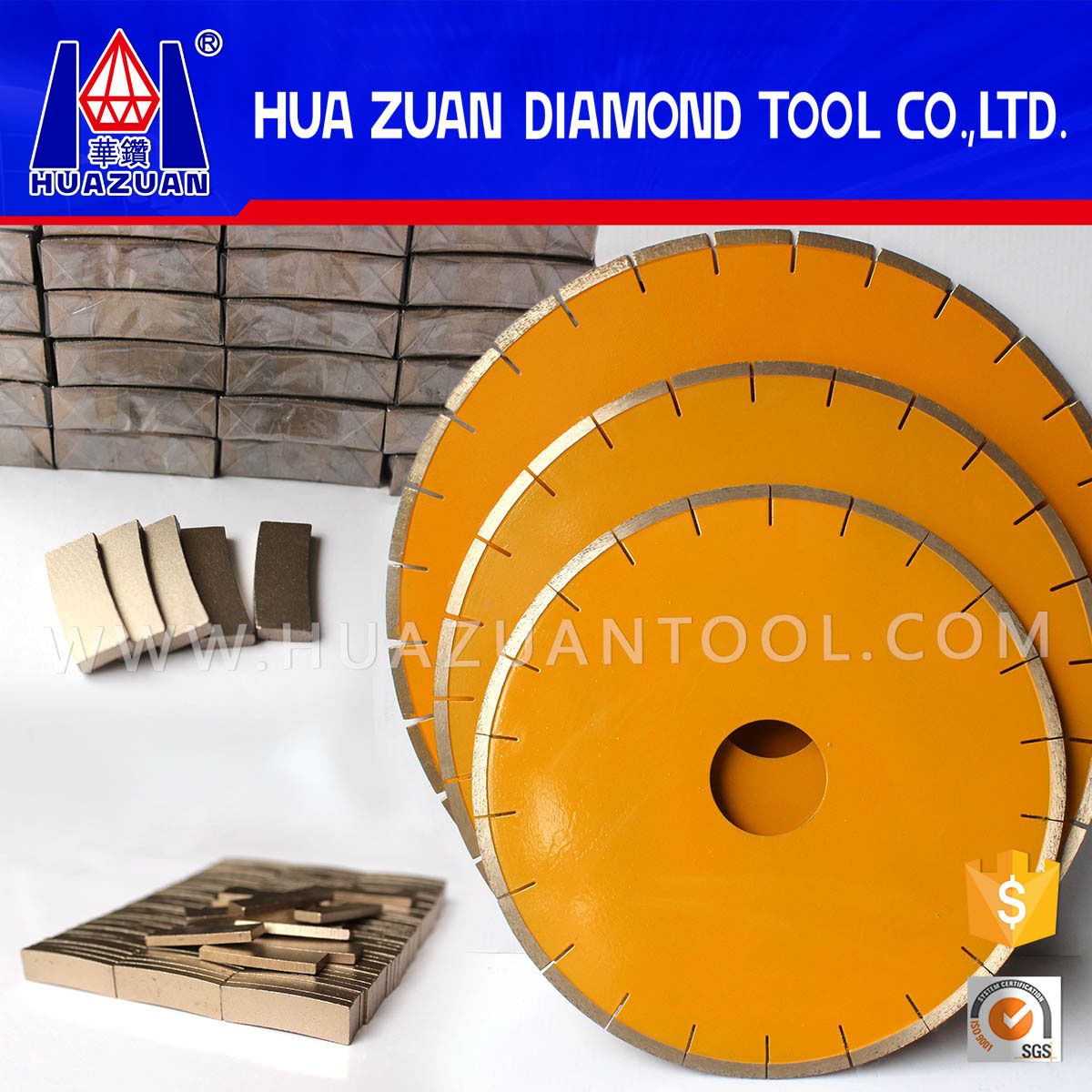

Sharp 400mm saw blade for marble stone cutting
1. Segmented saw blade, fast cutting, long working life, general-purpose application, tidy edge, no edge collapsing. Specially apply to cut high standard edge and corner.
2. Shape: Sandwich, groove segment, taper type, K type, double V type, M type
3. The segments can be welded on the saw blank silver welded.
High-frequency welding, especially for the sharpness request; Imporve working conditions and reduce environmental pollution, reduce frictional heat gain and noise.
4. All specificaitons can be ordered by customers.
NOTE:
Please use high frequency silver welded machine to make the brazing if you only order diamond segments, and not to use fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced.
Size
| External Diameter | Internal Diameter | Dimension of Segment | No. of Segment |
| (inch) | (mm) | (mm) | thickness | height | (pcs) |
| 12" | 300 | 50/60 | 3.2 | 7 | 21 |
| 12" | 300 | 50/60 | 3.2 | 10 | 21 |
| 12" | 300 | 50/60 | 3.2 | 12 | 21 |
| 12" | 300 | 50/60 | 3.2 | 15 | 21 |
| 14" | 350 | 50/60 | 3.4 | 10 | 24 |
| 14" | 350 | 50/60 | 3.4 | 12 | 24 |
| 14" | 350 | 50/60 | 3.4 | 15 | 24 |
| 16" | 400 | 50/60 | 3.6 | 10 | 28 |
| 16" | 400 | 50/60 | 3.6 | 12 | 28 |
| 16" | 400 | 50/60 | 3.6 | 15 | 28 |
| 18" | 450 | 50/60 | 3.8 | 10 | 32 |
| 18 | 450 | 50/60 | 3.8 | 12 | 32 |
| 18" | 450 | 50/60 | 3.8 | 15 | 32 |
| 20" | 500 | 50/60 | 4.0 | 10 | 36 |
| 20" | 500 | 50/60 | 4.0 | 12 | 36 |
| 20" | 500 | 50/60 | 4.0 | 15 | 36 |
| 22" | 550 | 50/60 | 4.6 | 10 | 40 |
| 22" | 550 | 50/60 | 4.6 | 12 | 40 |
| 22" | 550 | 50/60 | 4.6 | 15 | 40 |
| 24" | 600 | 50/60 | 4.6 | 10 | 42 |
| 24" | 600 | 50/60 | 4.6 | 12 | 42 |
| 24" | 600 | 50/60 | 4.6 | 15 | 42 |
| 26" | 650 | 50/60 | 4.6 | 10 | 46 |
| 26" | 650 | 50/60 | 4.6 | 12 | 46 |
| 26" | 650 | 50/60 | 4.6 | 15 | 46 |
| 30" | 750 | 50/100 | 5.2 | 10 | 54 |
| 30" | 750 | 50/100 | 5.2 | 12 | 54 |
| 30" | 750 | 50/100 | 5.2 | 15 | 54 |
| 36" | 900 | 50/100 | 6.0 | 10 | 64 |
| 36" | 900 | 50/100 | 6.0 | 12 | 64 |
| 36" | 900 | 50/100 | 6.0 | 15 | 64 |
| 40" | 1000 | 50/100 | 7.0 | 12 | 70 |
