Prod Model: |
HZ2560 |
Product Name: |
Diamond Blade |
Matrix Type: |
Normal/Silent |
Material Of Segment: |
Diamond |
Performance: |
Sharp & Wearable |
Feature: |
Fast Cutting Speed |
Test: |
Hardness, Dimension, Fastness |
Types: |
Single Blade, Multi Blade, Quarry/Block Blade |
Production Technology: |
Silver Welded |
Inner Hole Diameter: |
50 mm (Customized) |
Service: |
OEM/ODM |
Product Description

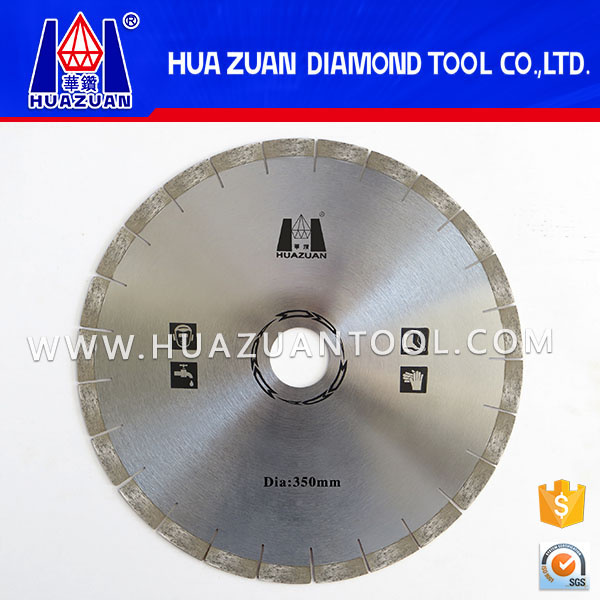

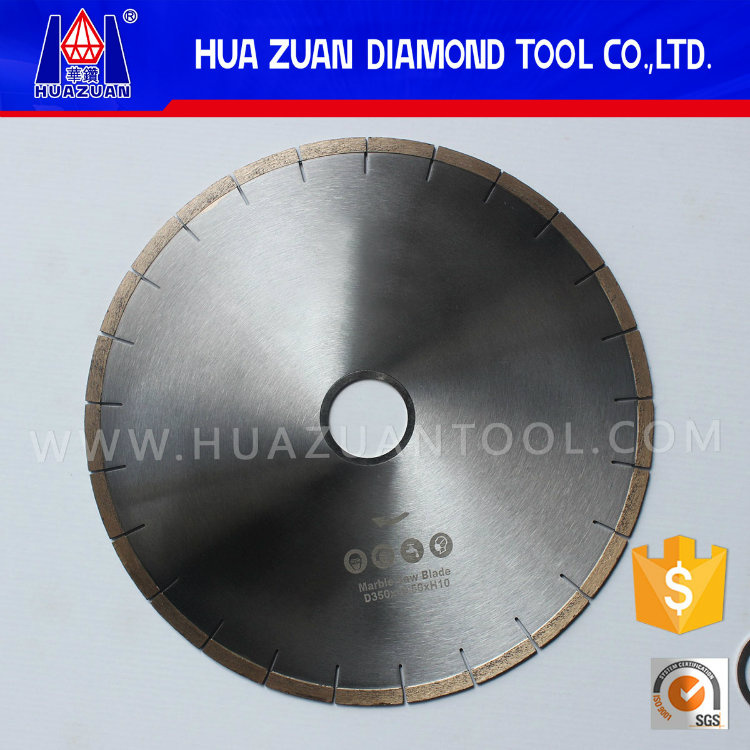

Sharp Diamond Blade for Cutting Marble
Factory = Quality Control + Competitive Price + Own Technology + OEMItem | Diamond Blade |
Application | Marble |
Welding | Silver Weld |
Slot | U slot (narrow) |
Normal or Silent | Normal |
Blade Diameter | 350 mm |
Inner Hole Diameter | 50/60 mm |
Packing | Plastic + Box + Carton/Wooden Box |
Service | OEM, ODM |
Our Advantage1.Use high quality blades.
2.Diamond segment use high quality emery and special mixture.
3.Saw blade segment is very sharp, high efficiency and stable performance.
4.Fast cutting speed without chipping.
5.The segment welding way is silver soldering.makes it more firmly on the blank.
6.Mature production process.
7.Strict product quality inspection processes.
8.Rapid delivery process.
9.Perfect after-sale service, if you has any problem, contact us anytime.
For your referenceDiameter | Segment Dimension | Qty. of Seg. |
10" (250mm) | 40*2.6-2.8*8-12 mm | 16-17 |
12" (300mm) | 40*2.8-3.0*8-12 mm | 21-22 |
14" (350mm) | 40*3.0-3.2*8-12 mm | 24-25 |
16" (400mm) | 40*3.4-3.6*8-12 mm | 28-29 |
18" (450mm) | 40*3.8-4.2*8-12 mm | 32 |
20" (500mm) | 40*4.0-4.2*8-12 mm | 32-36 |
22" (550mm) | 40*4.6-4.8*8-12 mm | 40 |
24" (600mm) | 40*4.6-4.8*8-12 mm | 42 |
26" (650mm) | 40*5.0-5.2*8-12 mm | 46 |
28" (700mm) | 40*5.0-5.2*8-12 mm | 42-50 |
30" (750mm) | 40*5.2-5.6*8-12 mm | 54 |
32'' (800mm) | 40*5.5-6.0*8-12 mm | 46-57 |

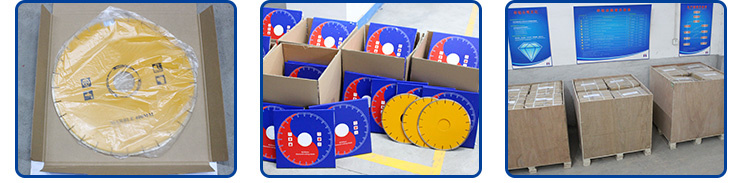

Company InformationPacking of Diamond Saw Blade
FAQ of Diamond Saw Blade:Q1: Are you a factory or trading company?
A: We are factory.
Q2: Where is your factory located?How can I visit you?
A: Our factory located in Quanzhou City,Fujian Province,China. You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up. Welcome you to visit our factory.
Q3. How is your quality?
A. We have a very seriously control system(PDCA principle and 7S) . We guarantee the high performance of our products.
Q4. What we should do if your products can not run well?
A: Give us detailed report.Analyze the reason. Try to find a way to solve the problem.If it's our problem and not possible to solve, then will give replacement.
Q5. Do you offer free samples?
A. We don't offer free samples, according to our experience when people get the samples by paying they will cherish what they get. Although the quantity of sample is small however its cost is higher than normal production.
Contact Us!Fujian Quanzhou Huazuan Diamond Tool Co., Ltd.
Add: Miaoxia, Fengzhou, Quanzhou, Fujian, China.
Tel: +86-595-86780371
Fax: +86-595-86780372
Web: www.huazuantool.com
Attn: Jane Huang
Mob: +86-13559049130

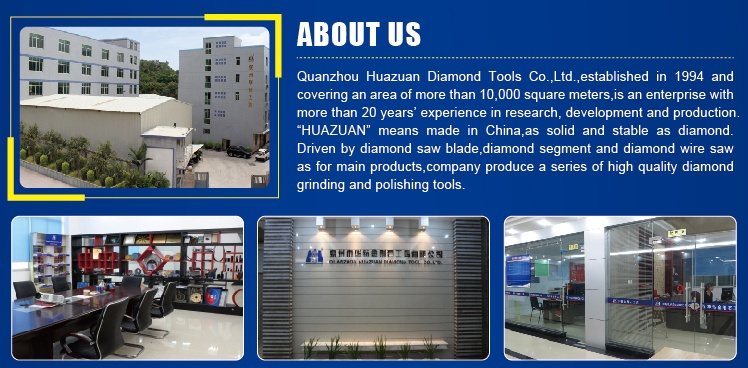

Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
