| Prod Model: |
QC11K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Depend on You |
| Colour: |
All Colours Available |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |

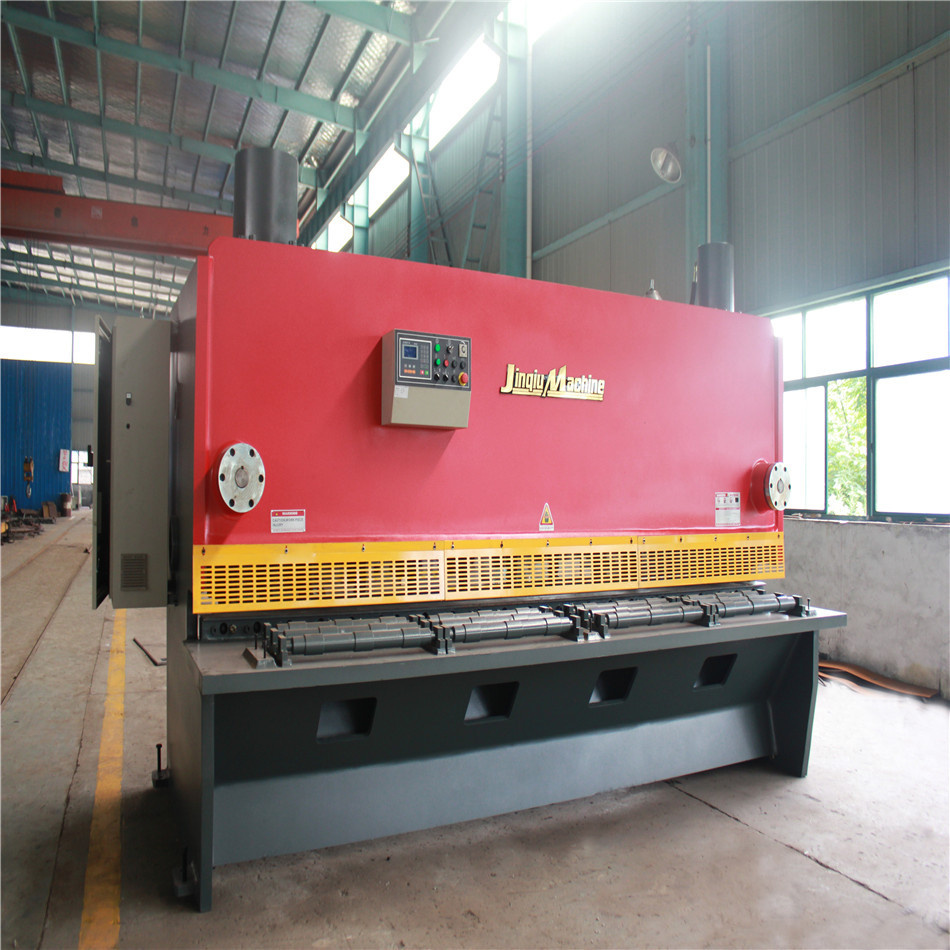

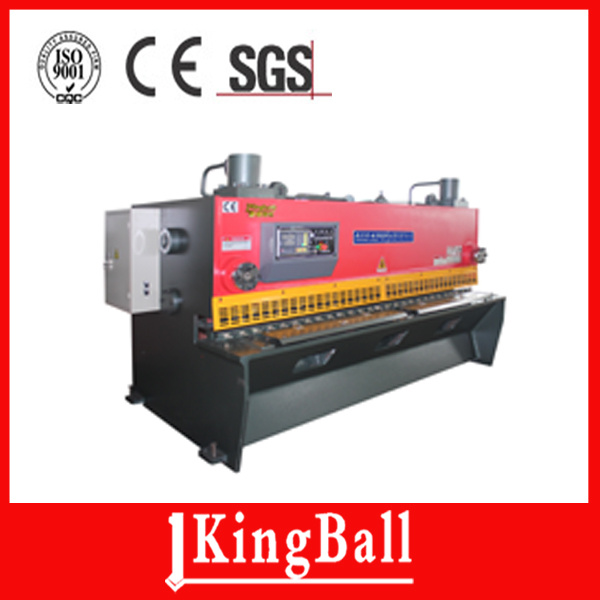

Product Description
CNC controller: Delem Holland
Main motor: Siemens Germany
Major Low voltage electrica: Schneider France
Gear pump: Boschrexroth Germany
Seal ring: Valqua Japan
Hydraulic system: Boschrexroth Germany
We also have the press brakes, rolling machines and other machines.
If you want to know more about our products, please contact us.Thanks.
Customer manager: Miss. Max
M. P: 0086-15189801015
Tel: 0086-52491558Features and Specifications
1. The second generation of shear.
2. Welded steel plate construction, heating to eliminate stress, with high strength and good rigidity.
3. Advanced integrated hydraulic system with and excellent reliabitity quality.
4. Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel
5. The adjustable rake angle can minimize plate deformation.
6. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed
7. Shearing in sections, shadow-line cutting
8. Counter for the motorized back gauge
9. Back support device (optional).
| Type | Cutting
Thickness
(mm) | Cutting
Length
(mm) | Cutting
Angel
(°) | Material
Strength
(KN/CM) | Stopper Adjust Range
(mm) | Travel
Times
| Power
(kw) | Dimension
L×W×H
(mm) |
| 4×2500 | 4 | 2500 | 1°30′ | ≤450 | 20-500 | 16 | 5.5 | 3040×1550×1550 |
| 4×3200 | 4 | 3200 | 1°30′ | ≤450 | 20-500 | 13 | 5.5 | 3840×1550×1550 |
| 4×6000 | 4 | 6000 | 1°30′ | ≤450 | 20-800 | 5 | 7.5 | 6460×2100×3200 |
| 6×2500 | 6 | 2500 | 1°30′ | ≤450 | 20-500 | 15 | 7.5 | 3040×1710×1620 |
| 6×4000 | 6 | 4000 | 1°30′ | ≤450 | 20-600 | 9 | 7.5 | 4620×1850×1700 |
| 6×6000 | 6 | 6000 | 1°30′ | ≤450 | 20-800 | 5 | 11 | 6480×2100×2300 |
| 8×2500 | 8 | 2500 | 1°30′ | ≤450 | 20-500 | 11 | 11 | 3040×1700×1700 |
| 8×4000 | 8 | 4000 | 1°30′ | ≤450 | 20-600 | 8 | 11 | 4640×1700×1700 |
| 8×5000 | 8 | 5000 | 1°30′ | ≤450 | 20-600 | 8 | 11 | 5400×2400×2000 |
| 8×6000 | 8 | 6000 | 1°30′ | ≤450 | 20-800 | 8 | 15 | 6480×2100×2350 |
| 10×2500 | 10 | 2500 | 1°30′ | ≤450 | 20-500 | 10 | 15 | 3040×1800×1700 |
| 10×3200 | 10 | 3200 | 1°30′ | ≤450 | 20-500 | 10 | 15 | 3860×2000×1700 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 20-600 | 6 | 22 | 3245×1900×1900 |
| 16×6000 | 16 | 6000 | 2° | ≤450 | 20-800 | 5 | 22 | 6900×2600×2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 20-800 | 5 | 30 |
|
Nanjing Jinqiu CNC Machine Tool Co., Ltd has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines, Rolling Machines, Press Machine, Ironworkers, Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball, since it was established in 2003. Kingball is a true expert of machine- manufacturing based on more than 10 years experience.
Our Company has got the certification of ISO9001 SGS CE TUV and BV have been exported to more than 60 countries including UK, USA, Italy, Spain, Ireland, India, Thailand, Malaysia, South Africa, and so on.
We have 28, 000 square meters workshop, advanced production equipment, 220 experienced staff, and strictly effective quality assurance system. Kingball selects best material and parts for the machines and the most important is Kingball manufactures most of the parts by itself for better to control the quality. Therefore Kingball brand products win the reputation of practical, reliable and durable.
Nowadays our company is developing the global market, We are currently looking for all agents and powerful cooperation globally to sell our products worldwide. We are glad to try our best to supply Free technical support and related information all of the China Machine. Any advise you have, please do not hesitate to contact with us for your requirement, thank you!
