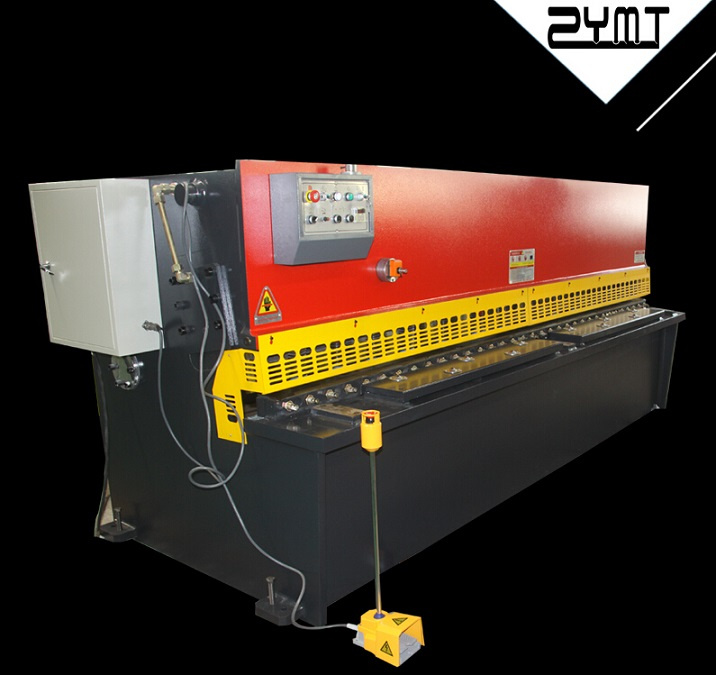

Shearing Machine/Swing Beam Cutting Machine/Cutting Machine/Hydraulic Shearing Machine/Cutter

Prod Model:	QC Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Equipped Controll System:	E21s
Backgauge Travel:	600mm
Controller With Moveable Arm:	Yes
Front And Back Protection Fence:	Yes
Backgauge With Ball Screw:	Yes
Shadow Line Lighting:	Yes
Emergency Button:	Yes

Product Description

CNC Swing Beam Shear/Swing Beam Shearing Machine/Shearing Machine/Shearer/Swing Beam Cutting Machine/Cutting Machine/Cutter/Hydraulic Shearing Machine/Hydraulic Cutting Machine

QC12K Series CNC Swing Beam Shear ---Optional Controllers
China ESTUN E21S,E200S
Holland DELEM DAC310
German ELGO P40
Italy HT071

QC12Y Series Digital swing Beam Shear
Standard system: Shenzhen Sanyuan E18(MD11)
Optional Digital System: China ESTUN E10S

Equipments for QC12Y&QC12K
China Taifeng Hydraulics
German BOSCH Hydraulics
Oil Pump
Pipe Connectors
China Gear Pump
BOSCH Pump
Manual Blades gap Adjust Wheel
Angle Measure
Electrics
Light Guards
Ball Screw Linear Guide
Backgauge Pneumatic Support

QC12Y Features
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.


QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.

QC12K Series Technical Parameters:

Type	Cutting Thickness (mm)	Cutting Length(mm)	Cutting Angle(°)	Material Strength (KN/CM)	Stroke (times/min)	Power(kw)	Weight(kg)	Dimension(mm)
4×2500	4	2500	1°30'	≤450	10	5.5	3800	3040*1610*1620
4×3200	4	3200	1°30'	≤450	10	5.5	5000	3840*1610*1620
4×4000	4	4000	1°30'	≤450	8	5.5	6500	4600*1700*1700
4×6000	4	6000	1°30'	≤450	5	7.5	11000	6460*2100*3200
6×2500	6	2500	1°30'	≤450	10	7.5	5000	3040*1610*1620
6×3200	6	3200	1°30'	≤450	9	7.5	6000	3840*1610*1620
6×4000	6	4000	1°30'	≤450	8	7.5	8000	4620*1750*1700
6×5000	6	5000	1°30'	≤450	6	7.5	10500	5400*1750*1700
6×6000	6	6000	1°30'	≤450	5	11	16500	6480*2100*2300
8×2500	8	2500	1°30'	≤450	10	7.5	6000	3040*1700*1700
8×3200	8	3200	1°30'	≤450	8	7.5	7200	3860*1700*1700
8×4000	8	4000	1°30'	≤450	8	7.5	8800	4640*1700*1700
8×5000	8	5000	1°30'	≤450	8	7.5	11500	5400*2400*2000
8×6000	8	6000	1°30'	≤450	8	11	18000	6480*2100*2350
10×2500	10	2500	1°30'	≤450	9	11	7300	3040*1700*1700
10×3200	10	3200	1°30'	≤450	9	11	8000	3860*1700*1700
10×4000	10	4000	1°30'	≤450	8	11	12000	4650*2100*2000
10×6000	10	6000	2°	≤450	5	15	24000	6500*2100*2300
12×2500	12	2500	2°	≤450	9	18.5	9000	3140*2150*2000
12×3200	12	3200	2°	≤450	9	18.5	10800	3880*2150*2000
12×4000	12	4000	2°	≤450	8	18.5	13000	4680*2150*2000
12×5000	12	5000	2°	≤450	6	18.5	16000	5900*2150*2000
12×6000	12	6000	2°	≤450	5	18.5	29000	6900*2600*2700
12×8000	12	8000	2°	≤450	5	18.5	46500	9000*3500*3500
16×2500	16	2500	2°30'	≤450	9	18.5	11000	3140*2150*2000
16×3200	16	3200	2°30'	≤450	8	18.5	13000	3880*2150*2000
16×4000	16	4000	2°30'	≤450	8	18.5	16300	4650*2150*2200
16×5000	16	5000	2°30'	≤450	6	18.5	20000	5900*2600*2700
16×6000	16	6000	2°30'	≤450	5	22	36000	6900*2700*2700
20×2500	20	2500	3°	≤450	8	22	15500	3440*2300*2500
20×3200	20	3200	3°	≤450	8	22	18000	4150*2350*2700
20×4000	20	4000	3°	≤450	5	22	21000	4850*2350*2700
25×2500	25	2500	3°	≤450	8	37	19000	3200*2700*2900
25×3200	25	3200	3°	≤450	5	37	23000	4200*2700*2900
25×4000	25	4000	3°	≤450	5	37	27000	3850*2700*2900
30×2500	30	2500	3°	≤450	5	37	23500	3300*2900*2900
30×3200	30	3200	3°	≤450	5	37	27500	4200*2900*2900

Controller

DAC310
Bright LCD 128×64 display
Backguage control, Gap control, Stroke length limitation.
Actual and programmed position visualization, Stock counter,
Programmable up to 100 steps.
Panel-based housing;
Servo control/unipolar/AC two-speed control;
mm/inch transmission;

E200S
Backguage control, bus mode control servo system;
Stroke length limitation, double pragrammable digital output;
Pragram memory of up to 40 program, up to 25 steps per program;
One side positioning, retract of function.
mm/inch transmission, Chinese/English transmission;
240×128 pixels LCD display.

E21S
Backguage control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract of function.
One key backup, restore of parameters;
mm/inch transmission, Chinese /English Transmission; LCD display;


P40
Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputs
Program memory(1000 sets)
Angle control/gap control/backguage
Limitation of the cutting length
Material List for angle and gap control

HT071
Regulated power supply for encoder or push pull/o.c.
optional line 12 Vdc±5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits fpr cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.

China ESTUN E10S
X axis and Y axis position display;
Resolution:0.1mm or 0.0001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization.

Packaging & Shipping

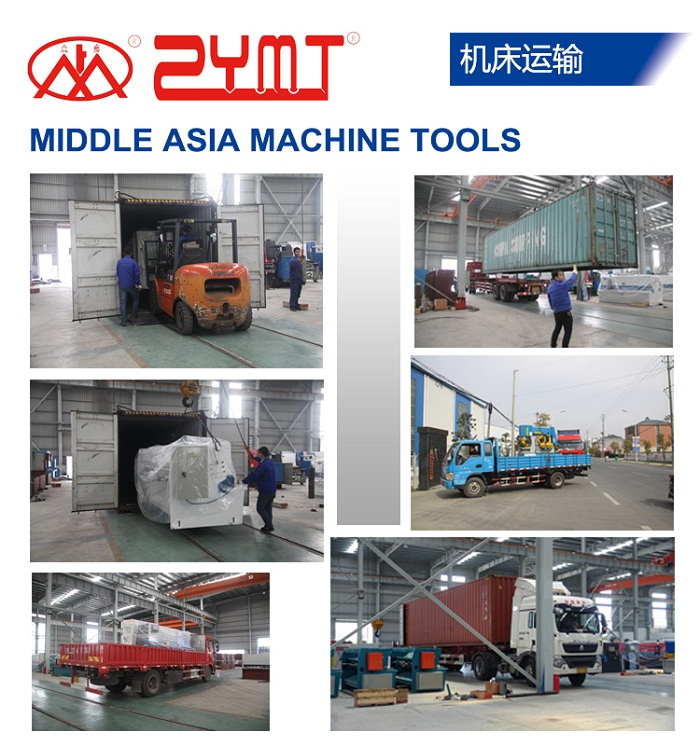

(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.

Our Services
1. Shearing blades and accessories-Customized to your specifications. In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.

2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.

3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)
