| Prod Model: |
QC12K-6X3200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Equipped Controll System: |
E21s |
| Backgauge Travel: |
600mm |
| Controller With Moveable Arm: |
Yes |
| Front And Back Protection Fence: |
Yes |
| Backgauge With Ball Screw: |
Yes |
| Shadow Line Lighting: |
Yes |
| Emergency Button: |
Yes |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description

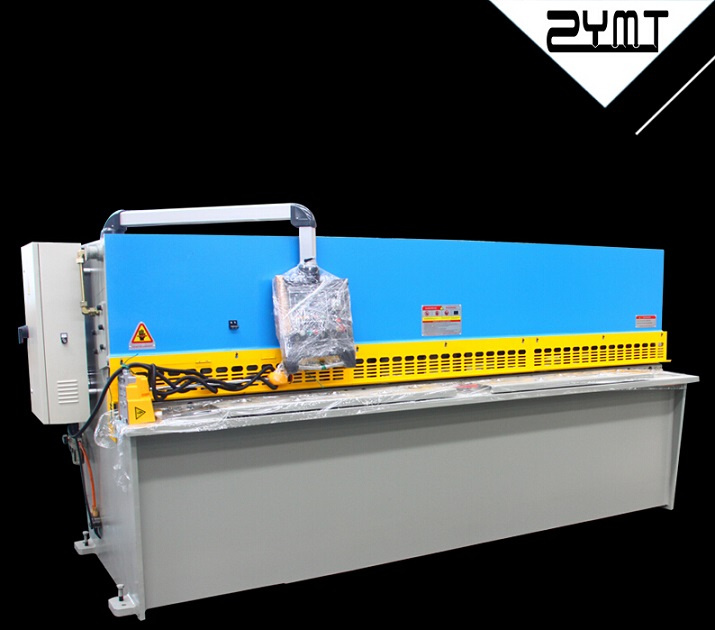

CNC Swing Beam Shear/Swing Beam Shearing Machine/Shearing Machine/Shearer/Swing Beam Cutting Machine/Cutting Machine/Cutter/Hydraulic Shearing Machine/Hydraulic Cutting Machine
QC12K Series CNC Swing Beam Shear ---Optional Controllers
China ESTUN E21S,E200S
Holland DELEM DAC310
German ELGO P40
Italy HT071
QC12Y Series Digital swing Beam Shear
Standard system: Shenzhen Sanyuan E18(MD11)
Optional Digital System: China ESTUN E10S
Equipments for QC12Y&QC12K
China Taifeng Hydraulics
German BOSCH Hydraulics
Oil Pump
Pipe Connectors
China Gear Pump
BOSCH Pump
Manual Blades gap Adjust Wheel
Angle Measure
Electrics
Light Guards
Ball Screw Linear Guide
Backgauge Pneumatic Support
QC12Y Features
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.
QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.
Technical Parameters
| Type | Cutting
Thickness
(mm) | Cutting Length(mm) | Cutting Angle(°) | Material Strength
(KN/CM) | Stroke (times/min) | Power(kw) | Weight(kg) | Dimension(mm) |
| 4×2500 | 4 | 2500 | 1°30' | ≤450 | 10 | 5.5 | 3800 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30' | ≤450 | 10 | 5.5 | 5000 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30' | ≤450 | 8 | 5.5 | 6500 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30' | ≤450 | 5 | 7.5 | 11000 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30' | ≤450 | 10 | 7.5 | 5000 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30' | ≤450 | 9 | 7.5 | 6000 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30' | ≤450 | 8 | 7.5 | 8000 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30' | ≤450 | 6 | 7.5 | 10500 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30' | ≤450 | 5 | 11 | 16500 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30' | ≤450 | 10 | 7.5 | 6000 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30' | ≤450 | 8 | 7.5 | 7200 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30' | ≤450 | 8 | 7.5 | 8800 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30' | ≤450 | 8 | 7.5 | 11500 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30' | ≤450 | 8 | 11 | 18000 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30' | ≤450 | 9 | 11 | 7300 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30' | ≤450 | 9 | 11 | 8000 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30' | ≤450 | 8 | 11 | 12000 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 24000 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 9000 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 10800 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 13000 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 16000 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 29000 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 46500 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30' | ≤450 | 9 | 18.5 | 11000 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30' | ≤450 | 8 | 18.5 | 13000 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30' | ≤450 | 8 | 18.5 | 16300 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30' | ≤450 | 6 | 18.5 | 20000 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30' | ≤450 | 5 | 22 | 36000 | 6900*2700*2700 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 15500 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 18000 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 21000 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 19000 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 23000 | 4200*2700*2900 |
| 25×4000 | 25 | 4000 | 3° | ≤450 | 5 | 37 | 27000 | 3850*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 5 | 37 | 23500 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3° | ≤450 | 5 | 37 | 27500 | 4200*2900*2900 |
Controller System
DAC310
Bright LCD 128×64 display
Backguage control, Gap control, Stroke length limitation.
Actual and programmed position visualization, Stock counter,
Programmable up to 100 steps.
Panel-based housing;
Servo control/unipolar/AC two-speed control;
mm/inch transmission;
E200S
Backguage control, bus mode control servo system;
Stroke length limitation, double pragrammable digital output;
Pragram memory of up to 40 program, up to 25 steps per program;
One side positioning, retract of function.
mm/inch transmission, Chinese/English transmission;
240×128 pixels LCD display.
E21S
Backguage control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract of function.
One key backup, restore of parameters;
mm/inch transmission, Chinese /English Transmission; LCD display;
P40
Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputs
Program memory(1000 sets)
Angle control/gap control/backguage
Limitation of the cutting length
Material List for angle and gap control
HT071
Regulated power supply for encoder or push pull/o.c.
optional line 12 Vdc±5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits fpr cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.
China ESTUN E10S
X axis and Y axis position display;
Resolution:0.1mm or 0.0001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization.

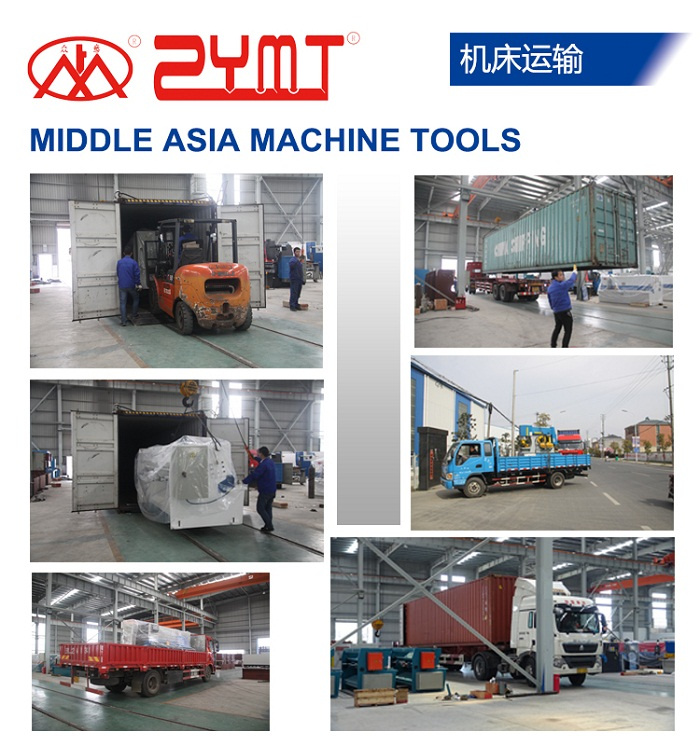

Packaging & Shipping
(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.
Our Services
1. Shearing blades and accessories-Customized to your specifications. In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.
2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.
3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)
Ma'anshan Middle Asia Machine Tools Manufacture Co., Ltd. (which Chinese name is ZhongYa Machine Tool Factory and also the head office located in Ma'anshan City Anhui Province) is a specialized company for making forged and pressed series of products designated by the Ministry of Machinery, having been certified with GB/T9001: 2000 International standard.
Based on elite equipment, advanced technology and first-class managment, making Normal and CNC Press Brake, Shearring machine, Turret Punching machine and Roll Bending machine.
Its registered capital is RMB 32million, the total capital more than 102million, and the factory is located in Bowang Town, in the suburb of Nanjing and the eastern suburb of Maanshan, with developed transportation. It's only 30km due to Lukou International Airport of Nanjing Jiangsu, and high speed way close to Shanghai.
We promise to give you outstanding customer service. Customers continue to do business with us because of our great prices and nice machines. We understand that you want value for your money, and a happy customer will be a future customer.
Our products have been sold to American, Italy, Germany, Mexico, Singapore, Malaysia, Vietnam, Bahrain, Pakistan, Brazil, Spain, etc.
