| Prod Model: |
HLT-0401 |
| 1/2" To 24": |
Dn12 to Dn600 |
| Material: |
Stainless Steel |
| Standard: |
BSW |
| Connection: |
Welding |
Product Description

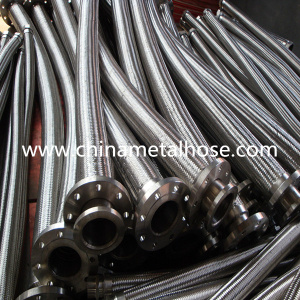

ship air train station building flexible metal hose
Size range: DN6 up to DN600
Wall thickness: 0.15 up to 0.8mm
Material: Sus304, 304L, 316, 316L, sus321, copper
Pressure range: Up to 128MPa
Hose type: Corrugated metal hoses and helical metal hose
Products end type: Flanges, fittings, camlock couplings, welding nipple, etc...
We are professional manufacture of stainless steel flexible hose and braid, and hose assembly. Our hoses can be applied in the fields of petrochemical, machinery, vacuum, medical, food, and so on. For you flexible connection, we can provide flexible plan for you. Flange connection type, screw connection type, and special type for your special requirement are available.
Our hose advantage:
High physical strength combined with light weight
Suitable for wide temperature range
Good corrosion resistance, Resistance to fire, moisture, abrasion and penetration.
Absorb vibration and noise from pumps, compressors, engines etc.
Compensate for intermittent or constant movement.
Compensate for thermal expansion of contraction of piping.
Correct problems of misalignment.
A flexible and quick alternative for rigid piping in difficult locations.
We will quote competitive price based on your quantity. In our factory, we have advanced equipment, experienced workers, and technical engineer. So we will provide best product and best service for you.
The more details of our hoses are as follows:
We can supply all kinds of hoses, both spiral and annular hoses. Either in finished products and hose, braiding and fittings separately with best price and quality.
DN | ID | OD | Pitch
Distance
(mm) | Wall
thinkness
(mm) |
| 6 | 5.64 | 10.8 | 1.8 | 0.18 |
| 10 | 9.64 | 15.2 | 2 | 0.18 |
| 12 | 11.6 | 18 | 3 | 0.2 |
| 16 | 15.4 | 21.5 | 3.5 | 0.3 |
| 20 | 19.4 | 27 | 4.5 | 0.3 |
| 25 | 24.4 | 32.5 | 5 | 0.3 |
| 32 | 31.4 | 40 | 5.5 | 0.3 |
| 40 | 39.4 | 50 | 6 | 0.3 |
| 50 | 49.4 | 63 | 7.5 | 0.3 |
| 65 | 64.4 | 81 | 9 | 0.3 |
| 80 | 79.2 | 98 | 10.5 | 0.4 |
| 100 | 99.2 | 120 | 13 | 0.4 |
| 125 | 124 | 150 | 14.5 | 0.5 |
| 150 | 149 | 180 | 17.5 | 0.5 |
| 200 | 198.8 | 240 | 24 | 0.6 |
| 250 | 248.4 | 300 | 28 | 0.8 |
| 300 | 298 | 355 | 33.5 | 1 |
We are most professional metal hose, metal bellow and related machineries manufacturer and exporter with more than 30 years of history. Our products exported and are exporting to many countries, such as Denmark, UK, USA, Russia, Ukraine, Iran, Australia, Zambuwae etc...Bellow and Hose machineries are exported to world wide, such as Turkey, India, Russia, Ukraine, Iran, Australia, Canada, USA, UK, etc...We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc...We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
Our metal hose and braid is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.
All kinds of expansion joints for different applications are available, such as metal expansion joints, fabric expansion joint, rubber expansion joints. For details, please refer to our catalogue.
Our hoses are formed with TIG welded tubes with high quality.
Size: DN6-630mm
Forming Method: Hydraulic, mechanical and elastomer
Hose shape: Omega and U type
Material: Stainless steel 304, 321 and 316L, incoloy
Metal hose forming machine:
Elatomer metal hose forming machine: DN10-150mm
Hydraulic metal hose forming machine: DN16-630mm
Mechanical metal hose forming machine: DN6-50mm
Metal Bellow Forming machine
Vertical Hydraulic Presser: DN14-5000mm
Horizontal hydraulic presser: DN14-300mm
Mechanical mandrel punching machine: DN800-5000mm
Bellow Rolling & forming machine: DN800-5000mm
Testing Device:
Testing bench: DN6-150mm
Hose fitting welding machine: DN6-50mm
