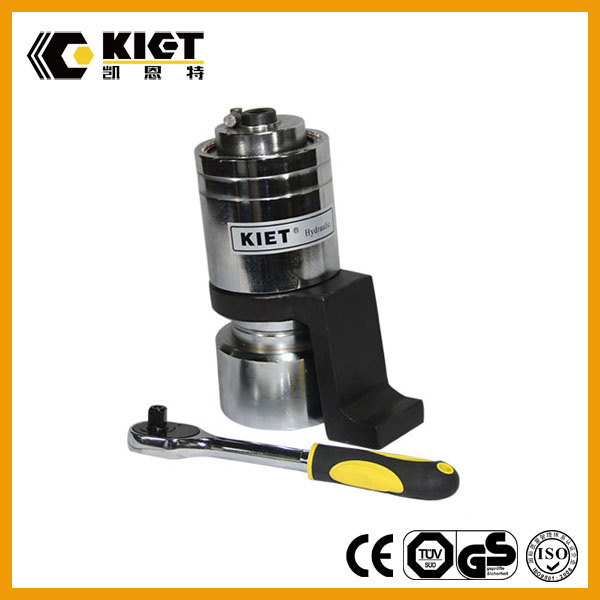

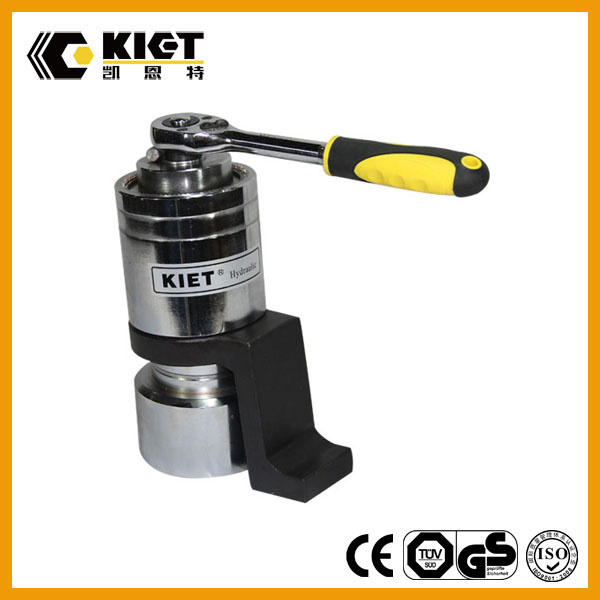

Short Delivery Time Torque Multiplier

Prod Model:	KET-FDB Series
Product Name:	Short Delivery Time Torque Multiplier
Max.. Torque (Nm):	1500-20000
Ratio:	4.8-96.8
Input Square(mm):	12.7
Output Square(mm):	25-60
Bolt Size(mm):	M20-30 to M72-80
Nut Size(mm):	S30-46 to S105-135
Certification:	Ce&ISO9001:2008
OEM:	Yes
Color:	Can Customize
Type:	Torque Wrench
Material:	Alloy Steel
Standard:	European Type
Surface Treatment:	Titanizing
Feature:	Anti-Explosion
Brand:	Kiet
Handle Color:	Can Custmoize

Product Description

                     Short Delivery Time Torque Multiplier


Product Description:

Hand torque multiplier

Torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible.
The gearing design allows for a high torque output with minimal input.
Commonly used in petrochemical, power generation, transportation, railway construction, shipping and maintenance industries.

Manual Torque Multiplier Features
1.A device that can multiply the moment of force to 4-60 times
2.Used in the difficult situation and places that big torque wrench is unable to use
3.The product operates easily and can save the manpower
4.People even can operate it with small torque
5.Applies to small size and poor working environment
6.All kinds of reaction torque arms can be used for many conditions
7.Match with the torque transducer

Parameter of the torque multiplier:


Model Number	KET-FDB-15	KET-FDB-20	KET-FDB-35	KET-FDB-55	KET-FDB-75	KET-FDB-100	KET-FDB-150	KET-FDB-200
Max. Torque(Nm)	1500	2000	3500	5500	7500	10000	15000	20000
Ratio	4.8	14	17	19	22	61	74.8	96.8
Input Square(mm)	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7
Output Square(mm)	25	25	30	35	40	50	55	60
Bolt Size(mm)	M20-30	M22-36	M30-45	M36-52	M42-60	M52-68	M60-76	M72-80
Nut Size(mm)	S30-46	S32-55	S46-70	S55-80	S65-90	S80-105	S90-115	S105-135
Size(mm)	80*80*119	74*74*147	95*95*162	105*105*190	115*115*210	134*134*244	146*146*305	146*146*325

Photos:

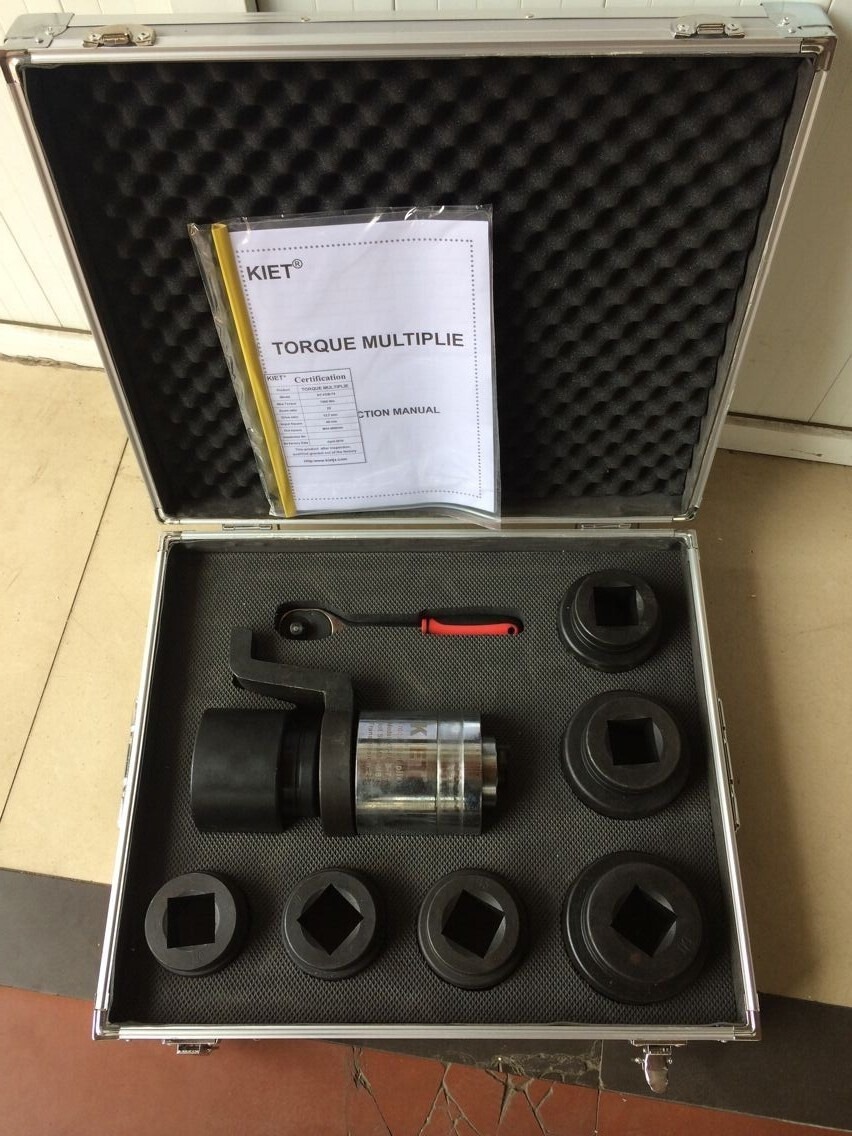

Manual Torque Multiplier Packing and Shipping:

We Provide Standard Aluminum Alloy Lightweight Box  for export , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.


Company Information


Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:
? Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
? Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
? Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
? Hydraulic pumps, manual and electric type (max up to 3000bar);
? Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
? Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Our Services:

KIET provide one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded within 24 hours.


FAQ
Q1: How can contact sales?
A1: Please call: +86-18052606778 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.

Certificate:CE&ISO9000:2008


Teams:


 For more information about the products please contact me as below:
 Elena Tan
 Tel: 86-523-81569666
 Mob: +86 18052606778
 Web: www.kaientehydraulic.com





                   Welcome to visit our factory!
