Prod Model: |
JSB 4500S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Optional |
Delivery: |
5 Workdays After Order |
Oen: |
Avilible for Hydrauic Rock Breaker Hammer |
Suitable Excavator: |
36-45 Ton |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Product Description

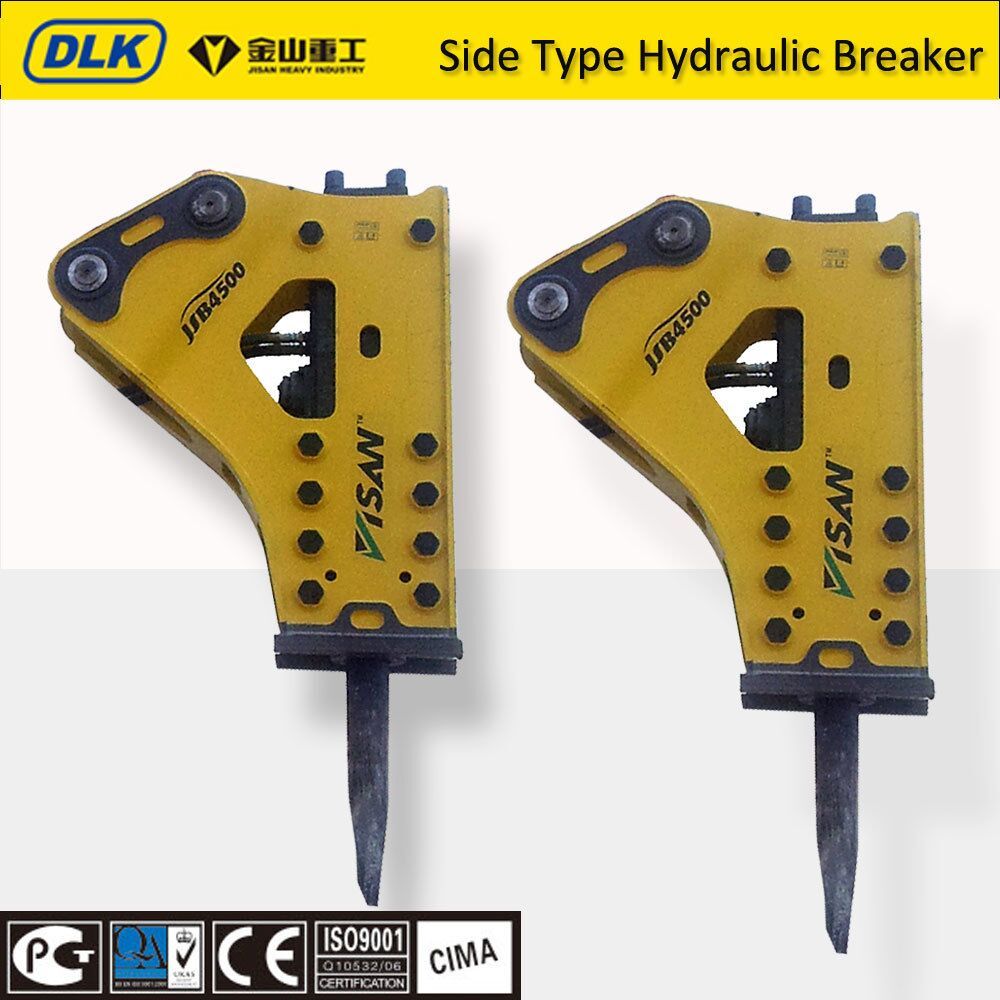

JSB4500S hydraulic rock breaker hammer is compatible with various brand of 36-46 tons excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, Volvo, KOBELCO, KATO, KUBOTA, JCB, CASE, GEHLetc.
The features of hydraulic rock breaker:
A. Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
B. Suitable with a wide range of excavator.
C. Versatile application including rock broken, paving road, building demolition etc.
D. Top type breaker is applied to special operation that in large elevation angle.
E. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
F one-stop service.
G easy use and easy maintenance.
We also have BOX type breaker, TOP type breaker for your slection.
The specification show you as follows for your reference.
THE SPECIFICATIONS OF SIDE TYPE BREAKER |
Item\Model | Unit | JSB100S | JSB200S | JSB400S | JSB400S | JSB600S | JSB800S | JSB900S |
Suitable Excavator | ton | 0.8-2.0 | 1.2-3.0 | 2.0-40 | 3.0-5.5 | 4.0-7.0 | 7.0-14.0 | 11.0-16.0 |
Chisel Diameter | mm | 40 | 45 | 53 | 68/70 | 75 | 85 | 100 |
Total Weight | kg | 70 | 80 | 165 | 254 | 264 | 486 | 853 |
Overall Length | mm | 920 | 1100 | 1190 | 1347 | 1528 | 1920 | 2260 |
Operating Pressure | kg/cm 2 | 90-120 | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 |
Required Oil Flow | L/min | 15-25 | 15-25 | 25-50 | 25-45 | 30-45 | 45-85 | 80-120 |
Impact rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 |
Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
THE SPECIFICATIONS OF SIDE TYPE BREAKER |
Item\Model | Unit | JSB1200S | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S | JSB5000S |
Suitable Excavator | ton | 15-18 | 19-26 | 19-26 | 27-38 | 28-40 | 36-45 | 40-55 |
Chisel Diameter | mm | 120 | 1350 | 140 | 150 | 155 | 165 | 175 |
Total Weight | kg | 1300 | 1679 | 1898 | 2455 | 2650 | 3753 | 3910 |
Overall Length | mm | 2530 | 2695 | 2810 | 2895 | 3152 | 3310 | 3400 |
Operating Pressure | kg/cm 2 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
Required Oil Flow | L/min | 90-120 | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 | 210-290 |
Impact rate | bpm | 400-700 | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 | 200-350 |
Hose Diameter | inch | 1 | 1 | 1 | 1 | 1 . 25 | 1 . 25 | 1 . 25 |
