| Prod Model: |
80060 |
| Saw Beed Diameter: |
7.2mm-11.5mm |
| Line Speed(M/S): |
20-40 |
| Wire Life(Sq.M./H): |
5-50 |
Product Description

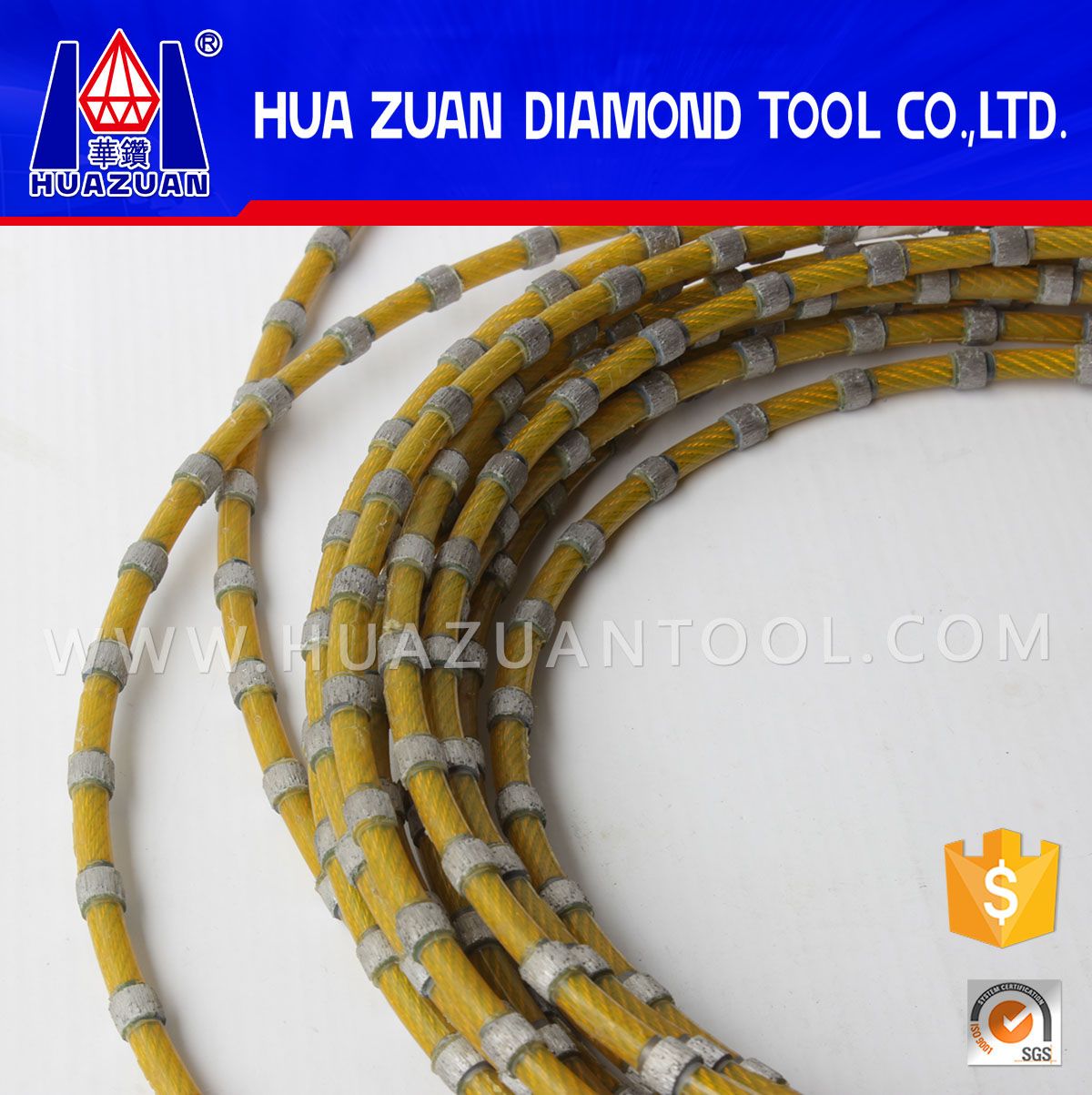

Diamond wire saw for granite quarry
High performance, low cost and waste
Smooth cutting face, accurate of processing
Safety and environmental
For granite quarrying, block squaring, chamfering and profiling cutting.
High Quality Diamond Wire Saw for profiling, Safety and Long Lifespan
Diamond wire saw is one of the most modern tools used for quarrying and processing
Natural stone. We imported the international advanced automatic production line and
Adopted the latest production technology and unique technique, so our wire saw has the
Following advantages:
1. Very less breakage ratio when using therefore increase the working lifetime.
2. Automatic production ensures stable quality performance.
3. Safe, high efficiency and environment protecting.
About us:
Quanzhou Huazuan Diamond Tools Co., Ltd. Is a professional diamond tools manufacturer combining scientific research, production and sales. After more than 20 years' hard work, we accumulate abundant strength and veteran technicians. Our company specializes in manufacturing diamond cutting tools, diamond drilling tools and diamond grinding tools for 11construction industry. The products are increasingly used in processing hard materials such as marble, granite, concrete etc. With the support of domestic colleges and research institutes, we pursuit the front of technology and aim to develop energy-saving environment-friendly tools. Quality of products rank the international leading level. Ultrathin multi-blades for marble cutting are superior and have been sold to Southeast Asia, Middle East and European countries, the excellent performance has won great acclaim from the customers.
Material
| Application
| Diameter
| Height
| Length
| Reinforcement
| Beads/meter
|
Granite
| Profiling
| 8
| 6
| 9.5
| Plastic
| 37
|
Granite
| Profiling
| 8.5
| 6
| 9.5
| Plastic
| 37
|
Granite
| Profiling
| 8.8
| 6
| 9.5
| Plastic
| 37
|
Granite
| Block Cutting
| 10.5
| 6.4
| 10
| Plastic
| 37
|
Granite
| Block Cutting
| 11
| 6.4
| 10
| Plastic
| 37/40
|
Granite
| Quarry
| 11
| 6.4
| 11.5
| Plastic/Rubber
| 40
|
Granite
| Quarry
| 11.5
| 6.4
| 11.5
| Plastic/Rubber
| 40
|
Marble
| Profiling
| 8
| 6
| 9.5
| Plastic
| 37
|
Marble
| Profiling
| 8.5
| 6
| 9.5
| Plastic
| 37
|
Marble
| Profiling
| 8.8
| 6
| 9.5
| Plastic
| 37
|
Marble
| Block Cutting
| 10.5
| 6.4
| 10
| Plastic
| 37
|
Marble
| Block Cutting
| 11
| 6.4
| 10
| Plastic
| 37
|
Marble
| Quarry
| 11
| 6
| 9.5
| Spring
| 28
|
Marble
| Quarry
| 11
| 6
| 9.5
| Plastic
| 37
|
Marble
| Quarry
| 11.5
| 6.4
| 11.5
| Rubber
| 40
|
Concrete
| Cutting
| 10.5
| 6.4
| 10
| Rubber+Spring
| 40
|
Concrete
| Cutting
| 10.5
| 6.4
| 10
| Plastic+Spring
| 40
|
Concrete
| Cutting
| 11.5
| 6.4
| 10
| Rubber+Spring
| 40
|
Concrete
| Cutting
| 11.5
| 6.4
| 10
| Plastic+Spring
| 40
|
