| Prod Model: |
stone block cutting machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sj-2000A Numerical Control Wire Saw |
| Diameter Of Diamond Wire(mm): |
8.6-10.8 |
| Wire Length(mm): |
14800 |
| Main Motor Power(Kw): |
7.5 |
| Table Dimensions (L X W )(mm): |
2000*1300 |
| Max. Cutting Size ( L X W X H)(mm): |
2500*2000*1500 |
| Overall Dimensions ( L X W X H)(mm): |
6810*5354*3770 |
| Water Consumption(M3/H): |
6 |
| Approximate Weight(Kg): |
7500 |
| Feature: |
Fast Cutting Efficiency |
Product Description

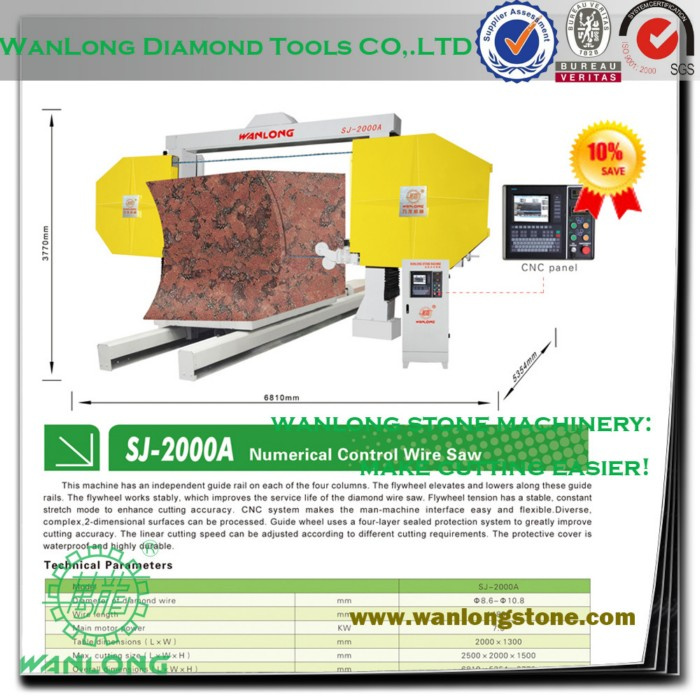

This machine has an independent guide rail on each of the four columns. The flywheel elevates and lowers along these guide rails. The flywheel works stably. Which improves the service life of the diamond wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy. CNC system makes the man-machine interface easy and flexible. Diverse, complex. 2-dimensional surfaces can be processed. Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy. The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is waterproof and highly durable.
| | LXM-6 | LXM-8 | LXM-12 |
|---|
| R.P.M of polishing head | r/min | 560 | 560 | 560 |
| Traverse feeding speed of polishing head | mm/min | 0-5600 | 0-5600 | 0-5600 |
| Lengthways feeding speed of Polishing head | mm/min | 0-4300 | 0-4300 | 0-4300 |
| Supplied by User | MPa | 0.35-0.5 | 0.35-0.5 | 0.35-0.5 |
| Required air source | m³/min | 0.15-0.30 | 0.15-0.30 | 0.15-0.30 |
| Output | m²/h | 2-2.5 | 2.5-3 | 3-3.5 |
| Max. polishing size (L x W x H) | mm | 3000*900*120 | 3000*1200*120 | 3000*1800*120 |
| Overall dimensions (L x W x H) | mm | 6500*2200*2000 | 6500*2500*2000 | 6500*3100*2000 |
| Main motor power | KW | 15 | 15 | 15 |
| Water consumption | m³/h | 4 | 4 | 4 |
| Approximate weight | kg | 2000 | 2500 | 3000 |
