| Prod Model: |
marble slab sawing machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sj-2000A Numerical Control Wire Saw |
| Diameter Of Diamond Wire(mm): |
8.6-10.8 |
| Wire Length(mm): |
14800 |
| Main Motor Power(Kw): |
7.5 |
| Table Dimensions (L X W )(mm): |
2000*1300 |
| Max. Cutting Size ( L X W X H)(mm): |
2500*2000*1500 |
| Overall Dimensions ( L X W X H)(mm): |
6810*5354*3770 |
| Water Consumption(M3/H): |
6 |
| Approximate Weight(Kg): |
7500 |
| Feature: |
Fast Cutting Efficiency |
Product Description

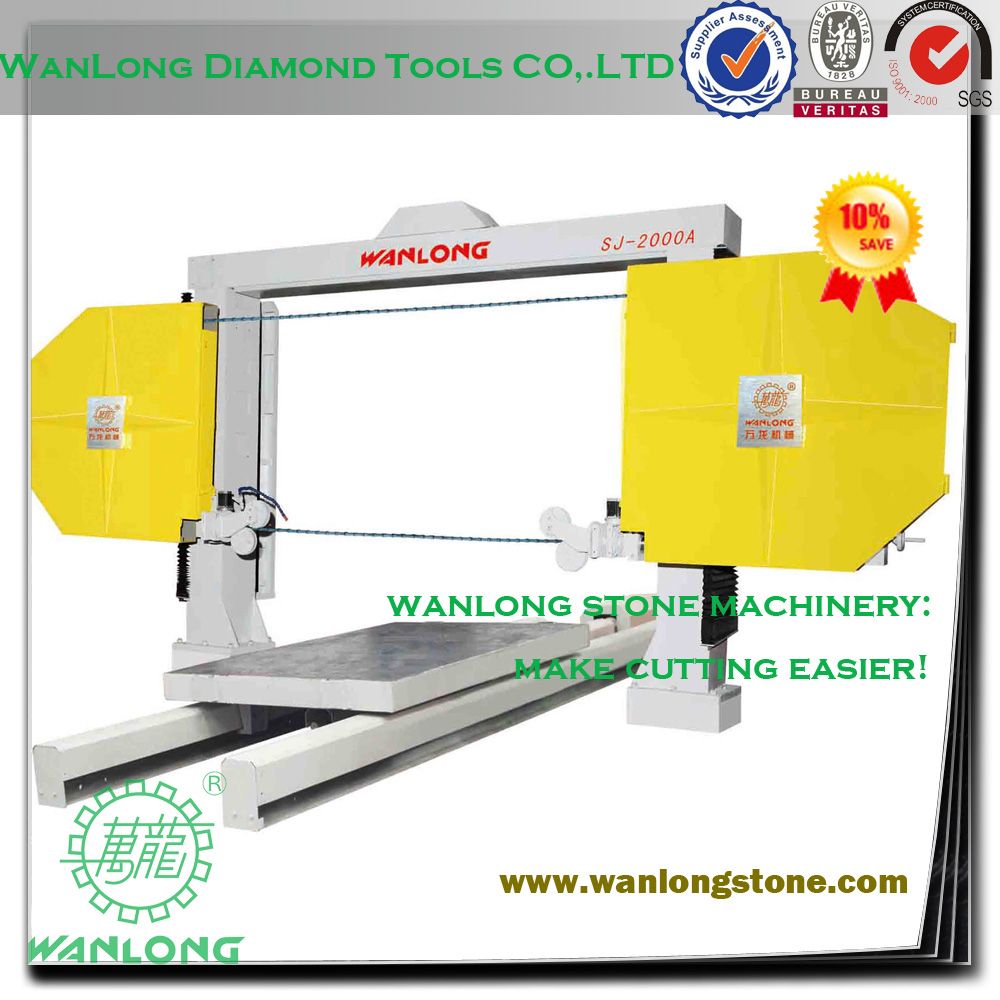

This machine has an independent guide rail on each of the four columns. The flywheel elevates and lowers along these guide rails. The flywheel works stably. Which improves the service life of the diamond wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy. CNC system makes the man-machine interface easy and flexible. Diverse, complex. 2-dimensional surfaces can be processed. Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy. The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is waterproof and highly durable.
| | LXM-6 | LXM-8 | LXM-12 |
|---|
| R.P.M of polishing head | r/min | 560 | 560 | 560 |
| Traverse feeding speed of polishing head | mm/min | 0-5600 | 0-5600 | 0-5600 |
| Lengthways feeding speed of Polishing head | mm/min | 0-4300 | 0-4300 | 0-4300 |
| Supplied by User | MPa | 0.35-0.5 | 0.35-0.5 | 0.35-0.5 |
| Required air source | m³/min | 0.15-0.30 | 0.15-0.30 | 0.15-0.30 |
| Output | m²/h | 2-2.5 | 2.5-3 | 3-3.5 |
| Max. polishing size (L x W x H) | mm | 3000*900*120 | 3000*1200*120 | 3000*1800*120 |
| Overall dimensions (L x W x H) | mm | 6500*2200*2000 | 6500*2500*2000 | 6500*3100*2000 |
| Main motor power | KW | 15 | 15 | 15 |
| Water consumption | m³/h | 4 | 4 | 4 |
| Approximate weight | kg | 2000 | 2500 | 3000 |
Fujian Diamond Tool Co., Ltd. Was established in 1998, with imported advanced technology and cutting grinding machines, firstly cuts stone into 3-5mm laminated with Aluminum and Aluminum Honeycomb. This opens a new stage of stone building material industry in our country. With our great efforts and full experiences to improve our technology, we are successfully reduced the cost and promoted this kind of products to international market. Our annul output of Stone Panel reach 50000 square meters, and it has met good demand in USA, Europe, and Korea, etc. Recently, we newly use the Stone panel made into stone table top Panel, Stone countertop panel. We have been in a constant pursuit of enterprise spirit "Creative, Enterprising" redoubling our efforts for further im provements of innovations, we have created a new landmark in stone industry.
In the United States has an excellent and very professional exclusive partner SPI, and SPI just like a big family, they are working together with American people and helping them design wonderful, gentle and graceful homes...Any friends who from USA are interested in our products, please not hesitate to contact with our exclusive partner SPI in the United States, Surely SPI will take care of all your requests and supply you a very wonderful service.
Now is looking for agents in others countries, welcome you to join us and create a very wonderful future together.
