| Prod Model: |
DFD-130M |
| Drilling Depth: |
60m |
| Borehole Diameter: |
89~304mm |
| Application: |
Blast Hole, Small Well, Small Pile |
| Efficiency: |
10~30m/Hour |
| Rock Hardness: |
F=6~20 |
| Air Consumption: |
7~20 M3/Min |
| Drilling Angle: |
up and Down 100 Degree;Left and Right 55degree |
| Power: |
46/56kw |
| Dimension: |
4900X1980X2320mm |
| Weight: |
4500kgs |
Product Description

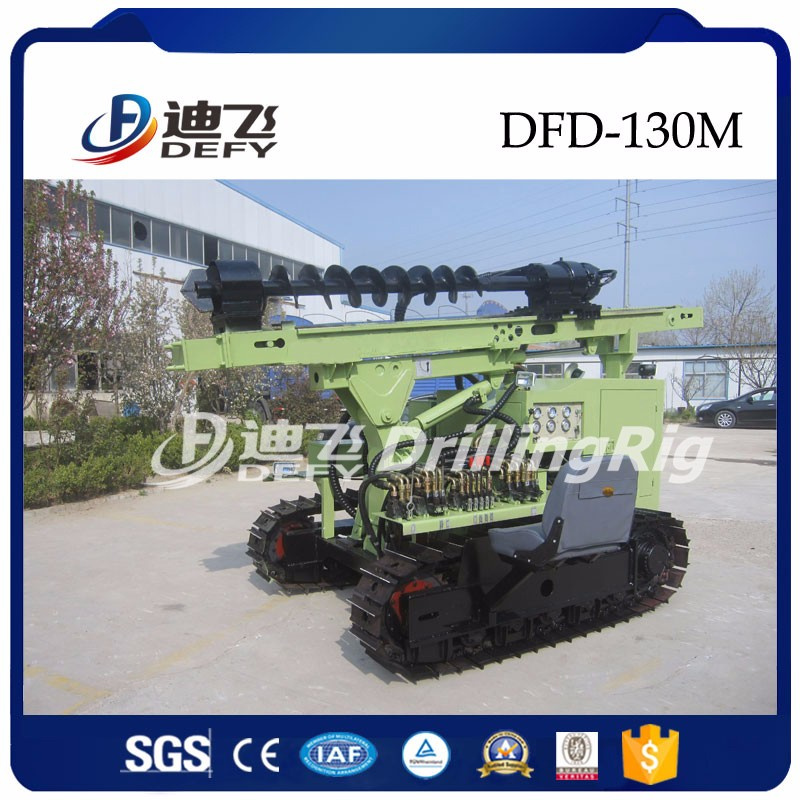

DFD-130M Skid Mounted DTH Hammer Drill Equipments
I.General Description
DFD-130M Skid Mounted DTH Hammer Drill Equipments is designed in particularly for anchorage foundation pile, photovoltaic pile and other foundation pile project multifunction crawler type hydraulic drilling machine. It not only takes advantages of hydraulic DTH drill rig, but also large rotary torque, drilling smoothly, strong hoist, etc. This machine adopts new hydraulic technic and the drilling efficiency improved. Suitable for all kinds of complex ground conditions.
This machine widely apply to bolt pile, photovoltaic pile project drilling work and mine exploit, irrigation, power station, building road, pile foundation project hole drilling and other hard rocks blast hole drilling work.
II.Technical Parameter| Technical Parameter |
| Weight(Kg) | 4500 |
| Dimension(mm) | 4900X1980X2320 |
| Drilling Caliber(mm) | 89~304 |
| Drilling Depth(m) | 60 |
| Walk Speed(Km/h) | 2 |
| Climbing Capacity(°) | 30 |
| Ground Clearance(mm) | 350 |
| Working Pressure(MPa) | 0.7-2.0 |
| Air Consumption(m³/min) | 7~20 |
| Once promotion distance(mm) | 2000 |
| Skid Compensate Length(mm) | 860 |
| Skid Up and Down(°) | Total 100 |
| Skid Left and Right(°) | Total 50 |
| Speed of Spindle(r/min) | 0-90 |
| Rotary Torque(N.M) | 3600 |
| Power(Kw) | 46/56 |
| Applicable Hardness(f) | 6~20 |

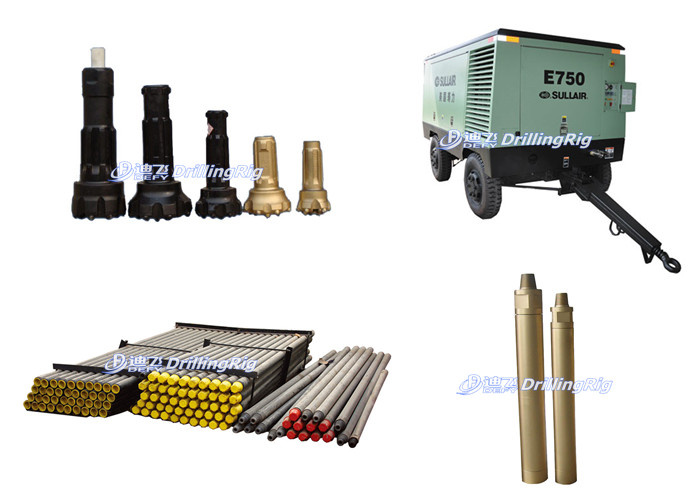

Drilling Accessories at Factory-price all Year Around:

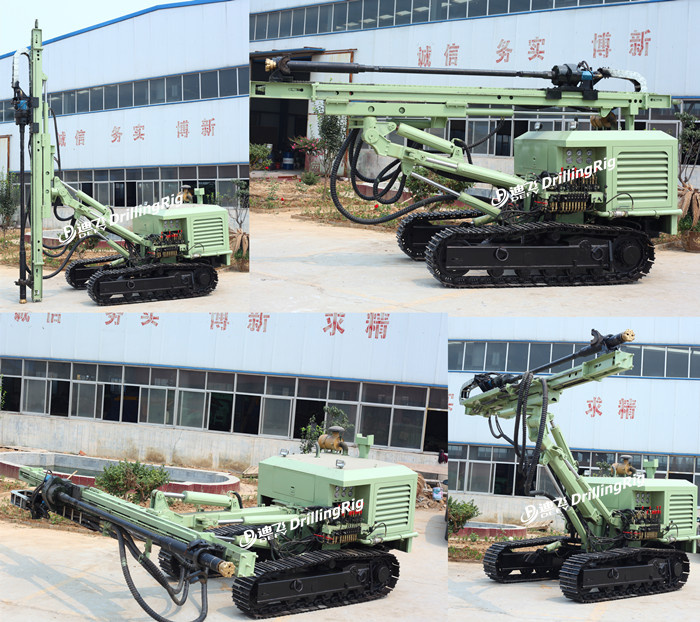

Drilling Vertically and Horizontally or with Angle:

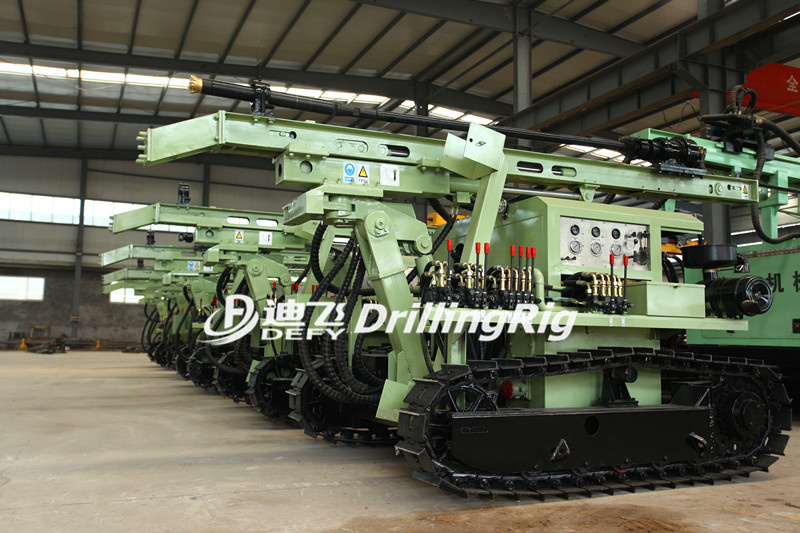

Factory Show:
Customer Show:
Our Service:
1. Free tranning in factory; Overseas technic support;
2. One year quality warranty;
3. Delivery time usually within 10 days;
4. Detailed operation manual or DVD to guide operation;
5. Accessories for replacement at anytime;
6. Shipment from China to your country.
