| Prod Model: |
MJ61-32TAY |
| Motor Power: |
5.5+1.1kw |
| Tilting: |
0-45 Degree |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Certification: |
SGS |
Product Description
Professional Manufacture in Sliding Table Panel Saw line

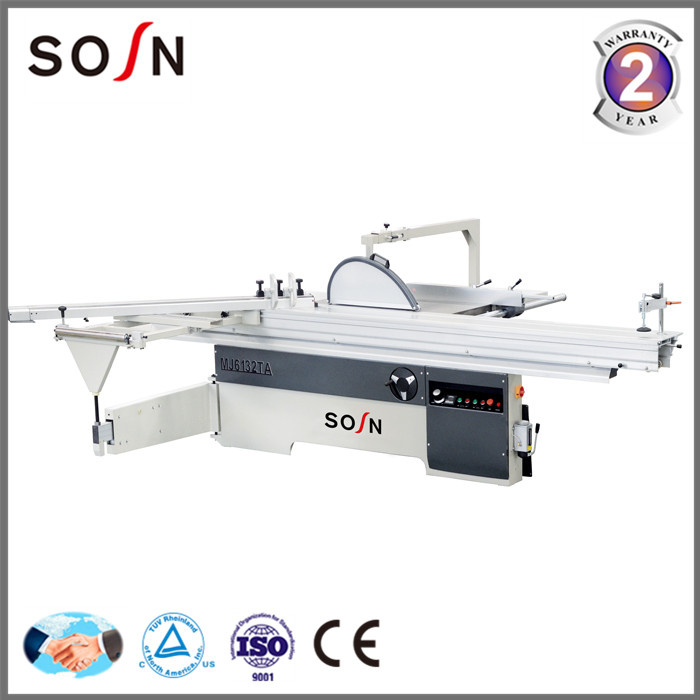

MJ61-32TAY Sliding table panel saw machine with TWO YEARS WARRANTY.
1.This model is we make for Italy brand,we are the OEM factory for them.
2.It is cylindrical guide way of lifting , same structure as Altendorf.
3.A type sliding table, the width is 400mm, with inside between is 145mm, much more precision and bearing.
4.Electric lifting of main saw blade to up and down
5.Digital readout of degree.
6.The inside structure is much much better in using , lower noise , easy operation.
7.This model is with oil pump
Specifications
--.Precision aluminium sliding table assembly, with excellent accuracy.
--.Smooth table movement on horizontally opposed V-slideways with rollers running between.
--.Heavy duty outrigger frame locks firmly to sliding table.
--.Large section crosscut fence with two work stops with magnifying lens.
--.Heavy swinging support arm below outrigger frame, to easily support panels.
--.Rise and fall of main saw blade by electric control.
--.Adjustment of scoring blade is very easy structure design.
--.Tilting of saw blade assembly to required angle by handwheel with digital readout of angle setting.
--.Heavy duty ripping fence mounted on 40mm diameter round bar.
--.Overhead frame mounted safety guard with dust exhaust outlet.
--Machined cast iron main table supported by heavy gauge pressed steel machine body.
--All sealed ball race bearings on saw blade arbors.
--Two blade speeds by belt change on pulleys - 4000 or 6000 rpm.
--One Freud main saw blade and scoring blade included.
Main parameter.
| Model | MJ61-32TAY |
| Sliding table size(mm) | 3200*400 |
| Gross cut capacity(mm) | 3200 |
| Width between saw blade&rip fence(mm) | 1250 |
| Saw blade diameter(mm) | 300(250-400) |
| Height of cut (300mm) | 70-80 |
| main saw spindle Speed rpm | 4500/6000 |
| Main spindle diameter(mm) | 30 |
| Tilting saw blade | 0-45& 90°(digital readout) |
| Motor Power(kw) | 5.5+1.1 |
| Scoring saw blade dia (mm) | 120 |
| scoring saw blade speed rpm | 8000 |
| Scoring saw diameter (mm) | 20 |
| Weight(kgs) | 850 |
| machine body Package size | 2200*1150*1100 |
| Sliding table Pack size (mm) | 3350*480*320 |
MJ61-32TAY video for reference: http://v.youku.com/v_show/id_XODczMTg0ODA0.html
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
