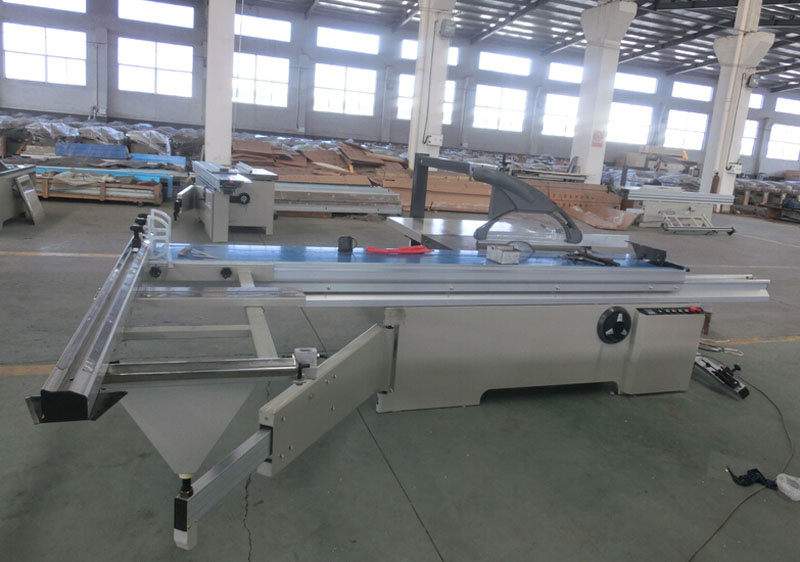

Sliding Table Panel Saw
| Price: |
US $ 2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |

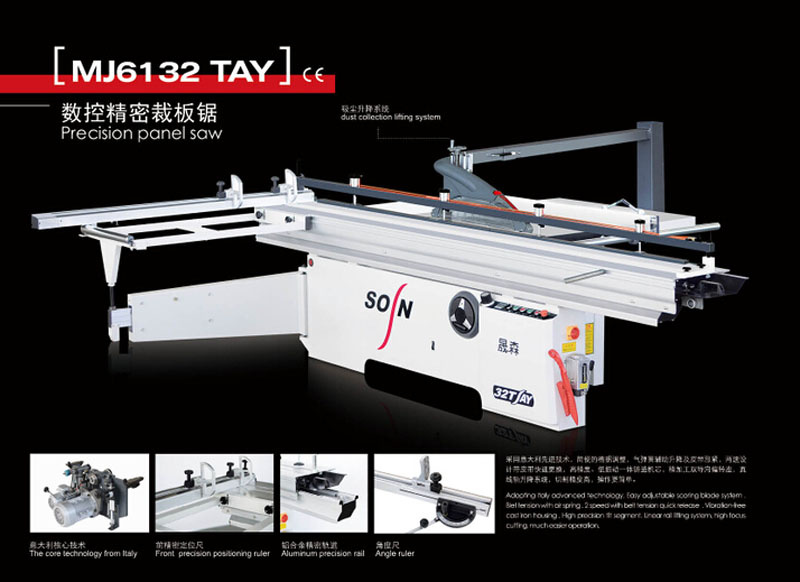

MJ6132TAY |
| Controlling Mode: |
Artificial |
| Feed Mode: |
Manual |
| Spindle Layout: |
Horizontal |
| Certification: |
CE |
| Precision: |
High Precision |
| Type: |
Saw Cutting Machines |
Product Description
1, electrics : Chint brand 2 , motor 5.5+1.1, with copper wire .3,14 fixed points on the machines to make sure the no changable.4 ,dynamic balance.5 ,much heavier.6, can design as your need Our company panel saw machines | 1 | Professional manufacure with 15 year production experience in panel saw machine. |
| 2 | 11,000 square meter panel saw workshop, first class skilled workers,one hour to Qingdao port. |
| 3 | 5 steps strict quality control,CE certificate avaiable. |
| 4 | Timely delivery with short production period. |
| 5 | Professional afer-sale service avaiable, Email will be get back in 24 hours. |
| 6 | More than 70 countries customers have enjoyed SOSN panel saw. |
To Be China Most Professinal Manufacture in panel saw/Sliding Tabel Saw line. Features1),Twice dynamica balanceTested for each spindle 2),German imported bearing and belt 3),Heavy-Duty with unique design. 4), 14 positions-location to make sure its stablility and precision during delivery and working. Basic Functions for the Sliding Table SawPanel saws are used by cabinet shops to easily cut Panels, Profiles, Solid-wood, plywood, MDF, Laminates, Plastic Sheets and melamine sheets into sizes or cabinet components,also used by sign shops to cut sheets of aluminum, plastic and wood for their sign blanks.
| Dimension of sliding table | 3200x400mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm 250-400mm) |
| Height of cut (300mm) | 80mm |
| Height of cut with saw blade 300mm at 45 degree | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade (degree) | 0~45 degree |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight (with wooden package) | 950kg |
| Overall Dimension | 3250*3350*900mm |
| Packing size of the machine body (L*W*H) | 2220*1150*1060mm |
| Packing size of the sliding table (L*W*H) | 3370*530*350mm |
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
