| Voltage: |
220V/380V, 50Hz |
| Rotation: |
1300r/Min |
| Weight: |
170kg |
| Motor Power: |
25kw |
| Motor Type: |
Hm-80, 2 Cylinders |
| Working Pressure: |
15-20MPa |
| Size: |
720*650*1050mm |
| Specificatio: |
φ11.5mm 40beads/M |
| Cutting Speed: |
3~5m2/H |
| Wire Life: |
2~3m2/M |
Product Description

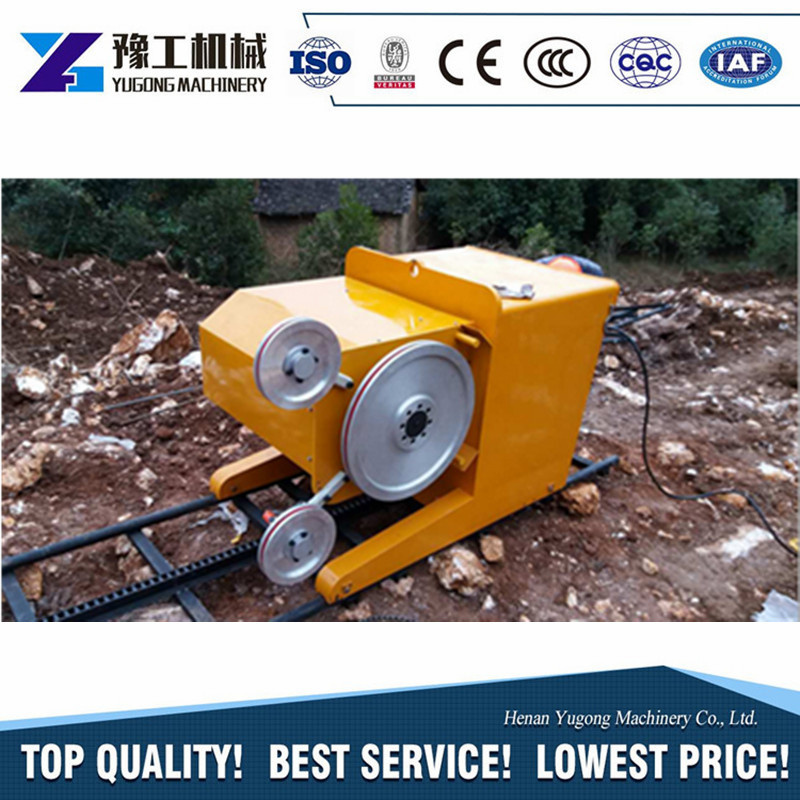

Description of diamond wire saw machineHydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Feature of diamond wire saw machine- 1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations.
2. It's made of hard materials. The wedges are running stability. Long surviving life.
3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.
4. High Efficiency, and it's easy and comfortable to operate and maintain.
Working principle
1.cutting surface smoothly and tidily.
2.by the track control, cutting position accurately.
3.no vibration, low noise, environmental protection, security, pollution-free.
4.cutting thickness can be adjusted according to the size of the saw blade.
Scope of application

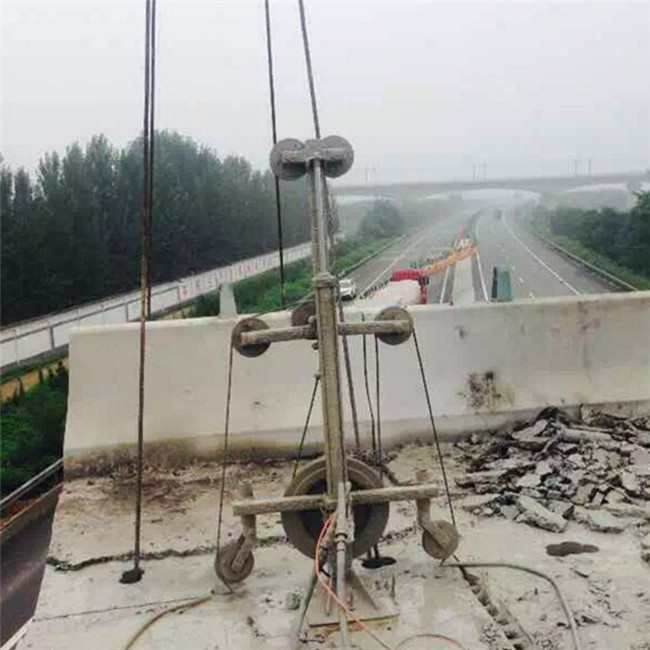

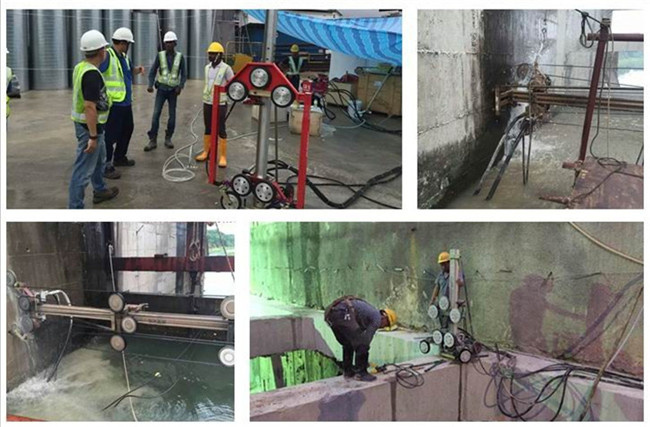

1.general reinforced concrete walls, board cutting, demolition or the door hole.
2.cutting surface required to be a smooth, straight, beautiful concrete cutting.
3.cutting depth according to the blade size adjustment, the current use
Φ1600 mm blade which Maximum cutting depth up to 600mm.
| Hydraulic Pump | YG-25 | Motor Power | 25kw |
| Voltage | 220V/380V, 50Hz | Motor Type | HM-80, 2 Cylinders |
| Rotation | 1300r/min | Working Pressure | 15-20Mpa |
| Weight | 170kg | Size | 720*650*1050mm |

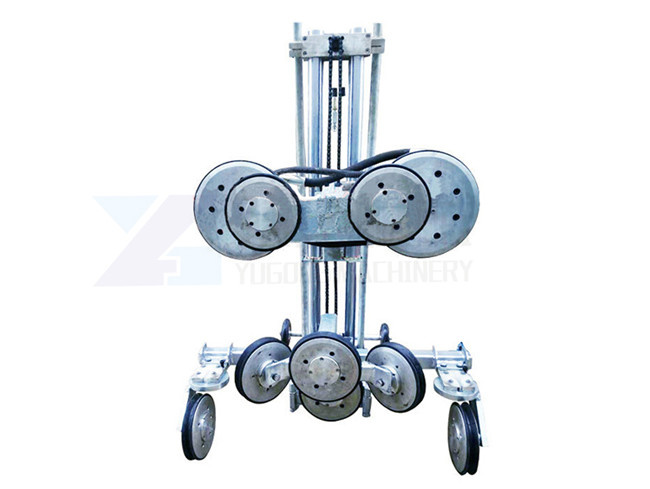

| Frame & Wheels | Aluminum | Wheels | 10 |
| Weight | 75kg | Size | 90*90*1700mm |
| Diamond Wire Saw | Diamond Wire | Specification | φ11.5mm 40beads/m |
| Cutting speed | 3~5m2/h | Wire life | 2~3m2/m |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Our services1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.

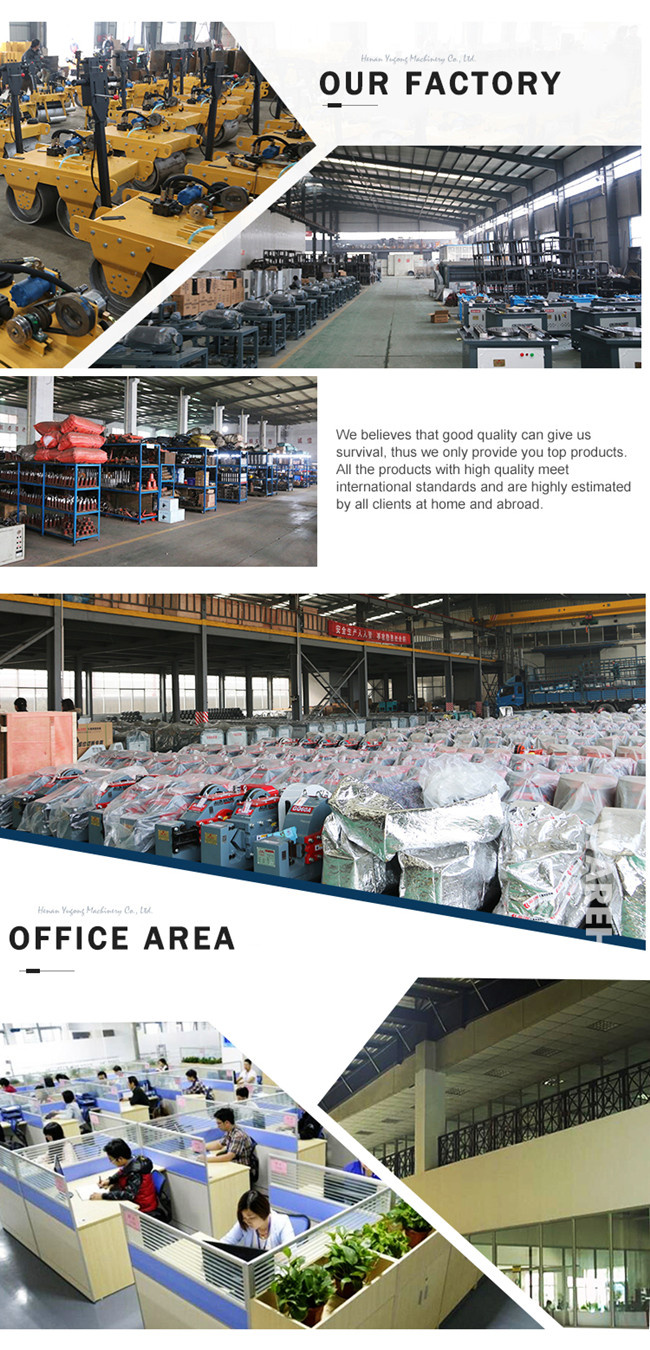

5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.Company InformationHenan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.
packaging &shipping1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
