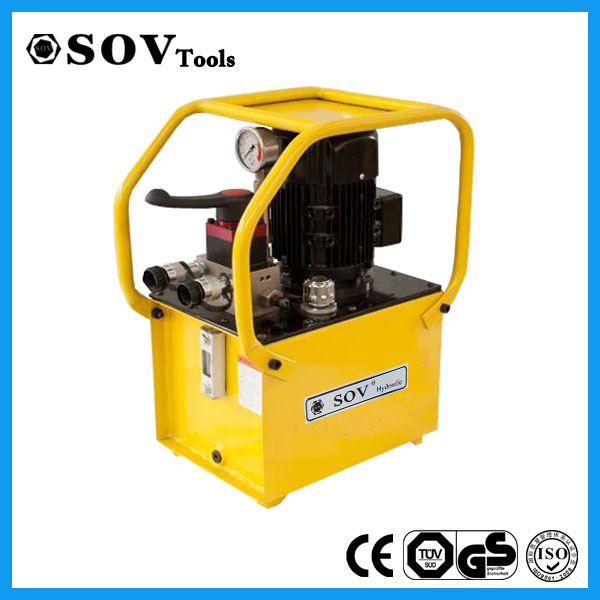

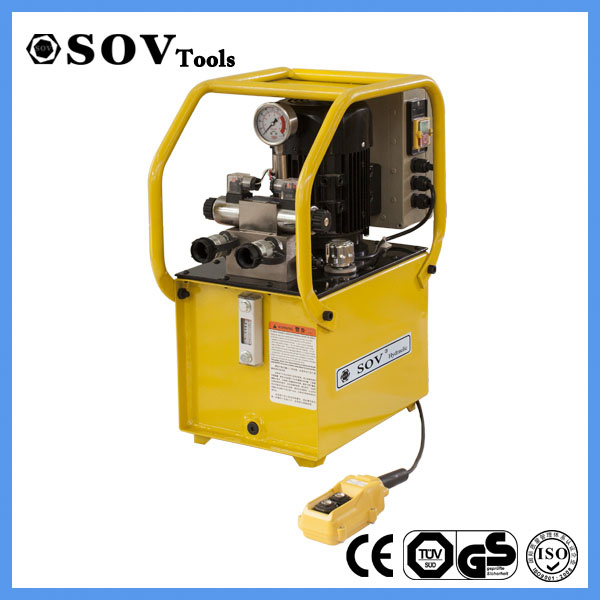

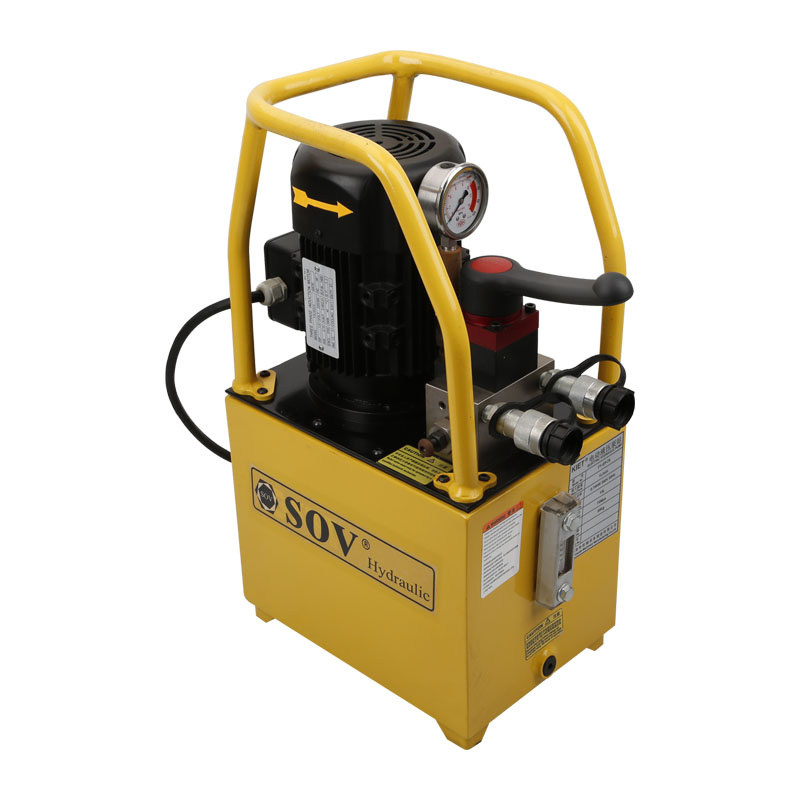

Solenoid Electric Hydraulic High Pressure Oil Pump

Name: Solenoid Electric Hydraulic High Pressure Oil Pump
Brand: tool-buy.com
SKU: 831568955
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 900-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

SOV Hydraulic Technology (Shanghai) Co., Ltd.

Showroom Product Company Profile

Working Pressure:	70 MPa
Pump Type:	Double Acting
Directional Valve:	Manual
Oil Tank Capacity:	70L
Flow:	2L/Min
Voltage:	380V/220V
Frequency:	50Hz/60Hz
Certificate:	Ce, ISO9001:2008
Warranty:	1 Year
Structure:	Single Cylinder
Power:	Hydraulic
Application:	Multi Fields

Product Description

Product Featrue
High-performance aluminum motors, motors easy to heat, prolonged use
Ported different configurations to form a single/double acting, manual/solenoid control
Internal dual-speed pump and dual relief valve
Aluminum alloy casing
Various specifications can be customized tank
Two-speed traffic operation, suitable for a variety of industrial production

Product Parameter

Model No.	Working Pressure (Bar)	Pump Type	Valve Type	Oil Tank Capacity (L)	Motor Power (kW)	Flow (L/min)	Voltage (V)	Frequency (Hz)	Weight (kg)	Size (mm)
SOV-SSB-55	700	Double acting	Manual	10	0.55	0.4	220	50	35	430×285×430
SOV-SDB-55	700	Double acting	Soleniod	10	0.55	0.4	220	50	38	430×340×430
SOV-DSB-75	700	Single acting	Manual	16	0.75	1	380	50	40	440x290x580
SOV-SSB-75	700	Double acting	Manual	16	0.75	1	380	50	40	440x290x580
SOV-SDB-75	700	Double acting	Soleniod	16	0.75	1	380	50	45	500x290x580
SOV-DSB-110	700	Single acting	Manual	16	1.1	1	220	50	40	440x290x580
SOV-SSB-110	700	Double acting	Manual	16	1.1	1	220	50	45	440x290x580
SOV-SDB-110	700	Double acting	Soleniod	16	1.1	1	220	50	40	500x290x580
SOV-DSB-220	700	Single acting	Manual	32	2.2	2	380	50	90	500x350x775
SOV-SSB-220	700	Double acting	Manual	32	2.2	2	380	50	90	500x350x775
SOV-SDB-220	700	Double acting	Soleniod	32	2.2	2	380	50	95	500x350x775
SOV-SSB-550	700	Double acting	Manual	70	5.5	4.5	380	50	160	690x480x950
SOV-SDB-550	700	Double acting	Soleniod	70	5.5	4.5	380	50	160	690x480x950
SOV-SSB-750	700	Double acting	Manual	100	7.5	6	380	50	180	800x520x1050
SOV-SDB-750	700	Double acting	Soleniod	100	7.5	6	380	50	180	800x520x1050

Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery

Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

Company information
Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

About SOV Hydraulic Technology(Shanghai) Co., Ltd.

Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut

Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose

Hydraulic pipe cutting and beveling machine

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
