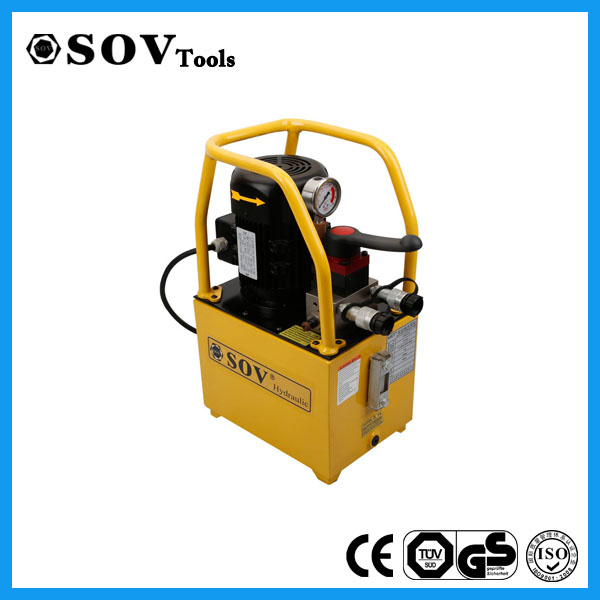

70 MPa Hydraulic Electric Pump

Prod Model:	SOV-DSB Series
Max. Working Pressure:	70MPa
Type:	Sing Acting / Double Acting
Direction Valve:	Manual/Solenoid
Oil Tank Capacity:	10-100L
Motor Power:	0.55-7.5kw
Flow:	0.4-6L/Min
Voltage:	220V/380V
Frequency:	50Hz
Certificate:	Ce, ISO9001:2008
Product Name:	70 MPa Hydraulic Electric Pump
Power:	Hydraulic
Structure:	Piston Pump

Product Description

                                                              70 Mpa Hydraulic Electric Pump

Product Description

Electric hydraulic pumps are pray coating, anti-corrosion, pollution-resistant, durable. Lightweight and compact design make it easy to be moved. Double speed pump design, with the high flow in low pressure. The actuator can be fast moved on no-load status.Internal high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibrate the working pressure and avoid the over load. Motor starter has the function of preventing overload, overheat and leakage. The pump can be matched with both double acting and single acting cylinders. Choosing the solenoid valve electric hydraulic pump, remote operation can be realized.

Technical Parameters

Model No.	Working Pressure (Bar)	Pump Type	Valve Type	Oil Tank Capacity (L)	Motor  Power (kW)	Flow  (L/min)	Voltage (V)	Frequency (Hz)	Weight (kg)	Size (mm)
SOV-SSB-55	700	Double acting	Manual	10	0.55	0.4	220	50	35	430×285×430
SOV-SDB-55	700	Double acting	Soleniod	10	0.55	0.4	220	50	38	430×340×430
SOV-DSB-75	700	Single acting	Manual	16	0.75	1	380	50	40	440x290x580
SOV-SSB-75	700	Double acting	Manual	16	0.75	1	380	50	40	440x290x580
SOV-SDB-75	700	Double acting	Soleniod	16	0.75	1	380	50	45	500x290x580
SOV-DSB-110	700	Single acting	Manual	16	1.1	1	220	50	40	440x290x580
SOV-SSB-110	700	Double acting	Manual	16	1.1	1	220	50	45	440x290x580
SOV-SDB-110	700	Double acting	Soleniod	16	1.1	1	220	50	40	500x290x580
SOV-DSB-220	700	Single acting	Manual	32	2.2	2	380	50	90	500x350x775
SOV-SSB-220	700	Double acting	Manual	32	2.2	2	380	50	90	500x350x775
SOV-SDB-220	700	Double acting	Soleniod	32	2.2	2	380	50	95	500x350x775
SOV-SSB-550	700	Double acting	Manual	70	5.5	4.5	380	50	160	690x480x950
SOV-SDB-550	700	Double acting	Soleniod	70	5.5	4.5	380	50	160	690x480x950
SOV-SSB-750	700	Double acting	Manual	100	7.5	6	380	50	180	800x520x1050
SOV-SDB-750	700	Double acting	Soleniod	100	7.5	6	380	50	180	800x520x1050

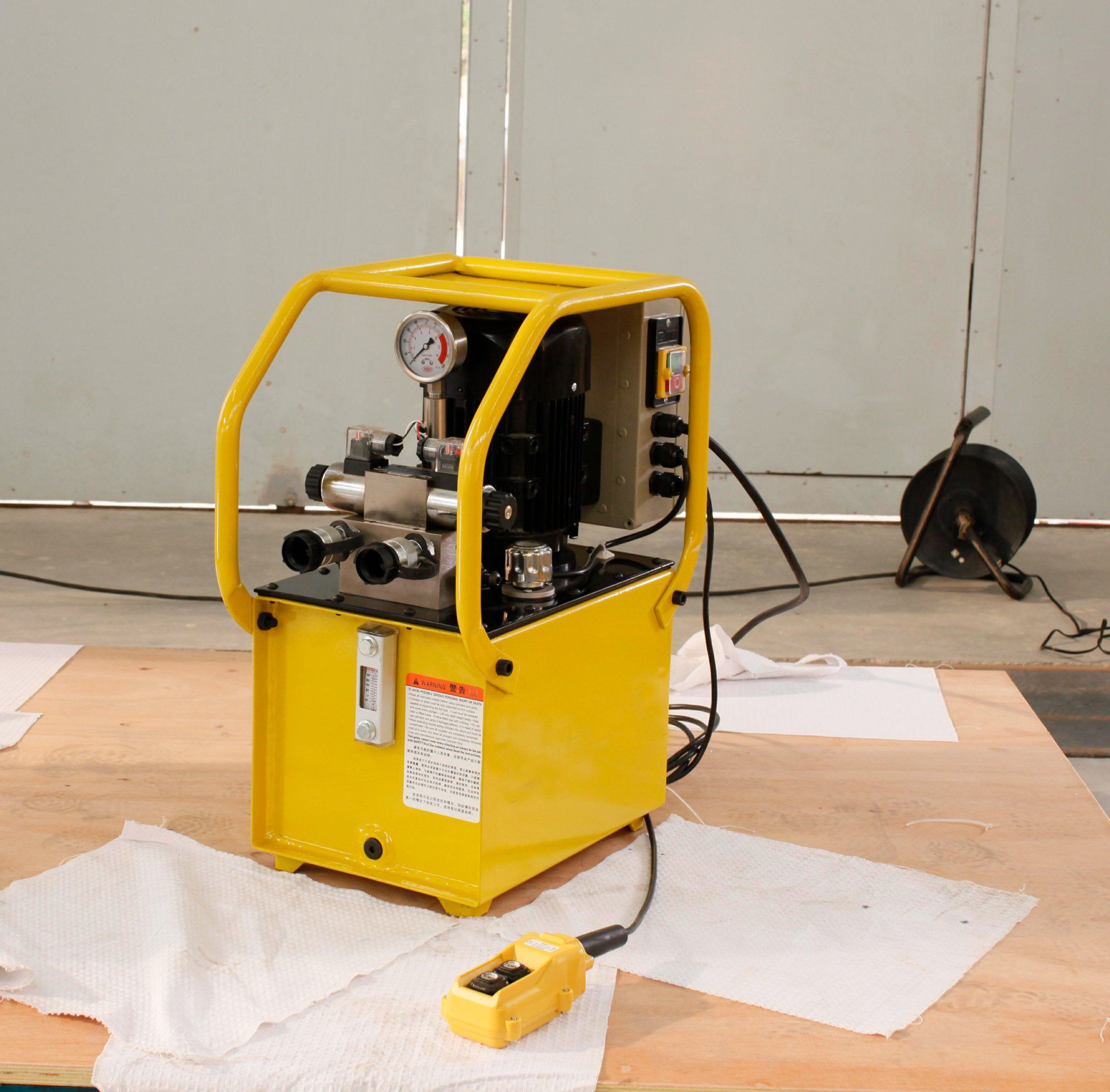

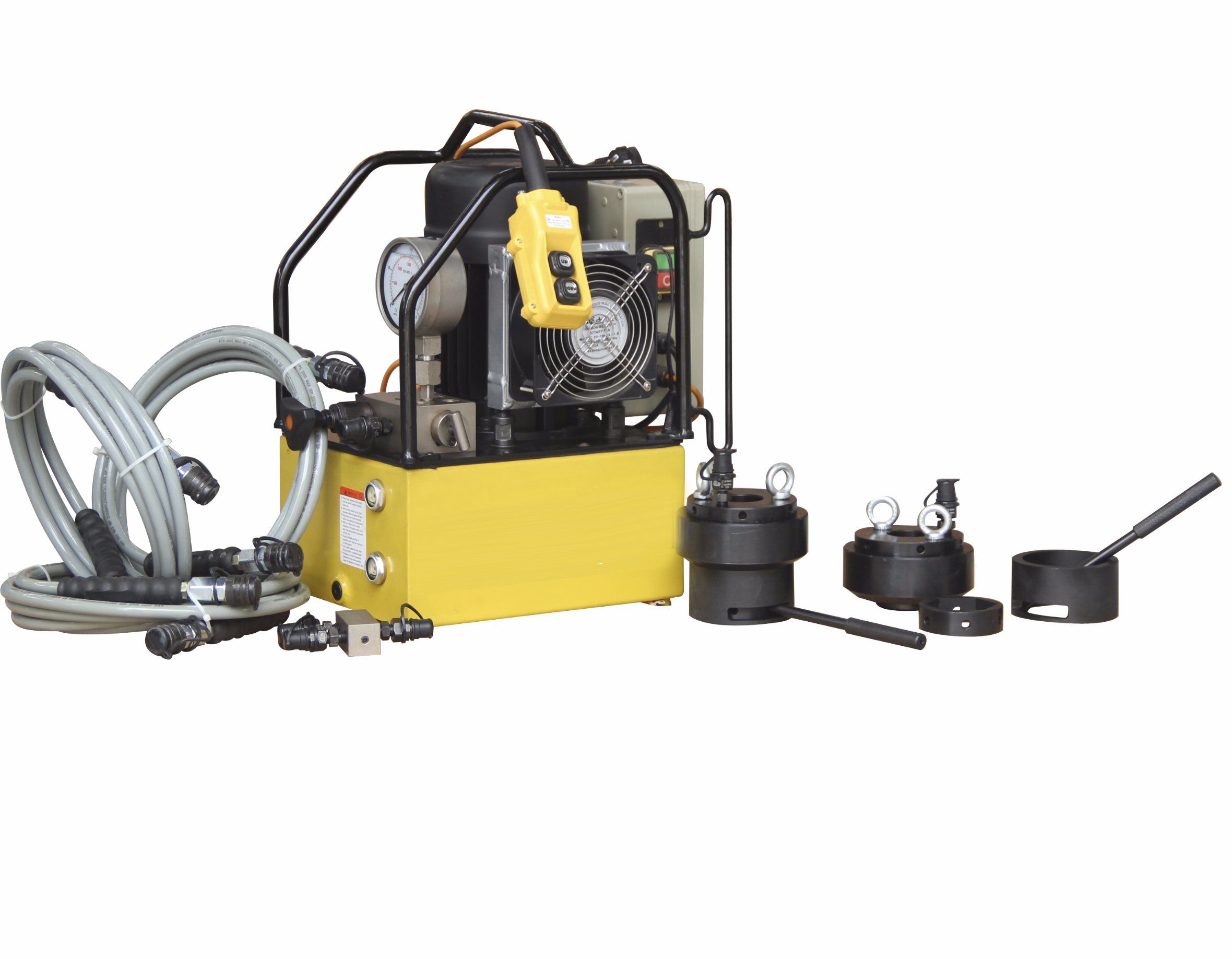

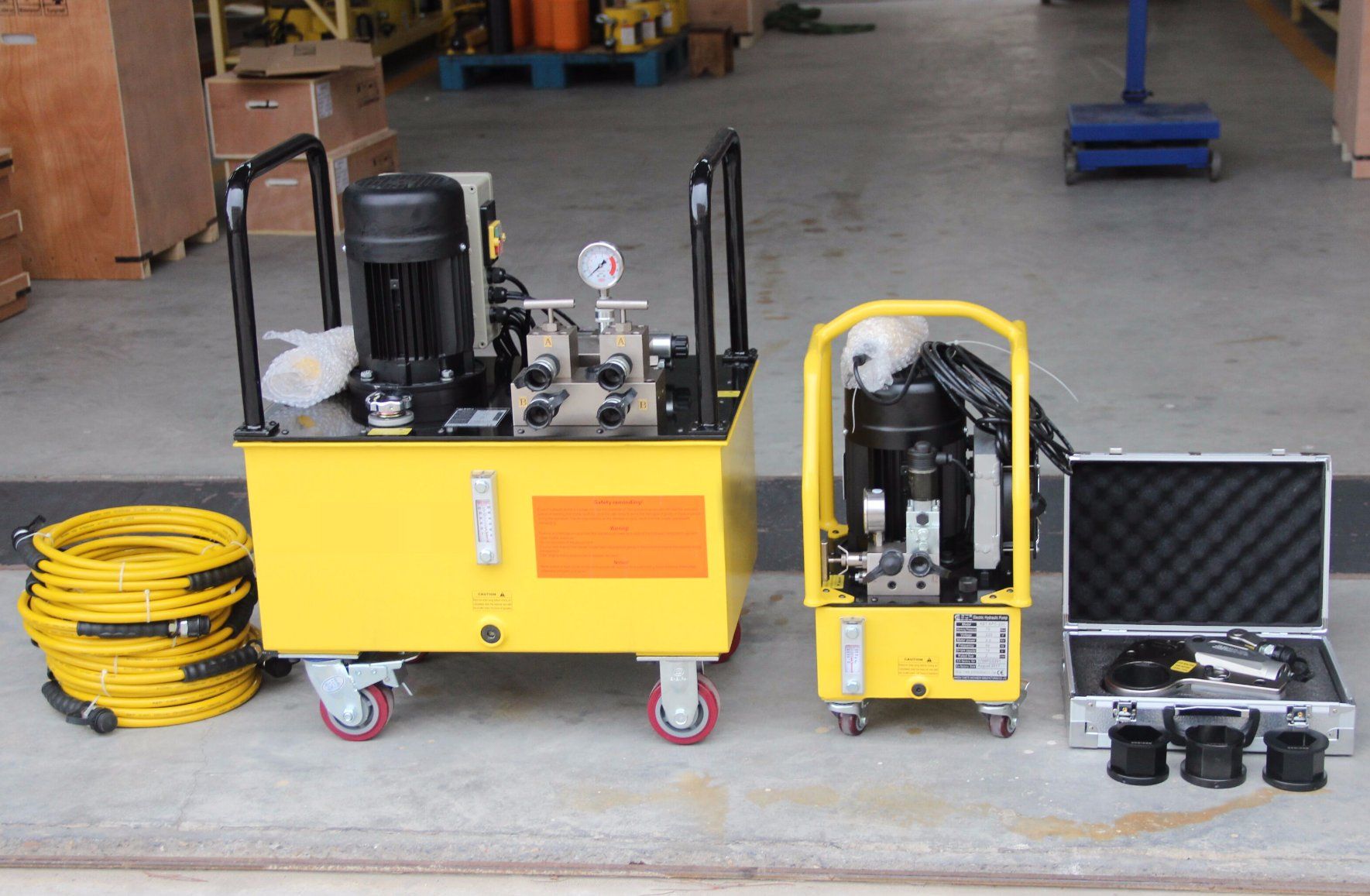

Photos





Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

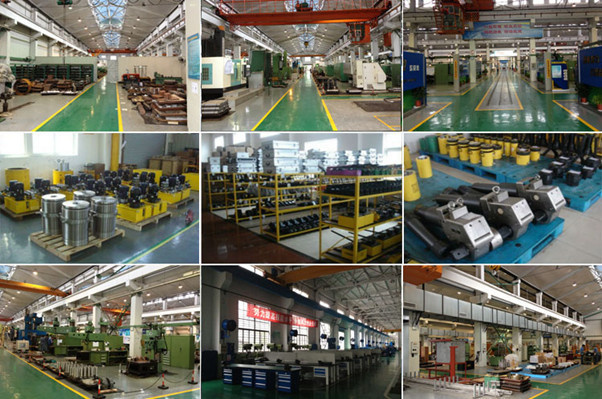

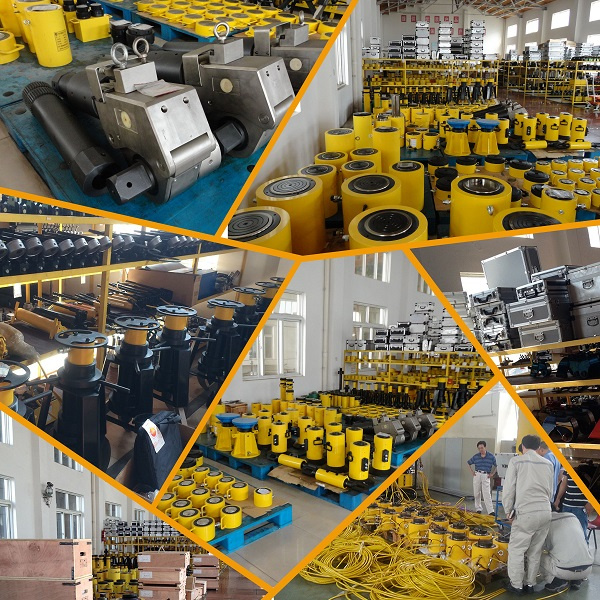

Company Information
SOV is a professional manufacturing in hydraulic tools and products, we have been in the industry for more than 20 years.Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.


Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
