| Prod Model: |
D1502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Carbide Material Step Drill Bits |
| Grain: |
0.4um |
| Precision: |
High Precision |
| HRC: |
45-65 |
| Hra: |
92 |
| Flute Diameter: |
1-20mm |
| Cutting Length: |
4-50mm |
| Over Lengtn: |
50-100mm |
| Brand: |
Jinoo |
Product Description

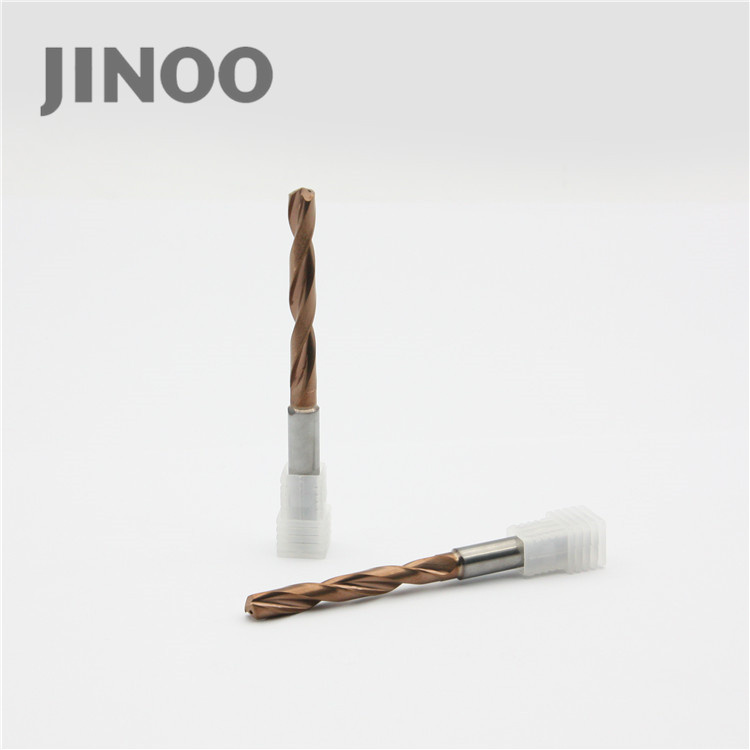

Solid carbide 2 flutes 1/8 inch diameter drill bits for drilling non-hardened steel
Product feature introduced:
Name: Cutting tool
Rang of application: Side face, step shoulder, straight slot
Item: 35, 45, 30 degree spiral angle, D range: D12-0.20 12<-0.030
. Working hardness: HRC45-65
. Materials: YG25 100% Raw Material
. Composition: 89% Carbide, 10% Co, 1% other material
. Micro grain: 0.4um
. Hardness of Rod Material (HRA): 91-93
. Bending strength: 2500-2800
. Types: Drill bits for drilling metal
. Flute No.: 2/3flutes
. Free Service: OEM
. Applications: Good wear resistance, suitable for alloy, cast iron, copper, common mould steel
Advantage of drill bits for drilling metal
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC drilling machine and dry-type process machining.
3. The shank can be customized according to customers' requirements.
4. We supply different type of drills bits, such as twist drills, center drills, spot drills, coolant drill bits.
Workshop
All tools are made by Walter from Germany. ANCA from Australia, guarantee high quality and good performance.
Hot sales CNC coated solid carbide end mill tungsten carbide end mill
Every end mill is inspected by Mitutoyo measuring and inspecting machine.

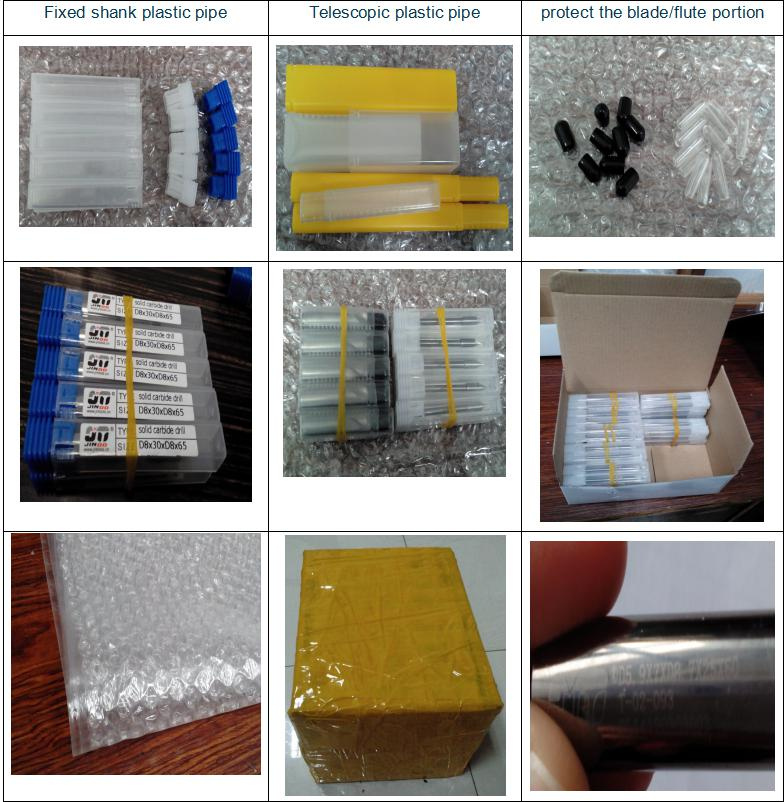

4. Package and Payment
1> White parts for protect the flute of cutters
2> Laser brand and demensions on the body of cutters, print labels.
3>1. One plastic pipe pack one piece, 10 pieces per group.
4> Sealed with air bubble wrap, pack into bigger carton. Other packing will be accept according to your needs.
5>Delivery time: 1-3 weeks after the payment confirmed
About JINOO Company
Changzhou Jingnuo Tools Co., Ltd
>> Established in 2006, the professional manufacturer in solid carbide tools in high precision and high quality.
>> Provide a variety of molding cutters for the companies who production of automobile, motorcycle engine, diesel engine, carburetor, compressor, mold industry and other manufacturers.
>> Mainly produce solid carbide: Drills, milling cutters, reamers, reamer drills, boring tools, drilling tools, and we also can be designed a variety of strange tools for customers.
Products are mainly supporting the processing center, CNC machine tools and other precision machine tools.
Our Service
>> Trade term: EXW HS Code: 8207509000
>> Payment term: T/T (Bank tranfer), Western Union, PayPal.
>> Customized or special cutters are welcome
>> OEM orders are welcome
FAQ
Note:
1. All the end mills, drills and reamers should be used depending on there workpieces, then it may be play the biggest roles.
2. Cutting tools are sharp, when usage it please careful.
If you need solid carbide 2 flutes 1/8 inch diameter drill bits for drilling non-hardened steel please contact me
Tell: 0519-83431629
Phone: +86-1505198014
We are hot welcomed to visit our factory in Jiangsu China.
| Item Code | D1 | L1 | D | L |
| D1102-0330 | 3.3 | 28 | 6 | 66 |
| D1102-0340 | 3.4 | 28 | 6 | 66 |
| D1102-0350 | 3.5 | 28 | 6 | 66 |
| D1102-0360 | 3.6 | 28 | 6 | 66 |
| D1102-0370 | 3.7 | 28 | 6 | 66 |
| D1102-0380 | 3.8 | 36 | 6 | 74 |
| D1102-0390 | 3.9 | 36 | 6 | 74 |
| D1102-0400 | 4.0 | 36 | 6 | 74 |
| D1102-0410 | 4.1 | 36 | 6 | 74 |
| D1102-0420 | 4.2 | 36 | 6 | 74 |
| D1102-0430 | 4.3 | 36 | 6 | 74 |
| D1102-0440 | 4.4 | 36 | 6 | 74 |
| D1102-0450 | 4.5 | 36 | 6 | 74 |
| D1102-0460 | 4.6 | 36 | 6 | 74 |
| D1102-0470 | 4.7 | 36 | 6 | 74 |
| D1102-0480 | 4.8 | 44 | 6 | 82 |
| D1102-0490 | 4.9 | 44 | 6 | 82 |
| D1102-0500 | 5.0 | 44 | 6 | 82 |
| D1102-0510 | 5.1 | 44 | 6 | 82 |
| D1102-0520 | 5.2 | 44 | 6 | 82 |
| D1102-0530 | 5.3 | 44 | 6 | 82 |
| D1102-0540 | 5.4 | 44 | 6 | 82 |
| D1102-0550 | 5.5 | 44 | 6 | 82 |
| D1102-0560 | 5.6 | 44 | 6 | 82 |
| D1102-0570 | 5.7 | 44 | 6 | 82 |
| D1102-0580 | 5.8 | 44 | 6 | 82 |
| D1102-0590 | 5.9 | 44 | 6 | 82 |
| D1102-0600 | 6.0 | 44 | 6 | 82 |
| D1102-0610 | 6.1 | 53 | 8 | 91 |
| D1102-0620 | 6.2 | 53 | 8 | 91 |
| D1102-0630 | 6.3 | 53 | 8 | 91 |
| D1102-0640 | 6.4 | 53 | 8 | 91 |
| D1102-0650 | 6.5 | 53 | 8 | 91 |
| D1102-0660 | 6.6 | 53 | 8 | 91 |
| D1102-0670 | 6.7 | 53 | 8 | 91 |
| D1102-0680 | 6.8 | 53 | 8 | 91 |
| D1102-0690 | 6.9 | 53 | 8 | 91 |
| D1102-0700 | 7.0 | 53 | 8 | 91 |
| D1102-0710 | 7.1 | 53 | 8 | 91 |
| D1102-0720 | 7.2 | 53 | 8 | 91 |
| D1102-0730 | 7.3 | 53 | 8 | 91 |
| D1102-0740 | 7.4 | 53 | 8 | 91 |
| D1102-0750 | 7.5 | 53 | 8 | 91 |
| D1102-0760 | 7.6 | 53 | 8 | 91 |
| D1102-0770 | 7.7 | 53 | 8 | 91 |
| D1102-0780 | 7.8 | 53 | 8 | 91 |
| D1102-0790 | 7.9 | 53 | 8 | 91 |
| D1102-0800 | 8.0 | 53 | 8 | 91 |
| D1102-0810 | 8.1 | 61 | 10 | 103 |
| D1102-0820 | 8.2 | 61 | 10 | 103 |
| D1102-0830 | 8.3 | 61 | 10 | 103 |
| D1102-0840 | 8.4 | 61 | 10 | 103 |
| D1102-0850 | 8.5 | 61 | 10 | 103 |
| D1102-0860 | 8.6 | 61 | 10 | 103 |
| D1102-0870 | 8.7 | 61 | 10 | 103 |
| D1102-0880 | 8.8 | 61 | 10 | 103 |
| D1102-0890 | 8.9 | 61 | 10 | 103 |
| D1102-0900 | 9.0 | 61 | 10 | 103 |
| D1102-0910 | 9.1 | 61 | 10 | 103 |
| D1102-0920 | 9.2 | 61 | 10 | 103 |
| D1102-0930 | 9.3 | 61 | 10 | 103 |
| D1102-0940 | 9.4 | 61 | 10 | 103 |
| D1102-0950 | 9.5 | 61 | 10 | 103 |
| D1102-0960 | 9.6 | 61 | 10 | 103 |
| D1102-0970 | 9.7 | 61 | 10 | 103 |
| D1102-0980 | 9.8 | 61 | 10 | 103 |
| D1102-0990 | 9.9 | 61 | 10 | 103 |
| D1102-1000 | 10.0 | 61 | 10 | 103 |
| D1102-1010 | 10.1 | 71 | 12 | 118 |
| D1102-1020 | 10.2 | 71 | 12 | 118 |
| D1102-1030 | 10.3 | 71 | 12 | 118 |
| D1102-1040 | 10.4 | 71 | 12 | 118 |
| D1102-1050 | 10.5 | 71 | 12 | 118 |
| D1102-1060 | 10.6 | 71 | 12 | 118 |
| D1102-1070 | 10.7 | 71 | 12 | 118 |
| D1102-1080 | 10.8 | 71 | 12 | 118 |
| D1102-1090 | 10.9 | 71 | 12 | 118 |
| D1102-1100 | 11.0 | 71 | 12 | 118 |
| D1102-1110 | 11.1 | 71 | 12 | 118 |
| D1102-1120 | 11.2 | 71 | 12 | 118 |
| D1102-1130 | 11.3 | 71 | 12 | 118 |
| D1102-1140 | 11.4 | 71 | 12 | 118 |
| D1102-1150 | 11.5 | 71 | 12 | 118 |
| D1102-1160 | 11.6 | 71 | 12 | 118 |
| D1102-1170 | 11.7 | 71 | 12 | 118 |
| D1102-1180 | 11.8 | 71 | 12 | 118 |
| D1102-1190 | 11.9 | 71 | 12 | 118 |
| D1102-1200 | 12.0 | 71 | 12 | 118 |
| D1102-1210 | 12.1 | 77 | 14 | 124 |
| D1102-1220 | 12.2 | 77 | 14 | 124 |
| D1102-1230 | 12.3 | 77 | 14 | 124 |
| D1102-1240 | 12.4 | 77 | 14 | 124 |
| D1102-1250 | 12.5 | 77 | 14 | 124 |
| D1102-1260 | 12.6 | 77 | 14 | 124 |
| D1102-1270 | 12.7 | 77 | 14 | 124 |
| D1102-1280 | 12.8 | 77 | 14 | 124 |
| D1102-1290 | 12.9 | 77 | 14 | 124 |
| D1102-1300 | 13.0 | 77 | 14 | 124 |
| D1102-1310 | 13.1 | 77 | 14 | 124 |
| D1102-1320 | 13.2 | 77 | 14 | 124 |
| D1102-1330 | 13.3 | 77 | 14 | 124 |
| D1102-1340 | 13.4 | 77 | 14 | 124 |
| D1102-1350 | 13.5 | 77 | 14 | 124 |
| D1102-1360 | 13.6 | 77 | 14 | 124 |
| D1102-1370 | 13.7 | 77 | 14 | 124 |
| D1102-1380 | 13.8 | 77 | 14 | 124 |
| D1102-1390 | 13.9 | 77 | 14 | 124 |
| D1102-1400 | 14.0 | 77 | 14 | 124 |
| D1102-1410 | 14.1 | 83 | 16 | 133 |
| D1102-1420 | 14.2 | 83 | 16 | 133 |
| D1102-1430 | 14.3 | 83 | 16 | 133 |
| D1102-1440 | 14.4 | 83 | 16 | 133 |
| D1102-1450 | 14.5 | 83 | 16 | 133 |
| D1102-1460 | 14.6 | 83 | 16 | 133 |
| D1102-1470 | 14.7 | 83 | 16 | 133 |
| D1102-1480 | 14.8 | 83 | 16 | 133 |
| D1102-1490 | 14.9 | 83 | 16 | 133 |
| D1102-1500 | 15.0 | 83 | 16 | 133 |
| D1102-1510 | 15.1 | 83 | 16 | 133 |
| D1102-1520 | 15.2 | 83 | 16 | 133 |
| D1102-1530 | 15.3 | 83 | 16 | 133 |
| D1102-1540 | 15.4 | 83 | 16 | 133 |
| D1102-1550 | 15.5 | 83 | 16 | 133 |
| D1102-1560 | 15.6 | 83 | 16 | 133 |
| D1102-1570 | 15.7 | 83 | 16 | 133 |
| D1102-1580 | 15.8 | 83 | 16 | 133 |
| D1102-1590 | 15.9 | 83 | 16 | 133 |
| D1102-1600 | 16.0 | 83 | 16 | 133 |
Our factory is located at Xixiashu Town outside the West Gate of the Changzhou Wall to the Changzhou city, 5km distant to the airport to the Changzhou city, 3km distant to express highway between Shanghai city and Nanjing city and has the traffic facilities.
Our factory has imported several such as 5-axe numerical control grinder, from Walter of Germany. Use international high quality material. The quality of cutting tool reaches to international advanced level. The factory will provide the customer with high precision standard and nonstandard cutters. The solid carbide alloy cutlery, such as the drills, the milling cutters, the reamers, the boring cutters and the cuttersti process the holes are manufactured in the factory. And all sorts of the cutters whose mmanufacturing processes are very difficult. Can be designed and manufactured, the stainless steel wire. The cutters made in our factory are used to process the alloy steel, the stainless steel, the cast steel, the harden steel, ya suo ji, the nonferrous metals^etc.
The factory which manufactures the automobiles, the motorcycle engines, the carbuators and the mould industry are supplied with all sorts of the cutters made by our factory. The cutters made in our factory are mainly used in the processing centers to process the numerical control machine tools, the special machine and the high quality machine tool.
