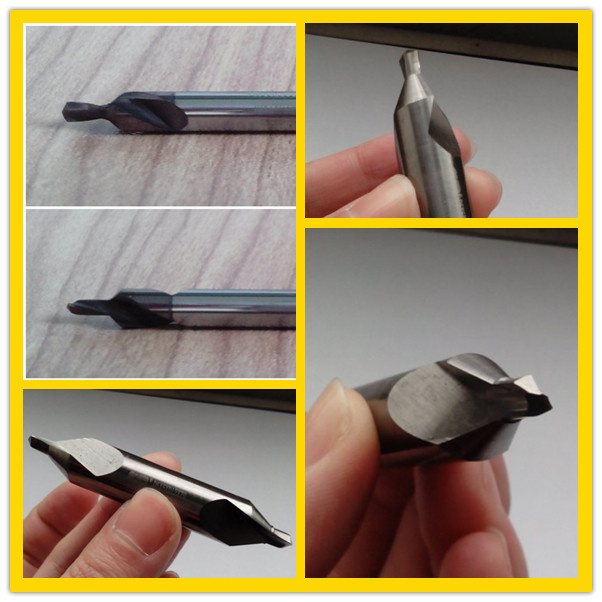

Solid Carbide 2 Flutes Micro Center Drill for Hardened Material

Prod Model:	D1403
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process Usage:	Metal-Cutting CNC Machine Tools
Performance Classification:	High-End CNC Machine Tools
Numerical Control:	Nc
Movement Method:	Point to Point Control
Control Method:	Semi-Closed Loop Control
Helix Angle:	Straight Flute
Application:	Stainless Steel
Grain Size:	0.5um
Tungsten Carbide:	90%
Diameter:	6-20mm

Product Description

Jingnuo D1403 drill is made from solid carbide and has been optimized for steel, stainless steel and aluminium. It provides high-speed and easy drilling. It is highly suitable for traditional drilling, inclined surfaces, chamfered holes, cross holes, traditional stack drilling and convex/concave surfaces.

It provides low cutting forces. This minimizes problems related to weak fixtures, parts with thin walls as well as cutting edge loads. It provides outstanding evacuation of chips. It also provides higher achievable cutting data in both short and long chipping materials. The combination of these features ensures reliable and high-performance drilling at high penetration rates. The standard drill in the point hole.

D1403 provides superior and dependable performance and lower cost per hole. It provides a long tool service life and wear formation is controlled.

The main advantage
(1)Good quality
(2)Super and stable raw material
(3)Super coating
(4)High reputation
(5)Reasonable price
(6)Short delivery time
Advantage
Carbide deep hole drills
1. Sharp cutting matched with the good hardness
2. Two relief angle: Arc & Flat relief angle, Arc relief angle makes the a better wear-resisting of the tool. Flat relief angle makes the tools more sharper and more powerful
3. Coating: ALTIN black coating, advanced technology and equipment of Japan; High temperature oxidation resistance (800° C), Life is longer than others about 20%
Equipment Show
1. We have 10 cnc machines. Walter, ANCA, strong stability and high precision. The technical from Germany
2. Anca: Small diameter cutter
3. Walter: Special cutter
4. Advanced equipment, more efficiency, save time and cost.
5. Clean working environment, better working mood, high quality products
6. Test --with three test to confirm the quality.

Package— — — — — — — — — — — JINOO— — — — — — — — — — — —
(1)One plastic pipe pack one piece, 10 pieces per group.

(2)Use the air bubble paper to encase the plastic paper.

(3)Put the goods encased with air bubble paper into the carton.


(4)Other packing will be accepted according to your needs.

Why choose us:
1) Demand--Custom demand are welcomed
2) Design--Design and Development Team to meet your individual demands
3) Molds--Various molds existed
4) Production--Assembly line production, high standard and strict requirements
5) Products--More than 2000 products are available
6) Package--Tailor-made package to cater for your personalize taste
7) Payment--Various options to make payment more convenient
8) Logistics--Various cooperated express to reduce on your freight cost.
Customer Service--E-mail your suggestions or complaints, and we will handle them ASAP

Performance Solid Carbide Drills
Dia. (MM)	Flute Length (MM)	Shank Dia. (MM)	Shank Length (MM)	OAL (MM)
3.3	20	4	28	54
3.5	20	4	28	54
3.7	20	4	28	54
3.8	24	4	28	58
3.9	24	4	28	58
4.0	24	4	28	58
4.2	24	6	36	66
4.3	24	6	36	66
4.5	24	6	36	66
4.6	24	6	36	66
4.9	28	6	36	66
5.0	28	6	36	66
5.1	28	6	36	66
5.3	28	6	36	66
5.5	28	6	36	66
5.8	28	6	36	66
5.9	28	6	36	66
6.0	28	6	36	66
6.5	34	8	36	79
6.7	34	8	36	79
6.8	34	8	36	79
7.0	34	8	36	79
7.3	41	8	36	79
7.4	41	8	36	79
7.5	41	8	36	79
7.8	41	8	36	79
7.9	41	8	36	79
8.0	41	8	36	79
8.1	47	10	40	89
8.2	47	10	40	89
8.3	47	10	40	89
8.4	47	10	40	89
8.5	47	10	40	89
8.6	47	10	40	89
8.7	47	10	40	89
8.8	47	10	40	89
8.9	47	10	40	89
9.0	47	10	40	89
9.3	47	10	40	89
9.5	47	10	40	89
9.7	47	10	40	89
9.8	47	10	40	89
10.0	47	10	40	89
10.3	55	12	45	102
10.4	55	12	45	102
10.5	55	12	45	102
10.6	55	12	45	102
10.8	55	12	45	102
11.0	55	12	45	102
11.1	55	12	45	102
11.2	55	12	45	102
11.5	55	12	45	102
11.8	55	12	45	102
11.9	55	12	45	102
12.0	55	12	45	102
12.1	60	14	45	107
12.2	60	14	45	107
12.5	60	14	45	107
12.6	60	14	45	107
13.0	60	14	45	107
13.1	60	14	45	107
13.5	60	14	45	107
14.0	60	14	45	107
14.5	65	16	48	115
14.6	65	16	48	115
15.0	65	16	48	115
15.2	65	16	48	115
15.5	65	16	48	115
15.6	65	16	48	115
16.0	65	16	48	115
16.5	73	18	48	123
16.8	73	18	48	123
17.0	73	18	48	123
17.5	73	18	48	123
17.8	73	18	48	123
18.0	73	18	48	123
18.5	79	20	50	131
18.8	79	20	50	131
19.0	79	20	50	131
19.5	79	20	50	131
19.8	79	20	50	131
20.0	79	20	50	131
20.5	93	25	56	151
21.0	93	25	56	151
21.5	93	25	56	151
22.0	93	25	56	151
22.5	96	25	56	153
23.0	96	25	56	153
23.5	96	25	56	153
24.0	96	25	56	153
24.5	96	25	56	153
25.0	96	25	56	153
