Prod Model: |
JN-D1403 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Performance Classification: |
High-End CNC Machine Tools |
Numerical Control: |
Nc |
Movement Method: |
Point to Point Control |
Control Method: |
Closed-Loop Control |
Item: |
Carbide Drill Bit |
Precision: |
High Precision |
Automatic Grade: |
Auto |
Usage: |
General Purpose/High Speed Cutting |
Suitable For: |
Copper, Cast Iron, Carbon Steel, Mould Steel |
Product Description

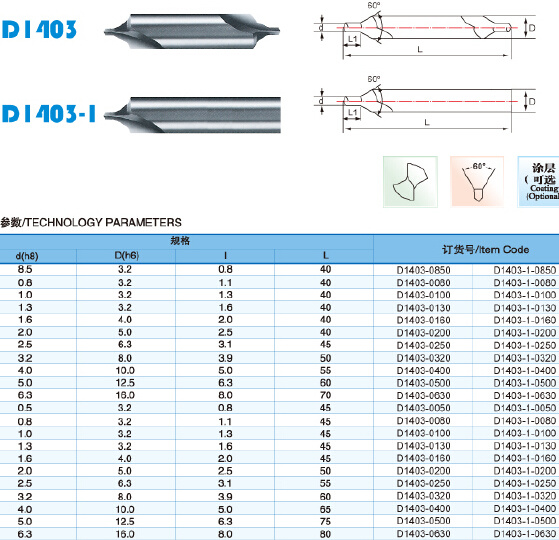

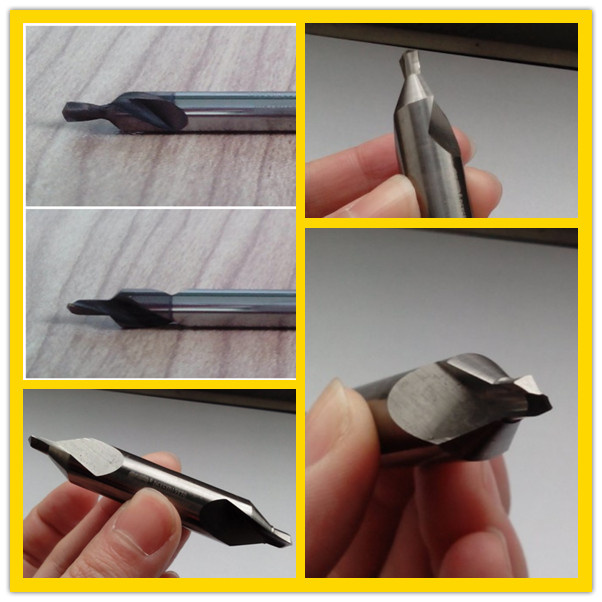

solid carbide center drills for St37-2Specification 1> HRA:91.8-92.4
2> TRS:>3800N/mm2
3> CO:8%, WC:92%
4> Grain size: 0.3-1.0um
Application
- Achievable hole tolerance H8-H9
- Clamp with high precision chucks only
- Drill lengths: 3-12 x drill diameter
- A wide range of workpiece materials
- Conventional drilling, cross holes, angled faces
- Automotive: crankshafts, engine blocks, cylinder hesds
JN-D012 provides the high stability essential for deep holes, with high speed and efficiency.
- Accurate deep holes to depths up to 12 x drill diameter, without pecking
- High speeds and feeds allow greater productivity to reduce cost per hole
- Fast and efficient chip evacuation reduces machine downtime and increases tool life
- Internal coolant holes deliver coolant directly to the tip of the drill even at deep drilling depths
Why do you choose our JINOO Brand ball nose end mill tools ?
1.Super raw material
Form China
GESAC(GU20,GU20F,GU25UF) | from | xiame China |
CB(WF25,K200,K100,TF25,WF03,WF30) | from | taiwan China |
Zigong(ZK30,ZK40) | from | Zigong China |
Zhu zhou | from | Zhuzhou China |
Nanchang | from | Nanchang China |
From World
Gurhing(K44UF,DK460UF) | from | Germany |
Kennameatl | from | American |
CERATIZIT(CTU08L,TSF22,TSF44) | from | Switzerland |
Teagutec | from | Korean |
Please Select raw material according to the HRC of the work piece !
HRC | Meterial | MG Grain Size(μm) | CO(%) | Flexural Strength(N/mm²) |
45° | ZK30 | 0.7 | 10 | 3320 |
50° | WF25 CB | 0.6 | 10 | 4000 |
55° | K44UF Gurhing | 0.5 | 12 | 4300 |
65° | CTU08L CERATIZIT | 0.4 | 10 | 3700 |
Note:
JINOO Coating solide carbide end mill was used 100% original tungsten,no recycle,so this kind of coating solide carbide end mill tool has high precision and high quality!
2.Super coating
Item | AlTiN | TiAIN | TiSiN | HELICA |
Hardness(HV) | 3500 | 3300 | 3500 | 3000 |
Thickness(μM) | 2.5-3 | 2.5-3 | 3 | 0.5-4 |
Oxidation Temp(°) | 900 | 800 | 1500 | 1100 |
Friction Coffients | 0.4 | 0.4 | 0.45 | 0.25 |
Color | Anthracite | Purple-gray | Bronze | copper |
3.Advanced CNC grinding Equipment
We imported many sets of advanced CNC griding machines from Germany, Australia, Swit -zerland. Such as Walter Power ,Walter Micro,ANCA,RollomaTic,etc.
so ,we can guarantee the high precision and good performance of our products.
4.Wide Application
Tools are widely used in many fields, such as outomobile, military manufacturing, mould development, electron and medical instrument, horologe, aerospace,etc.

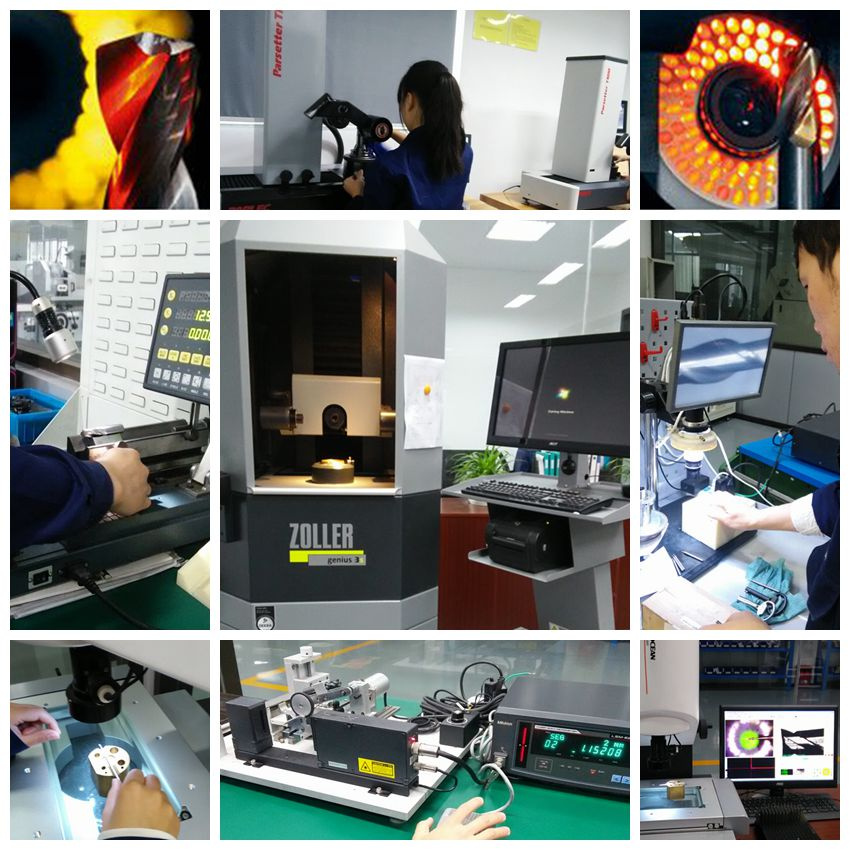

5.Quality Assurance(QA)
we have strict quality control system.
- Advanced testing equipments
- Each process is detected
- Each piece of tool is checked
- Guarantee the tolerance 0-0.01mm Or accroding to customer's requirement
- Check Helix anlge and finished surface
Solid carbide twist drills provide faster cutting rates, longer tool life, better positional and dimensional accuracy and improved surface finish.
Shorter cycle times and tighter tolerances translate into maximum machine utilizations, better part quality and optomum hole making cost savings.
Special carbide Twist drills can be designed for any workpiece material and application, including straight or spiral flute, internal coolant, stepped and PVD coated. Jingnuo's special tool division manufaturers solid carbide cutting tools for the automotive, aerospace, woodwork and general engineering industries. Extremely fast delivery times are possible thanks to in-house CNC grinding and PVD coating facilities. Package &Shipment Packaging Details | 1.1piece in a plastic pipe ,10pieces per group with air bubble paper in a carton for JINOO 4flutes tungsten carbide end mill tool . 2.other packaging needs will be ok. |
Delivery Detail: | 7-10 Working days afterpayment(if the product in stock will dispatch at once) |
Payment Ways:T/T, Western Union, Paypal, Escrow(Choose your convenient way)
Shipment Ways:DHL, UPS, FEDEX, TNT, EMS,the port is shanghai ,ningbo ,shenzhen etc
(choose your convenient way)
Our service>> Trade term: EXW HS Code: 8207509000>> Payment term: T/T (Bank tranfer) , Western Union, PayPal.
>> Customized or special cutters are welcome
>> OEM orders are welcome
Any further questions, pls feel free to tell me. thanks !!!
Contact Me
Contact: Cherry Lv
Tel :+86-0519-69887533 ext.56533
Fax :+86-0519-83435899
Mobile:+86 139-5122-9576
Website:www.jntool.cn
If you need our quotation pls send e-mail to me ,I will reply to you asap.
We would like to take this opportunity to establish business relationship with you.
Waiting for you...
We are hot welcomed to visit our factory in Jiangsu China.
Our factory is located at Xixiashu Town outside the West Gate of the Changzhou Wall to the Changzhou city, 5km distant to the airport to the Changzhou city, 3km distant to express highway between Shanghai city and Nanjing city and has the traffic facilities.
Our factory has imported several such as 5-axe numerical control grinder, from Walter of Germany. Use international high quality material. The quality of cutting tool reaches to international advanced level. The factory will provide the customer with high precision standard and nonstandard cutters. The solid carbide alloy cutlery, such as the drills, the milling cutters, the reamers, the boring cutters and the cuttersti process the holes are manufactured in the factory. And all sorts of the cutters whose mmanufacturing processes are very difficult. Can be designed and manufactured, the stainless steel wire. The cutters made in our factory are used to process the alloy steel, the stainless steel, the cast steel, the harden steel, ya suo ji, the nonferrous metals^etc.
The factory which manufactures the automobiles, the motorcycle engines, the carbuators and the mould industry are supplied with all sorts of the cutters made by our factory. The cutters made in our factory are mainly used in the processing centers to process the numerical control machine tools, the special machine and the high quality machine tool.
